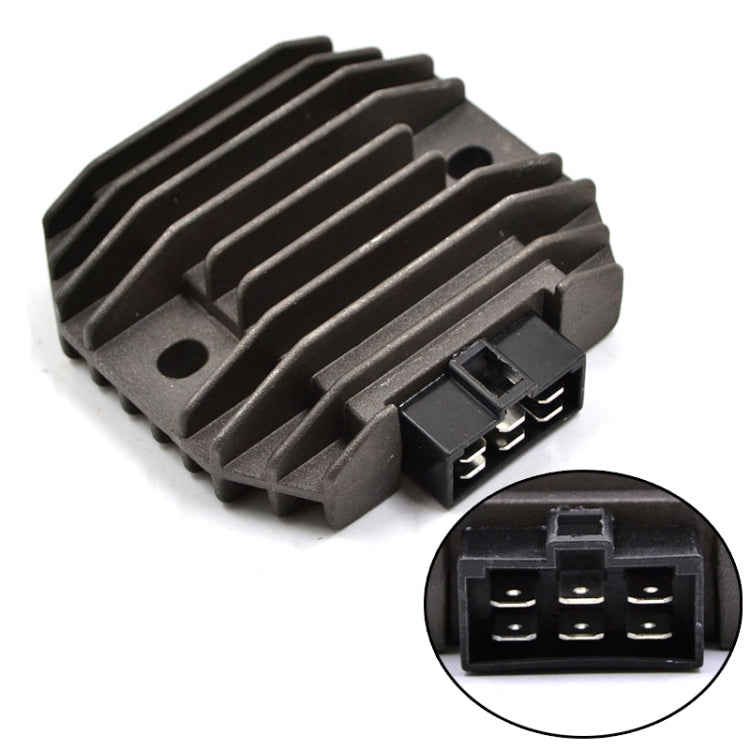

2013A.0 Motorcycle Rectifier M70121 M97348 21066-2056 21066-2070(Black Plug)
2013A.0 Motorcycle Rectifier M70121 M97348 21066-2056 21066-2070(Black Plug)
🖤🔴 Add 2+ items to your cart for an early Black Friday discount! Hurry, stock is almost gone! 🔴🖤
Couldn't load pickup availability
Shipping Guarantee
Shipping Guarantee
FREE SHIPPING on all UK orders. Fully Insured.
Handling time 1 - 3 working days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)
Transit time 5 - 10 working days.
Return Guarantee
Return Guarantee
For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.
DOA Guarantee
DOA Guarantee
If your item arrives damaged, please contact us within 7 days and provide clear and valid proof. Buy2fix will make compensation based on the damage situation.
Missing/Wrong Items Guarantee
Missing/Wrong Items Guarantee
If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. Buy2fix will make compensation based on the damage situation.
1. Output current: 20A
2. Output voltage: 14.5V
3. Weight: 250G
Installation precautions:
1. The rectifier should be installed in a location with good ventilation and good heat dissipation. High temperature will be generated when the rectifier is working, and poor heat dissipation will damage the rectifier
2. The installation steps of the rectifier are to connect the AC input line, the positive and negative output are not connected, start the locomotive, measure the positive and negative output voltage, and when the voltage range is reasonable, plug in the positive and negative wires, and then test the positive and negative of the battery or rectifier If the voltage range is unreasonable, stop using it and give feedback. The entire installation process should be recorded and saved.
3. Note that the rectifier should be closely attached to the frame when installing it, which is good for heat conduction. You can also add thermally conductive glue between the rectifier and the frame
4. Do not press other wires between the rectifier and the frame
5. There should be a fuse protection device between the positive outlet of the rectifier and the battery to prevent the rectifier from being damaged and the voltage is too high and other electrical components are burned out
Applicable models:
For OEM: M97348 AM70121 AM126304 / 21066-2056 / 21066-2070
For JJohn ere 130 15A M70121
For John ere 160 15A M70121
For John ere 165 15A M70121
For John ere 170 15A M70121
For John ere 172 15A M70121
For John ere 175 15A M70121
For John ere 176 15A M70121
For John ere 180 15A M70121
For John ere 185 15A M70121
For John ere 186 15A M70121
For John ere 240 15A M70121
For John ere 242 15A M70121
For John ere 245 15A M70121
For Kawasaki FB 13A 18HP 460 21066-2056
For Kawasaki FB 15A 18HP 460 21066-2056
For Kawasaki FB 17A 18HP 460 21066-2056
For Kawasaki FC 17A 18HP 400 21066-2056
For Kawasaki FC 13A 18HP 450 21066-2056
For Kawasaki FC 13A 18HP 420 21066-2056
For Kawasaki FC 13A 18HP 400 21066-2056
For Kawasaki FC 13A 18HP 540 21066-2056
For Kawasaki FC 15A 18HP 400 21066-2056
For Kawasaki FC 15A 18HP 420 21066-2056
For Kawasaki FC 17A 18HP 420 21066-2056
For Kawasaki FC 15A 18HP 540 21066-2056
For Kawasaki FC 17A 18HP 540 21066-2056
For Kawasaki FC 15A 18HP 450 21066-2056
For Kawasaki FC 17A 18HP 450 21066-2056
For John ere 425 20A M97348
For John ere 445 20A M97348
For John ere F911 20A M97348
For John ere Gator 6x4 20A M97348
For Reemplazo Shin ngen SH626-12
