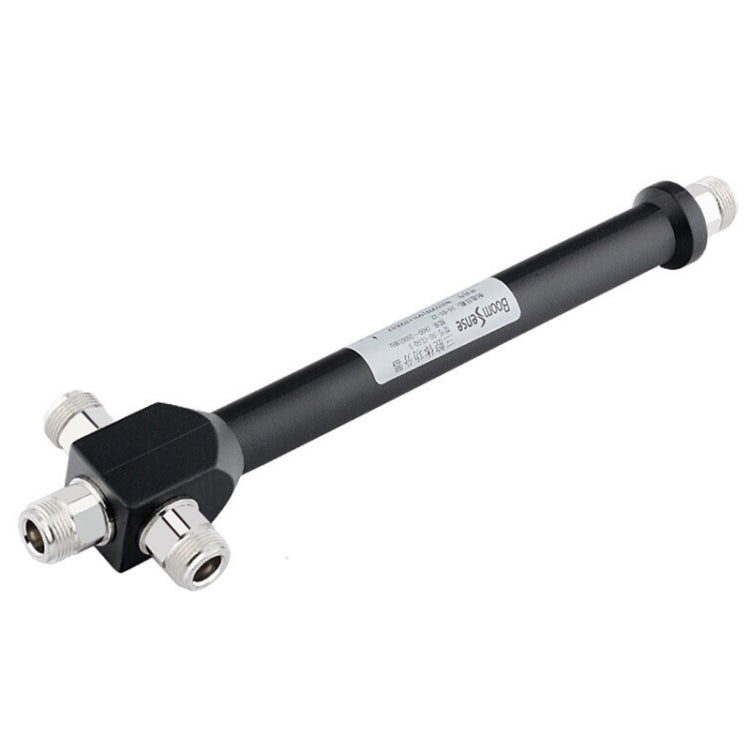

800-2500MHz 3 Way Cavity RF Power Splitter/Power Divider

Name: 800-2500MHz 3 Way Cavity RF Power Splitter/Power Divider
Brand: buy2fix
SKU: S-SPB-0202
Price: 12.49 GBP
Availability: InStock

£12.49

Sale Sold out

FREE DELIVERY on all orders.

In Stock.

Shipping Guarantee

FREE SHIPPING on all UK orders. Fully Insured.

Handling time 1 - 3 working days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)

Transit time 5 - 10 working days.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

DOA Guarantee

If your item arrives damaged, please contact us within 7 days and provide clear and valid proof. Buy2fix will make compensation based on the damage situation.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. Buy2fix will make compensation based on the damage situation.

1) Using micro strip structures, in-band flatness is good, high isolation, insertion loss is small, Standing wave good performance, easy installation, for cellular mobile communications and spread spectrum communications in indoor distribution system.

* Electrical Specifications:

1) Type: 23-way Cavity Power Divider

2) Frequency: 800 ~ 2500MHz

3) Insertion loss(distribution ratio)-db:<=5.2DB

4) Isolation (dB): <=27

5) Nominal Impedance: 50 Ohm

6) VSWR: 1:1.2

7) Max. Power(MAX)(W) :50

8) Connector: N female

* Mechanical Characteristics:

1) Environment temperature:-25~+55 Degree C

2) Relative humidity: 5~95%

3) Size: 235mm X 60mm x 25mm

4) Weight: 186g
