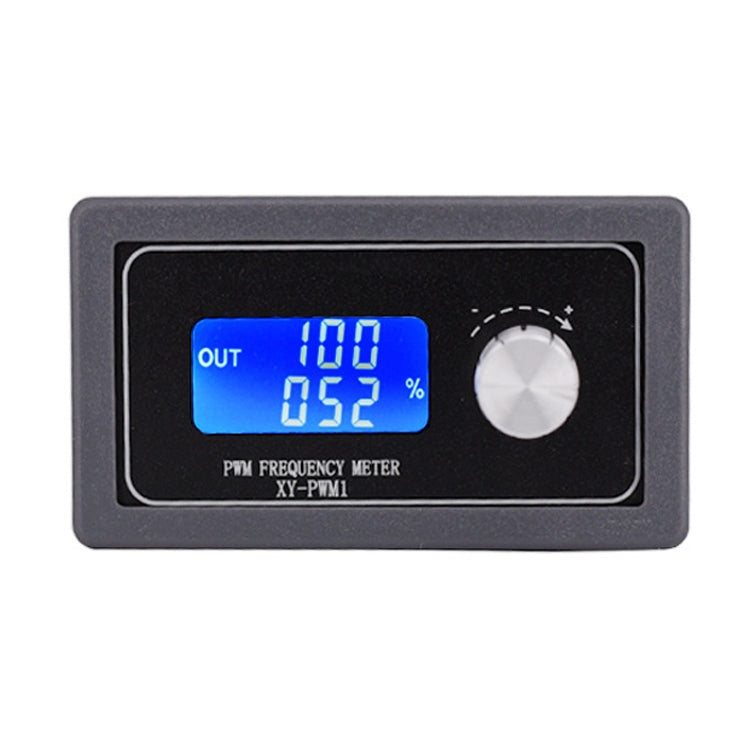

Adjustable PWM Signal Generator DC Motor Speed Controller(PCB)
Adjustable PWM Signal Generator DC Motor Speed Controller(PCB)
SKU: TBD0602106101A
Regular price
£11.69
Regular price
Sale price
£11.69
Duties & Import Tax Information
Duties are only included if shown at checkout. Otherwise, your local government may apply customs fees, which your courier will collect directly from you before delivery.
In Stock
CHN
This item is shipped from China.
Processed in 0–3 days
Quantity
Couldn't load pickup availability
Shipping info
To find all available shipping methods and exact delivery times, add the product to your cart and check using our shipping calculator.
30-day returns
Fast refunds: Once we receive and check your item, we aim to process your refund within 48 hours.
Return postage: Just changed your mind? You'll need to cover the return postage. If the item arrived faulty, we'll cover the cost to get it back to us.
Your details are safe
We treat your data the way we'd want ours treated. Your payment details are locked down with bank-level encryption. We never actually see your credit card numbers, and we will absolutely never sell your personal information.
Product Details
Type:
Boards & Shields
1. Working voltage: 3.3-30V
2. Frequency range: normal mode 1Hz-150KHz, fine mode 1Hz-15KHz
3. Signal load capacity: the output current can be around 5-30mA
4. Output amplitude: PWM amplitude is equal to supply voltage
5. Suitable for opening size: about 7.4x3.95cm
6. Weight: about 42 grams
7. Appearance size: about 7.1x3.9x2.5cm
Scope of application:
1. Used as a square wave signal generator to generate square wave signals for experimental development
2. Used to generate the square wave signal to control the motor driver
3. Generate adjustable pulses for MCU use
4. Generate adjustable pulses and control related circuits (applications such as PWM dimming and speed regulation)
Features:
1. Dual mode, duty cycle step 0.1% in fine mode
2. LCD liquid crystal display frequency and duty cycle, very clear, using coded potentiometer to adjust, very convenient, PWM output can set frequency and duty cycle separately
3. With locking function to prevent misoperation
4. Wide frequency range and high accuracy
5. Small mouth communication
