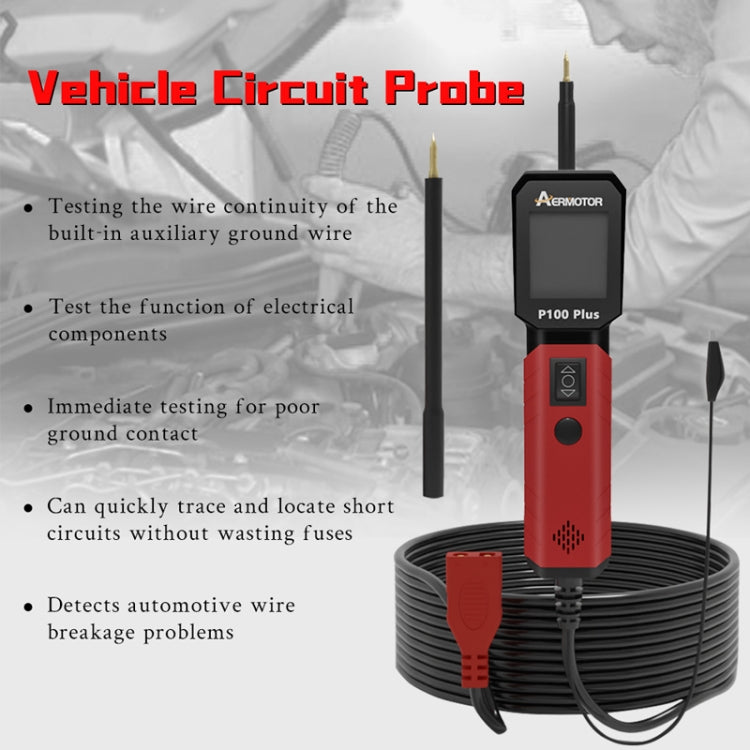

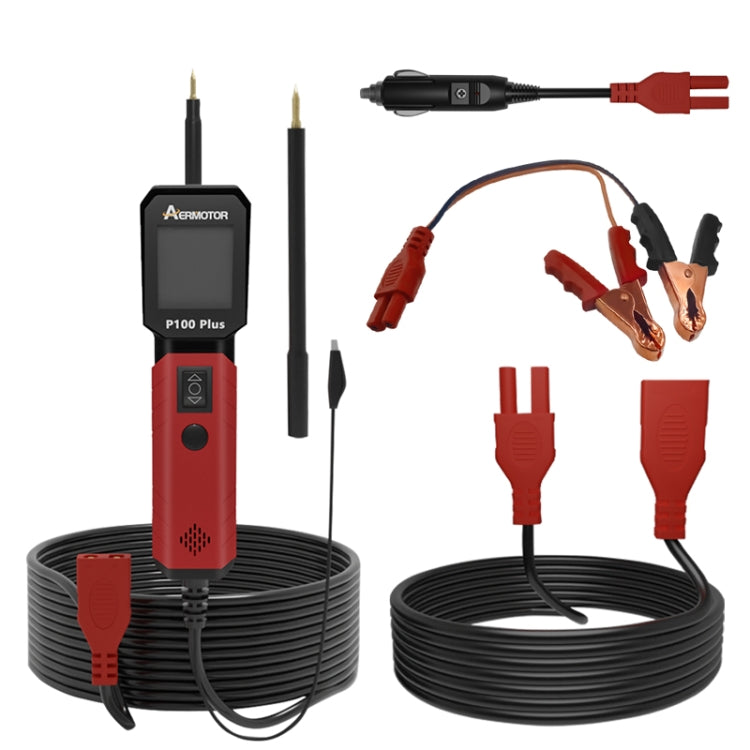

AERMOTOR P100 Plus 12V 24V Car Circuit Tester
AERMOTOR P100 Plus 12V 24V Car Circuit Tester
In stock
Couldn't load pickup availability
Shipping Information
Shipping Information
FAST DELIVERY to UK & 40+ countries.
Delivery: Typically 3-8 working days total including 0-3 days handling to the UK (estimated times for other locations shown at checkout)
Import duties and taxes may apply depending on destination. UK orders under £135 or less ship DDP with no extra charges at delivery. Orders over £135 may have import duties.
Ships from China. Your order will be processed and dispatched from the warehouse within 1–3 days if you order by 12 AM London.
30-Day Money-Back Guarantee
30-Day Money-Back Guarantee
Return unused items within 30 days (you pay return shipping). Faulty items covered, any costs to you will be refunded.
Right Part Guarantee
Right Part Guarantee
Get exactly what you ordered or your money back, including shipping. 30 days, no questions asked.
Easy Returns
Easy Returns
Start your return online in seconds. No forms, no hassle.
Trusted by DIY & repair professionals in 40+ countries
1. Perform current injection, measurement, ground test, polarity test, continuity test and component activation.
2. Ergonomic housing design with waterproof, rugged, blow-molded housing, easy to handle and store.
4. There are 4 modes to diagnose the electrical systems.(DC voltage, AC voltage, Resistance, Diode)
5. AC- RMS, AC peak to peak, frequency and pulse width for signal testing.
6. 8-amp circuit breaker, automatic reset, no button to press.
7. Automatically detects positive, negative and open circuit.
8. Large color screen LCD with easy to navigate user menu.
Functions
1. Find The Short Circuits: In most cases, a short circuit will appear as a blown fuse or a tripping of an electrical protection device.Use the probe tip to activate and energize each of the fuse contacts..The contact which trips the circuit breaker is the shorted circuit.
2. Find The Bad Ground: Probe the suspected ground wire or contact with the probe tip. If the circuit breaker tripped, this circuit is more than likely a good ground.
3. Testing Trailer Lights: While the tool in DC Voltage mode, clip the auxiliary ground lead to the trailer ground , probe the contacts at the jack and then apply voltage to the probe tip. This lets you check the function and orientation of the connector and trailer lights.
4. Check Continuity: While the tool is in Resistance mode, using the probe tip with chassis is ground or the auxiliary ground lead, continuity can be tested on wires and components attached or disconnected from the electrical system of vehicle.
5. Activating Component: The component activation function is designed to generate activation signals to the tested components, such as activating lights, motors and other on-board electric equipments.
6. Signal Circuit Testing: Once you extract a DTC from the vehicle and realize that troubleshooting begins with some kind of sensor circuit, there is a quick test you can perform to verify the code. Testing your sensor is easy while using the tool.
7. Voltage and Polarity Testing: While the tool is in DC Voltage mode, contact the probe tip to a positive circuit. If contact the probe tip to an open circuit, neither of the LED will light.
Specifications
1. DC voltage range: 0-65V
2. Resistance range: 0-100 K Ohm
3. Rated current: 1-10 amps
4. Frequency response of sound passage: 0Hz to 10Khz.
5. Extension cable length: 20ft
