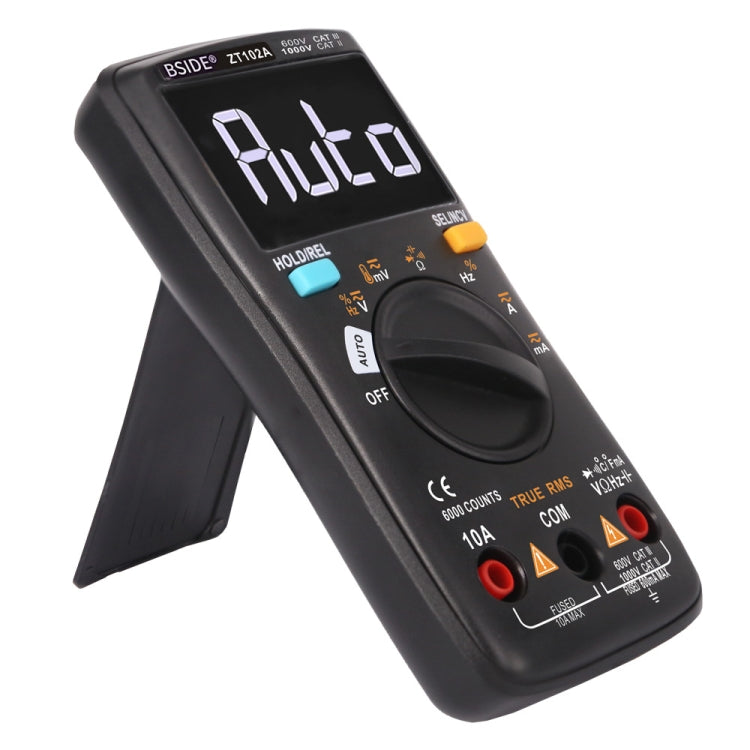

BSIDE ZT102A LCD Display 6000 Words AUTO Intelligent Gear Automatic Range Digital Multimeter
BSIDE ZT102A LCD Display 6000 Words AUTO Intelligent Gear Automatic Range Digital Multimeter
In Stock.
Couldn't load pickup availability
Shipping Guarantee
Shipping Guarantee
FREE SHIPPING on all UK orders. Fully Insured.
Handling time 1 - 3 working days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)
Transit time 5 - 10 working days.
Return Guarantee
Return Guarantee
For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.
DOA Guarantee
DOA Guarantee
If your item arrives damaged, please contact us within 7 days and provide clear and valid proof. Buy2fix will make compensation based on the damage situation.
Missing/Wrong Items Guarantee
Missing/Wrong Items Guarantee
If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. Buy2fix will make compensation based on the damage situation.
Features:
1. The EBTN LCD screen enhances the reading experience and facilitates reading.
2. Integrated design of manual and automatic modes: manual or automatic measurement is possible.
3. This multimeter can measure temperature, capacitance, diode, NCV (non-contact voltage detection), ohm, Hz, AC/DC voltage, AC/DC current, etc.
4. Handheld multimeter, easy to carry and operate, stable and reliable, 6000 count display.
5. Comes with a protective bag, easy to carry around.
parameter:
1. Display (LCD): 6000 times
2. Material: ABS/PVC
3. Update speed: 3 times/sec
4. Dimensions: 130 x 65 x 32mm
5. Power supply: 1.5V (AAA) x 2 (not included)
6. DC voltage: 600mV (+1.0%+10 of A/CN.9/XL/CRP.1/Add.3), 6V/60V/600V/1000V (+0.5%+3)
7. AC voltage: 600mV (+3.0%+3) 6V/60V/600V/750V (+1.0%+3)
8. DC current 600uA / 6000uA (+ 1.5% + 3), 60mA / 600mA (+ 1.5% + 3), 10A (+ 1.5% + 3)
9. Alternating current 600uA/6000uA(+1.5%+3), 60mA/600mA(+1.5%+3), 10A(+1.5%+3)
10. Resistance: 600 (+0.5%+3) 6K/60K/600K/6M (+0.5%+2) 60M (+1.5%+3)
11. Frequency: 5/50/500 / 5k / 50k / 500k / 5M / 10M (+ 0.1 + 3)
12. Capacitance: 10nF (+ 5.0 + 20) 100nF / 1uF / 10uF / 100uF (+ 2.0% + 5) 1000uF / 10000uF (+ 5.0% + 5)
13. Temperature: 1000~-20 degrees Celsius/-4~1832 degrees Fahrenheit (ZT102)
packing list:
1 host
1 x English manual
1 x test lead
1 x temperature probe
1 x drawstring bag
