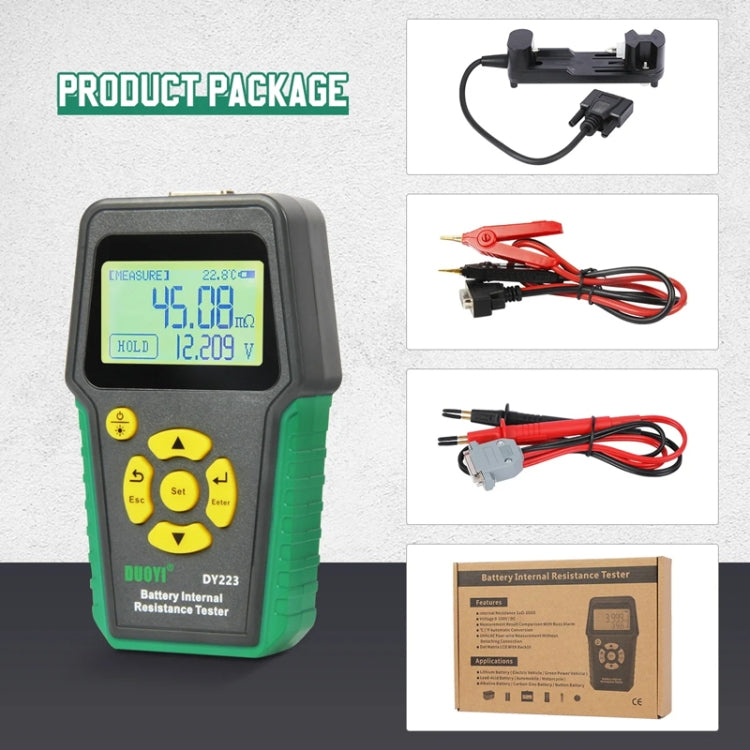

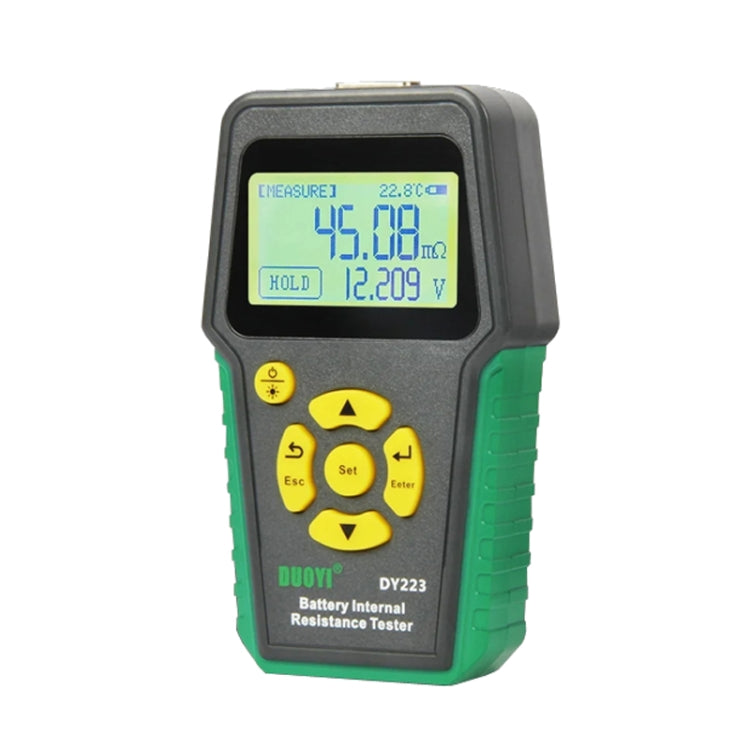

DUOYI DY223 Electrical Vehicle Voltage Testing And Fault Diagnostic Instrument(Test Clip+Guage Pen+Clip Base)
DUOYI DY223 Electrical Vehicle Voltage Testing And Fault Diagnostic Instrument(Test Clip+Guage Pen+Clip Base)
In Stock.
Couldn't load pickup availability
Shipping Guarantee
Shipping Guarantee
FREE SHIPPING on all UK orders. Fully Insured.
Handling time 1 - 3 working days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)
Transit time 5 - 10 working days.
Return Guarantee
Return Guarantee
For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.
DOA Guarantee
DOA Guarantee
If your item arrives damaged, please contact us within 7 days and provide clear and valid proof. Buy2fix will make compensation based on the damage situation.
Missing/Wrong Items Guarantee
Missing/Wrong Items Guarantee
If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. Buy2fix will make compensation based on the damage situation.
1. Resistance, voltage sorting comparison function, can be customized to set the primary and secondary resistance thresholds and primary voltage thresholds
2. Measure and display the internal resistance and voltage of the test battery at the same time; backlight display is convenient for working in dimly lit places and at night
3. Auto power off to save power If there is no key operation in the measurement or comparison mode, the instrument will be automatically shut down after 10 minutes
4. Soft rubber buttons are comfortable to use and not easy to wear
5. Built-in ambient temperature measurement for versatile use
6. Suitable for all kinds of battery measurement: such as new energy vehicles, traditional cars, electrical cars, motorcycles, etc
Parameters:
1. Measurement object: internal resistance measurement / battery voltage measurement / ambient temperature measurement
2. Resistance measurement range 0.000mΩ2-200Ω (5 ranges, automatic unit switching)
3. Voltage measurement range: 0.000V-+/-100V
4. Temperature measurement range: -10-50 degrees celsius
5. Measuring speed: 3 times/second
6. Battery: 6 x LR6 (not included in shipment)
7. Dimensions: 170 x 100 x 38mm
8. Weight: 200g
