F3088-30A 30A Manual Reset Circuit Breaker Double Short Legs with Bolt 12/24V

The F3088-30A is a 30A manual reset circuit breaker designed for use in various electrical applications. It is suitable for battery chargers, stereos, cars, trucks, buses, ships, and recreational vehicles.

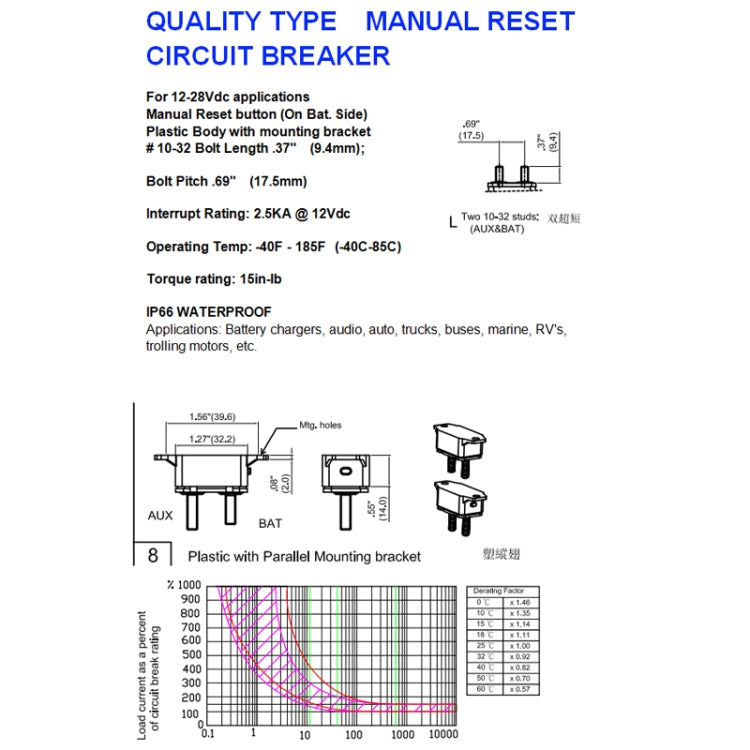

• Rated voltage: 6-28V
• Bolt length: 9.4mm
• Bolt spacing: 17.5mm
• Wing mounting hole spacing: 39.6mm
• Interrupt rating: 2.5KA @ 12Vdc
• Operating temperature: -40 to 85 degrees Celsius
• Torque level: 15 in-lb
• IP66 waterproof rating on plastic cover (except for terminal)
• Applications: battery chargers, stereos, cars, trucks, buses, ships, recreational vehicles, trailer motors
