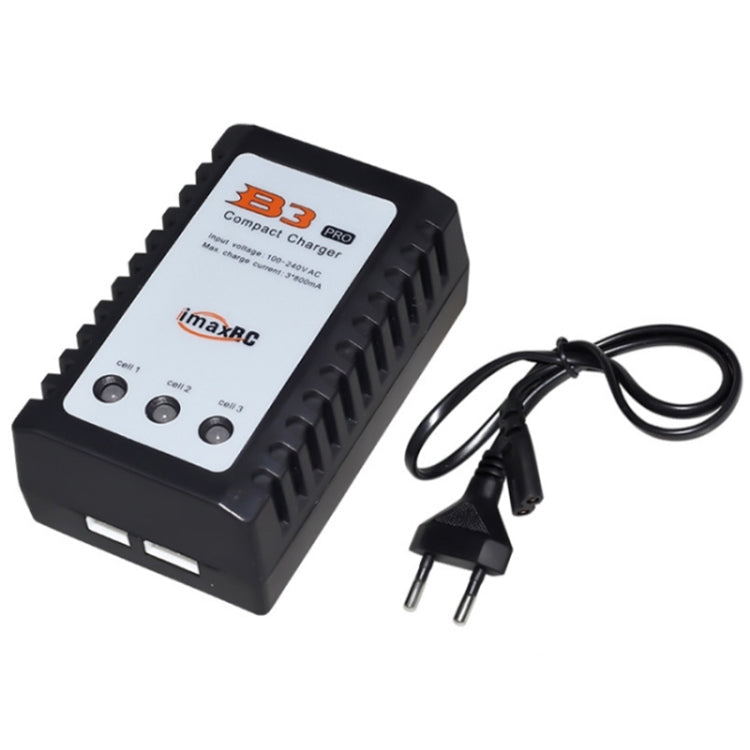

ImaxRC 7.4V/11.1V 2S/3S Model Aircraft Drone Lithium Battery Intelligent Balance Charger(EU Plug)

1. Output current: 3 x 800mA
2. Rated power: 10w
3. Input parameters: 100-240V
4. Applicable: 18650 battery
5. Size: 92x57.5x35mm
6. Cable length: 60cm
7. Net weight: 89g

Features:
1. Intelligent diversion, two channels can be charged at the same time:
- When a 7.4V lithium battery is inserted into the XH-3P (three-pin) port for charging, cell1 and cell2 light up red, indicating that they are charging
- When an 11.1V lithium battery is inserted into the XH-4P (four-pin) port for charging, cell1/2/3 lights up red, and two channels are charged at the same time without interfering with each other
2. Built-in intelligent load identification chip to block excessive current and voltage from entering, prevent overcharging, overvoltage, overload, and protect the equipment from damage
3. Aluminum alloy plug, anti-oxidation, corrosion-resistant, safer
4. The XH-3P and XH-4P charging end female plugs connected to the battery end male plug are connected with a snap-on design, which ensures no leakage when charging and is safe and tight.
5. The charging current is gradually reduced according to the increase of the battery charging capacity. When the battery voltage reaches 8.4V and 12.6V, the current will be automatically shut off and charging will be stopped to prevent battery overcharge damage.
6. Suitable for charging 7.4V and 11.1V lithium batteries.
7. It can charge a 7.4V lithium battery and a 11.1V lithium battery at the same time, with independent channel control and overcharge protection/LED indication.
