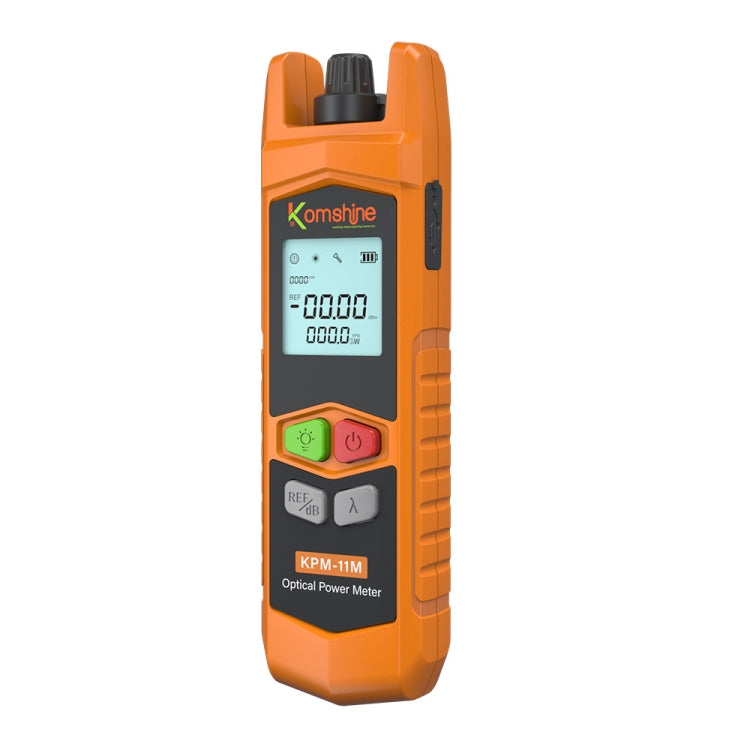

Komshine High Precision Optical Power Meter Mini Fiber Optic Light Attenuation Tester With LED, Specification: A-G/-70dBM to +6DBM

The Komshine High Precision Optical Power Meter is designed to measure optical power in fiber optic systems. It is suitable for telecommunications and mobile applications, providing accurate measurements across a range of wavelengths.

• Wavelength range: 800~1700 nm
• Probe type: InGaAs
• Interface: 2.5mm universal interface
• Power measurement range: -70~+6 dBm / -50~+26 dBm
• Standard wavelengths: 850 nm, 980 nm, 1300 nm, 1310 nm, 1490 nm, 1550 nm, 1625 nm
• Display resolution: 0.01 dB
• Automatic shutdown time: 10 minutes
• Battery working time: 20 hours
• Power supply: 2 x AAA 1.5V batteries (not included)
• LED flashlight: supported
• Measurement error: 0.2 dB
• Dimensions: 127 x 36.5 x 28 mm
• Weight: 61 g
• Power saving function: activates after 15 minutes of inactivity
• Two models available: Type A (-70 dBm to +6 dBm) and Type C (-50 dBm to +26 dBm)
• Ergonomic design for portability
