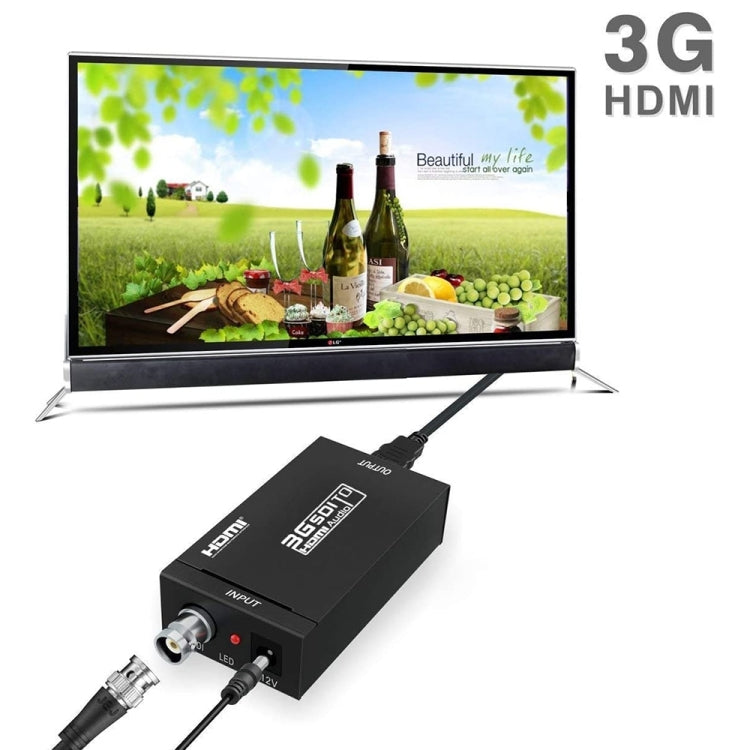

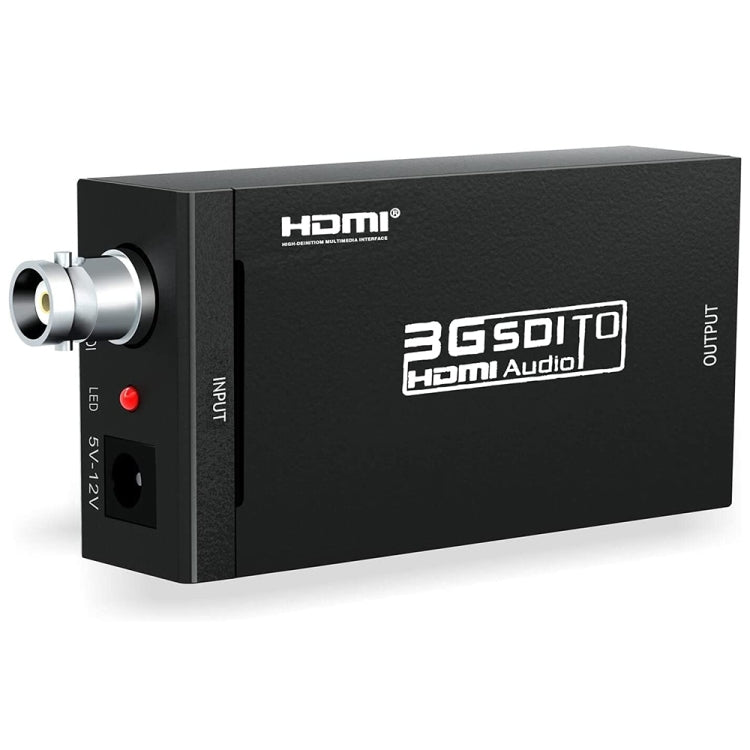

NEWKENG S008 Mini SD-SDI / HD-SDI / 3G-SDI to HDMI Video Converter
NEWKENG S008 Mini SD-SDI / HD-SDI / 3G-SDI to HDMI Video Converter
SKU: HDMI5413
Regular price
£29.49
Regular price
Sale price
£29.49
Duties & Import Tax Information
Duties are only included if shown at checkout. Otherwise, your local government may apply customs fees, which your courier will collect directly from you before delivery.
In Stock
CHN
This item is shipped from China.
Processed in 0–3 days
Quantity
Couldn't load pickup availability
Shipping info
To find all available shipping methods and exact delivery times, add the product to your cart and check using our shipping calculator.
30-day returns
Fast refunds: Once we receive and check your item, we aim to process your refund within 48 hours.
Return postage: Just changed your mind? You'll need to cover the return postage. If the item arrived faulty, we'll cover the cost to get it back to us.
Your details are safe
We treat your data the way we'd want ours treated. Your payment details are locked down with bank-level encryption. We never actually see your credit card numbers, and we will absolutely never sell your personal information.
Product Details
Type:
Video Converter
1. Converts SD-SDI / HD-SDI / 3G-SDI video input to HDMI output
2. Supports video format: SD-SDI (270Mb/s) / HD-SDI (1.485Gb/s) / 3G-SDI (2.97Gb/s)
3. Supports SMPTE 425M, SMPTE 424M, SMPTE 292M, SMPTE 259M-C
4. Equalized and re-clocked loop output integrated audio de-embedder for a maximum of 8 channels, 48KHz audio
5. Input / output resolution: 480, 576i, 720p@50/59.94/60Hz, 1080i@50/59.94/60Hz, 1080p@23.91/24/25/29.97/30/50/59.94/60Hz
Parameter
1. Video input signal: HD digital component serial interface (HD-SDI and 3G-SDI) signal
2. Video output signal: one HDMI signal output (1080P @ 60Hz)
3. Input audio signal: SDI embedded
4. Maximum working current: 500mA
5. Power adapter specifications: AC input (50HZ, 60HZ) 100V-240V; output DC 12V / 1A
6. Working temperature: -15-55 degrees celsius
7. Dimensions: 80x 41x25mm
8. Weight: 150g
Connection and operation:
1. Connect the signal source with SDI connector to the SDI connector input of the device
2. Connect the converter output to the terminal display via HDMI cable
3. Connect DC 5V/1A power supply or 12V power supply to the converter
2. Supports video format: SD-SDI (270Mb/s) / HD-SDI (1.485Gb/s) / 3G-SDI (2.97Gb/s)
3. Supports SMPTE 425M, SMPTE 424M, SMPTE 292M, SMPTE 259M-C
4. Equalized and re-clocked loop output integrated audio de-embedder for a maximum of 8 channels, 48KHz audio
5. Input / output resolution: 480, 576i, 720p@50/59.94/60Hz, 1080i@50/59.94/60Hz, 1080p@23.91/24/25/29.97/30/50/59.94/60Hz
Parameter
1. Video input signal: HD digital component serial interface (HD-SDI and 3G-SDI) signal
2. Video output signal: one HDMI signal output (1080P @ 60Hz)
3. Input audio signal: SDI embedded
4. Maximum working current: 500mA
5. Power adapter specifications: AC input (50HZ, 60HZ) 100V-240V; output DC 12V / 1A
6. Working temperature: -15-55 degrees celsius
7. Dimensions: 80x 41x25mm
8. Weight: 150g
Connection and operation:
1. Connect the signal source with SDI connector to the SDI connector input of the device
2. Connect the converter output to the terminal display via HDMI cable
3. Connect DC 5V/1A power supply or 12V power supply to the converter
