PORTXVNSA VNA-H4 Plus 4 inch IPS Screen Portable Handheld Vector Antenna Analyzer MF HF VHF UHF, Spec: With 32G Memory Card

The PORTXVNSA VNA-H4 Plus is a portable handheld vector antenna analyzer designed for measuring antenna performance across various frequency bands. It is suitable for testing antennas in the frequency range of 50KHz to 2.7GHz, making it ideal for applications in amateur radio and telecommunications.

• Bandwidth: 50KHz - 2.7GHz
• Dynamic range: 80dB (50KHz-900MHz), 60dB (900MHz-1.5GHz), 50dB (1.5GHz-2.7GHz)
• Reflection coefficient: SWR less than 1.14
• Frequency accuracy: less than 0.5 ppm
• Frequency stability: less than 2.5 ppm
• Number of scanning points: 401
• Battery capacity: 5000mAh
• Dimensions: approximately 16 x 9.2 x 3.5 cm
• Display: 4 inch IPS LCD, wide viewing angle, accurate color reproduction, high contrast, uniform brightness
• Ergonomic design
• Supports SD card for data saving and exporting
• Touch screen functionality with large knob operation

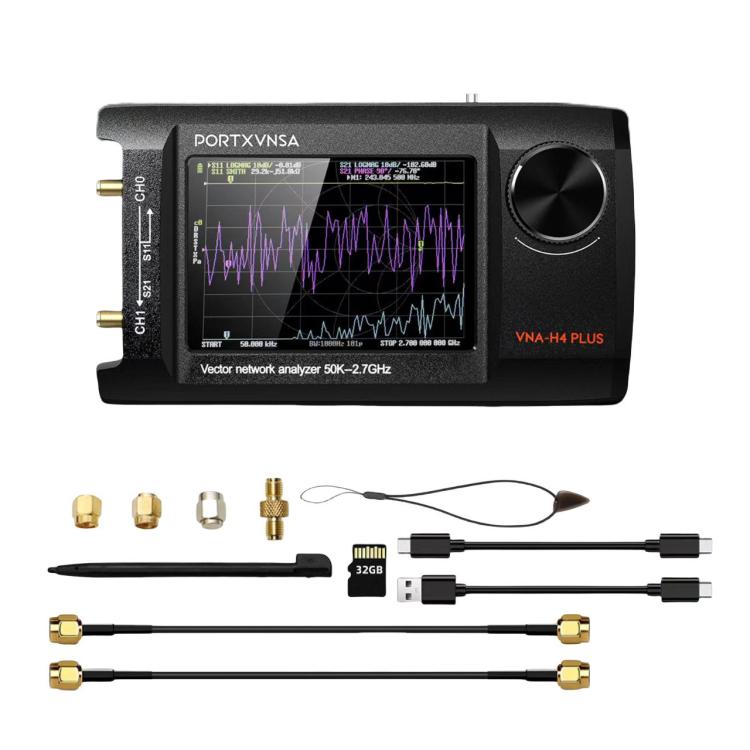

• Packing list includes: Host, 15cm SMA male to male TG316 RF cables (x2), SMA male calibration kit (OPEN, short circuit, LOAD), SMA female to female connector, USB Type-C cable, Type-C to Type-C cable, stylus pen, pick
