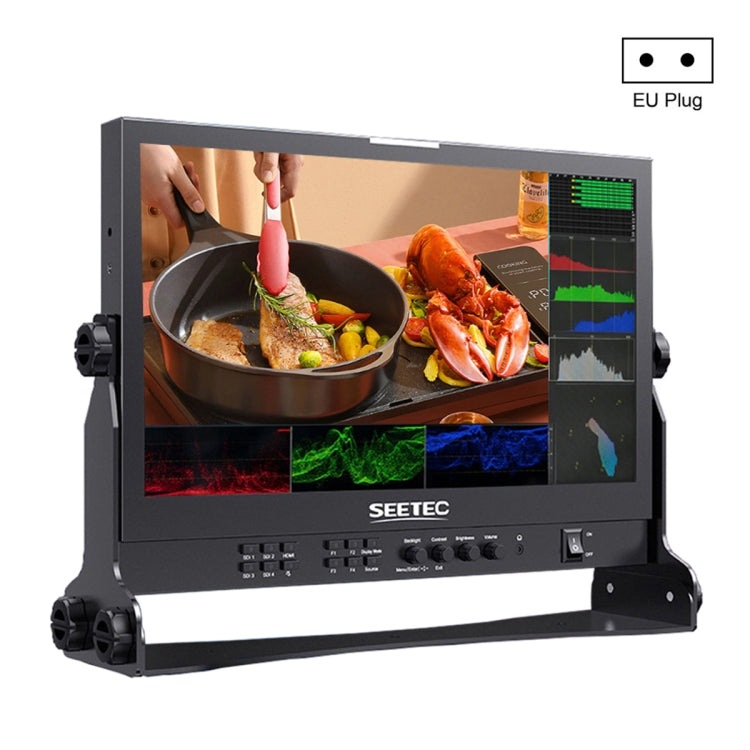

SEETEC ATEM156S 15.6 inch 3G-SDI HDMI Full HD 1920x1080P Multi-camera Broadcast Monitor(EU Plug)
SEETEC ATEM156S 15.6 inch 3G-SDI HDMI Full HD 1920x1080P Multi-camera Broadcast Monitor(EU Plug)
In Stock.
Couldn't load pickup availability
Shipping Guarantee
Shipping Guarantee
FREE SHIPPING on all UK orders. Fully Insured.
Handling time 1 - 3 working days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)
Transit time 5 - 10 working days.
Return Guarantee
Return Guarantee
For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.
DOA Guarantee
DOA Guarantee
If your item arrives damaged, please contact us within 7 days and provide clear and valid proof. Buy2fix will make compensation based on the damage situation.
Missing/Wrong Items Guarantee
Missing/Wrong Items Guarantee
If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. Buy2fix will make compensation based on the damage situation.
1. Built-in Multi camera Delog LUTs
2. User 3DLUTs upload via USB (up to 36)
3. Support GPI control
4. Support dynamic IMD, support TSL 3.1/4.0 and IMAGE VIDEO protocol
5. Support TALLY
6. Support 16-ch embedded audio meters display
7. Histogram
8. HDR
9. Focus Assist (Yellow, Red, Green, Blue, White five colors optional highlight over parts of the image in focus)
10. False Colors
11. Zebra (70IRE, 80IRE, 90IRE)
12. Timecode Display
13. Picture in Picture (Adjustable Horizontal or Vertical Wipe Position)
14. Under Scan, Over Scan
15. Anamorphic Mode (1.25X, 1.33X, 1.5X, 2.0X, 2.0X mag)
16. Pixel to Pixel
17. Center Marker
18. Safety Marker (70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1,user)
19. Marker Mat (16:9, 16:10, 4:3, 1.85:1, 2.35:1)
20. All Waves
21. Parade (RGB Parade, Y, YUV Parade)
22. Image Freeze
23. Selectable Color Temperature Presets
Specifications
Display Screen
1. Model: ATEM156S
2. Screen Size: 15.6 inch IPS
3. Color Depth: 16.7M
4. Resolution: 1920 x 1080 pixels
5. Pixel pitch: 0.17925(W) x 0.17925(H) mm
6. Aspect Ratio: 16:9
7. Brightness: 200cd/m2
8. Contrast Ratio: 800:1
9. Backlight: LED
10. Viewing Angle: 85 degrees /85 degrees (L/R) 85 degrees /85 degrees (U/D)
Input
1. 4 x 3G-SDI: 3G-SDI (support 2K)
2. 1 x HDMI: HDMI (support 1080P)
3. 1 x RS485: RS485
4. 1 x GPI: GPI
5. 1 x USB: USB (upgrade and LUT import)
Output
1. 4 x 3G-SDI: 3G-SDI (support 2K)
2. 1 x RS485: RS485
Audio
- Audio: Stereo Headphone
SDI Support Format:
- 720p (60/59.94/50/30/29/25/24/23.98)
- 1080i (60/59.94/50)
- 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)
- 2048x1080i (60/59.94/50)
- 2048x1080p (60/59.94/50/30/29.97/25/24/23.98)
HDMI Support Format:
- 480i/576i/480p/576p
- 720p (60/59.94/50/30/29.97/25/24/23.98)
- 1080i (60/59.94/50)
- 1080p (60/59.94/50/30/29.97/25/24/23.98)
General
1. Input Voltage: DC 12V
2. Power Consumption: Less than or equal to 21W
3. Working Temperature:0 degree C~50 degree C
4. Storage Temperature:-20 degree C~60 degree C
5. Unit Size: 372L x 262H x 28.4D (mm) (W/O bracket)
6. Unit Weight: 1.81kg
Package List
1. Monitor x 1
2. SDI Cable x 1
3. Mini HDMI Cable x 1
4. V-mount Battery Plate (default to mount on device) x 1
5. Sunshade x 1
6. U-shape Bracket x 1
7. Power Adapter x 1
8. User Manual x 1
