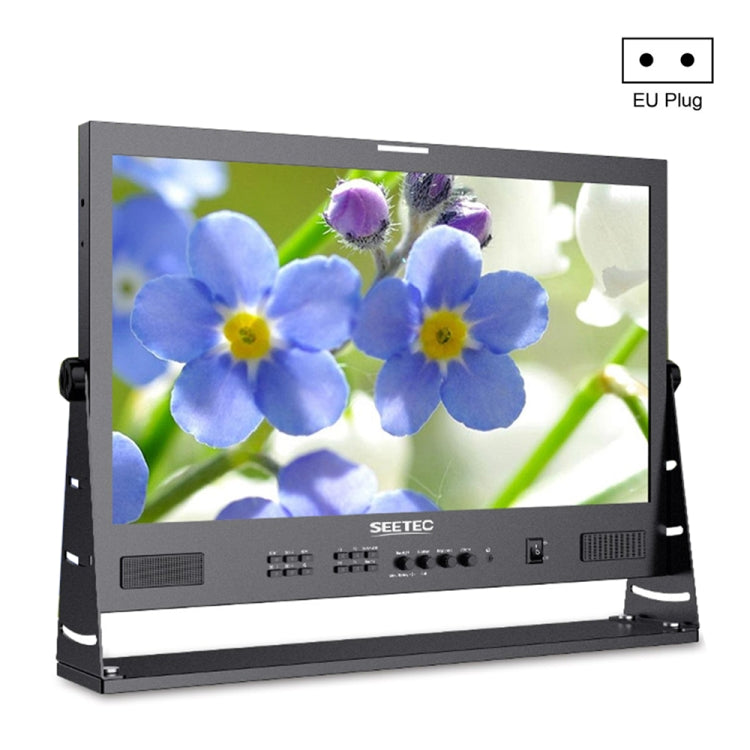

SEETEC ATEM215S 21.5 inch 3G-SDI HDMI Full HD 1920x1080 Multi-camera Broadcast Monitor(EU Plug)
SEETEC ATEM215S 21.5 inch 3G-SDI HDMI Full HD 1920x1080 Multi-camera Broadcast Monitor(EU Plug)
In Stock.
Couldn't load pickup availability
Shipping Guarantee
Shipping Guarantee
FREE SHIPPING on all UK orders. Fully Insured.
Handling time 1 - 3 working days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)
Transit time 5 - 10 working days.
Return Guarantee
Return Guarantee
For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.
DOA Guarantee
DOA Guarantee
If your item arrives damaged, please contact us within 7 days and provide clear and valid proof. Buy2fix will make compensation based on the damage situation.
Missing/Wrong Items Guarantee
Missing/Wrong Items Guarantee
If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. Buy2fix will make compensation based on the damage situation.
1. 21.6-inch 1920x1080 full HD large screen
2. Rugged aluminium housing, durable
3. Flexible and intuitive button operation, easy to use)
4. Mulitple display modes (single, PIP, quad)
5. Supports 3D LUT Log to REC.709 and user 3D LUT upload (up to 36)
6. With waveform, vectorscope, RGB Histogram, focus Assist, monochrome etc. functions, can help you accurately exposure and focus every shot.
7. Multiple interfaces, meet different needs (4*3G-SDI inputs and outputs, 1*HDMI input, RS485, GPI)
8. Supports OSD tally and LED tally
9. Stereo Earphone output
10. VESA standard mounting points support for bracket or hang wall installation
Functions
1. Focus Assist (Yellow, Red, Green, Blue, White five colors optional highlight over parts of the image in focus)
2. Zebra (70IRE, 80IRE, 90IRE,user)
3. Monochrome (gray, red, green, blue)
4. False Color
5. Timecode
6. Nine Grid
7. Safety Marker ( 70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1,user)
8. Center Marker
9. Marker Mat (16:9, 16:10, 4:3, 1.85:1, 2.35:1)
10. All Waves (can be adjusted left or right)
11. Parade (OFF, RGB Parade, Y, YUV Parade)
12. Vector
13. Histogram
14. RGB Histogram
15. Audio Meter
16. 3D-LUT
17.Scan Mode (Under Scan, Over Scan)
18. Video Aspect (auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, user)
19. Anamorphic Mode (1.25X, 1.33X, 1.5X, 2.0X, 2.0X mag)
20. Zoom (4X, 9X, 16X)
21. Freeze
22. Pixel to Pixel
23. Colortemp (6500K, 9300K, user)
24. Display Mode(full screen, PIP, quad)
25. Quad View: Support 4x 3G-SDI inputs.
Specifications
Display screen
1. Model: ATEM215S
2. Screen Size: 21.5 inch IPS
3. Color Depth: 16.7M
4. Resolution: 1920 x 1080 pixels
5. Pixel pitch: 0.08265(H) x 0.24975(V) mm
6. Aspect Ratio: 16:9
7. Brightness: 250cd/m2
8. Contrast Ratio: 1000:1
9. Backlight: LED
10. Viewing Angle: 89 degree / 89 degree (L/R) 89 degree / 89 degree (U/D)
Input
1. 4 x 3G-SDI: 3G-SDI (support 2K)
2. 1 x HDMI: HDMI (support 1080P)
3. 1 x RS485: RS485
4. 1 x GPI: GPI
5. 1 x USB: USB (upgrade and LUT import)
Output
1. 4 x 3G-SDI: 3G-SDI (support 2K)
2. 1 x RS485: RS485
Audio
- Audio: Stereo Headphone, Speaker
SDI Support Format:
- 720p (60/59.94/50/30/29/25/24/23.98)
- 1080i (60/59.94/50)
- 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)
- 2048x1080i (60/59.94/50)
- 2048x1080p (60/59.94/50/30/29.97/25/24/23.98)
HDMI Support Format:
- 480i/576i/480p/576p
- 720p (60/59.94/50/30/29.97/25/24/23.98)
- 1080i (60/59.94/50)
- 1080p (60/59.94/50/30/29.97/25/24/23.98)
