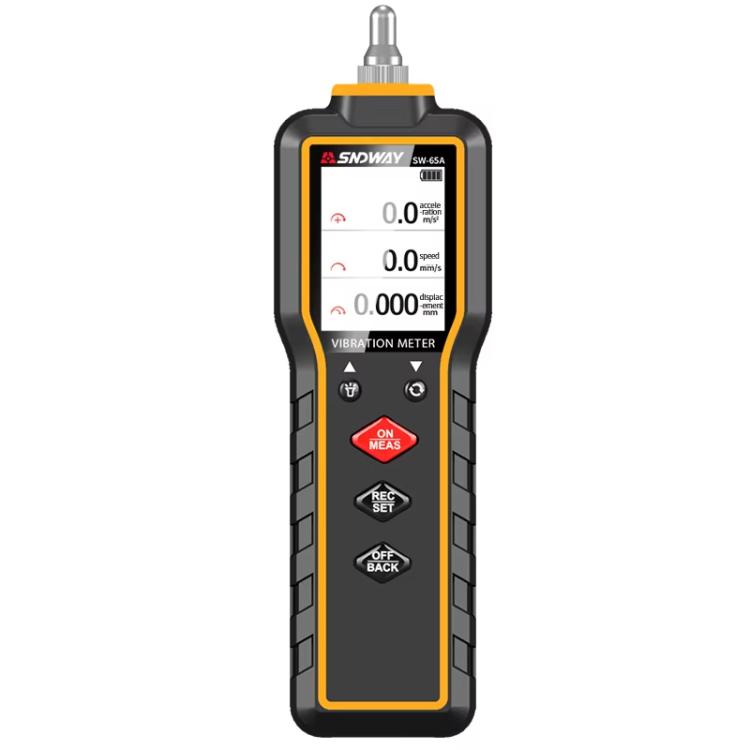

SNDWAY SW-65A Digital Vibrometer Motor Fault Vibration Detector Vibration Pen

The SNDWAY SW-65A Digital Vibrometer is a vibration detection tool designed to measure motor faults. It is suitable for diagnosing issues in machinery by measuring acceleration, velocity, and displacement.

• Sensor: Piezoelectric accelerometer
• Acceleration measurement range: 0.1-199.9 m/s² (peak value)
• Velocity measurement range: 0.1-199.9 mm/s (true effective value)
• Displacement measurement range: 0.001-1.999 mm (peak-to-peak value)
• Measurement error: ±(5% + 2 dgts)
• Low-frequency acceleration measurement frequency range: 10 Hz - 1 kHz
• High-frequency acceleration measurement frequency range: 1 kHz - 10 kHz
• Velocity measurement frequency range: 10 Hz - 1 kHz
• Displacement measurement frequency range: 10 Hz - 500 Hz
• Data refresh time: 500 ms
• Number of storage records: 200 records
• Working temperature: 0 - 50 degrees Celsius
• Working/storage humidity: 20% RH - 80% RH
• Storage temperature: -20 - 60 degrees Celsius
• Power supply: 2 x 1.5V AAA batteries (not included)
• Battery life: More than 4 hours of continuous use
• Altitude: Less than 2000 m
• Size: Approximately 17.6 x 5.4 x 2.5 cm
• Weight: Approximately 121 g
• Features: Single/three-group data display switch
• Features: Screen flip, multi-directional observation data
• Features: Dual measurement keys for better control direction and contact
• Features: Flashlight for safe measurement in dark conditions
• Features: Symmetrical shape for stable contact and uniform force
• Features: 200 records of storage, can store three items of data simultaneously
• Features: Two-color mold one-piece molding, dustproof and drop-proof
