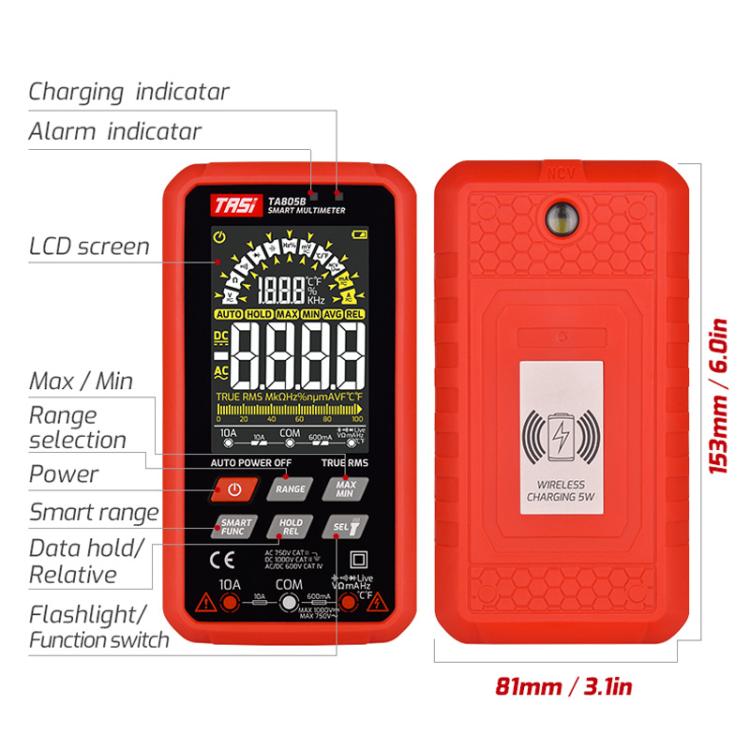

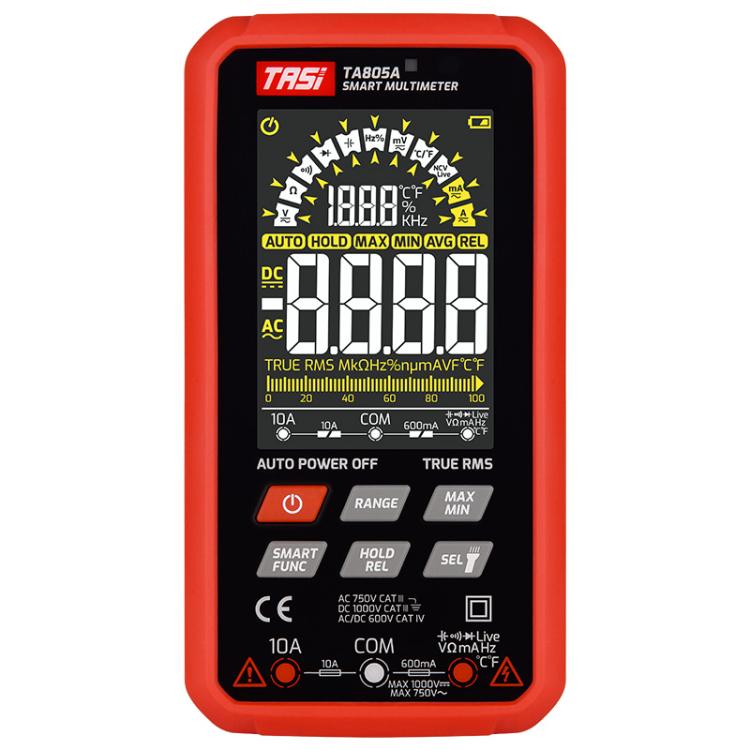

TASI TA805A Battery-powered Large Screen Digital Fully Automatic Smart Multimeter

1. DC voltage: 0.01 mV - 1000 V / +/-0.5% of reading +5 digits
2. AC voltage: 0.01 mV - 750 V / +/-0.8% of reading +5 digits
3. DC/AC current: 1 μA - 100 A / +/-1% of reading +5 digits

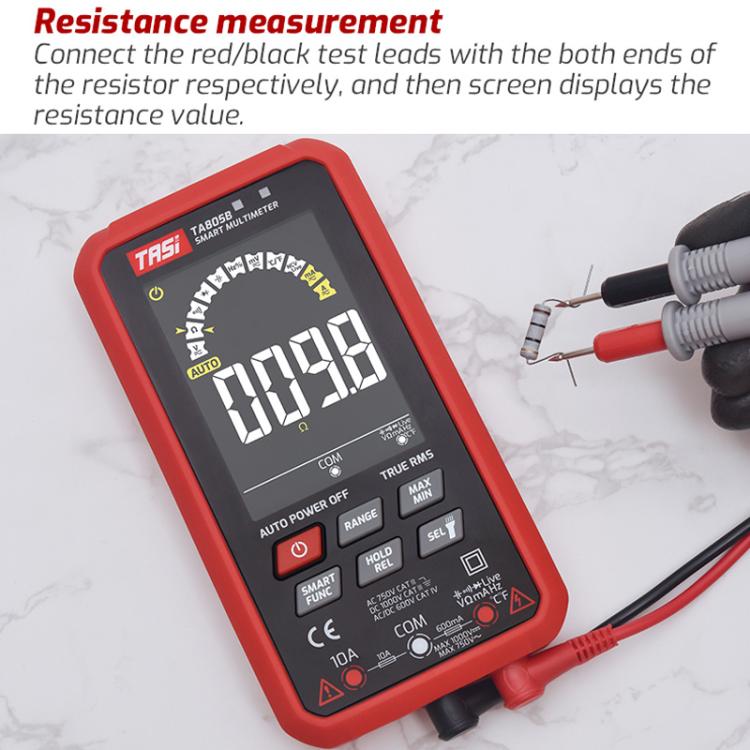

4. Resistance: 0.1ohm - 100 Mohm / +/-0.8% of reading +5 digits
5. Capacitance: 0.01 nF - 100 μF / +/-4% of reading +5 digits
6. Frequency: 1 Hz - 10 MHz / +/-1% of reading +5 digits
7. Duty cycle: 10% - 95% / +/-1.0% of reading +15 digits
8. Temperature range: -20 to 1000 °C (0-1832 °F); this range applies only to the meter; actual measurement depends on the probe
9. Maximum count: 4-digit display, maximum value 9999

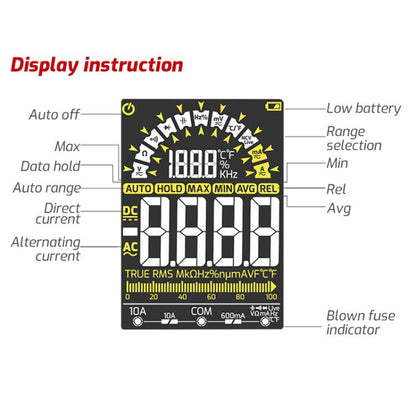

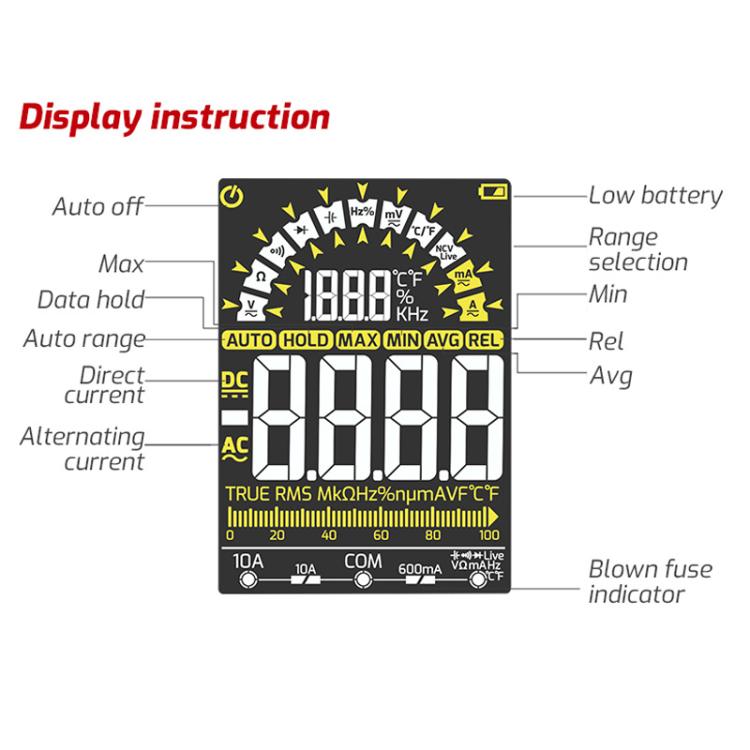

10. Display: VA color screen

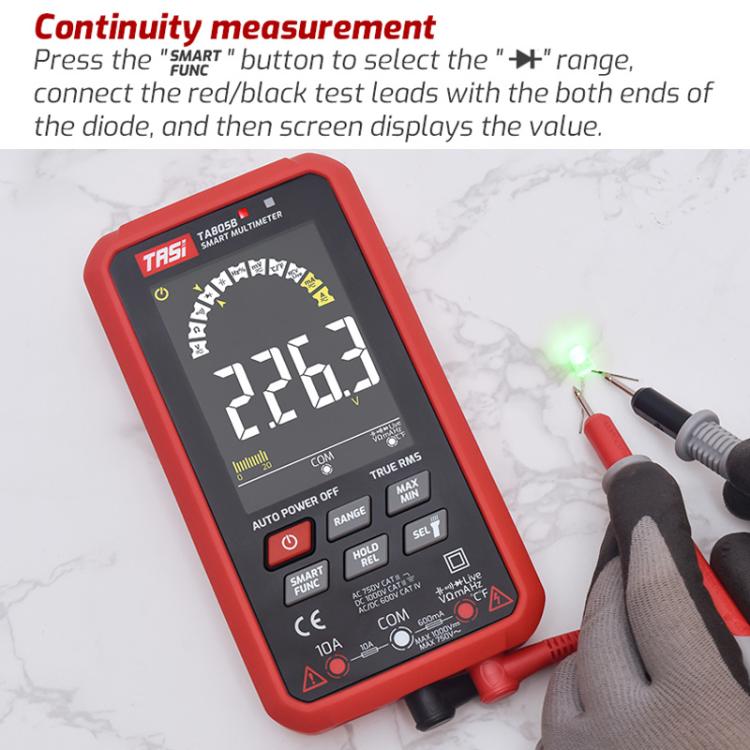

11. Functions: analog bar graph, auto-range, neutral/hot wire measurement, NCV detection, diode test, continuity buzzer, max/min/average, relative value, data hold, true RMS, fuse blown alert, low battery indicator, flashlight
12. Auto-off: 10 minutes (can be manually disabled)

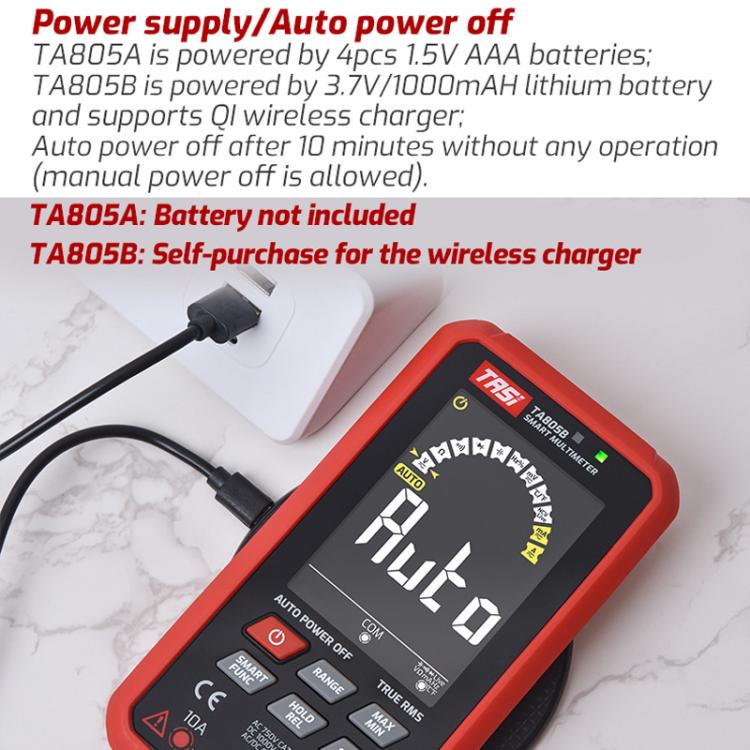

13. Power supply:
- TA805A: 4 x 1.5V AAA batteries (not included)
- TA805B: built-in 3.7V/1000mAh lithium battery, supports 5W Qi wireless charging
14. Type K thermocouple: probe measurement range -20 to 200°C (accuracy +/-2.5%)
15. Display size: about 73 x 51mm
16. Size: about 15.3 x 7.1 x 2.7cm
17. Weight: about 240g

Features:

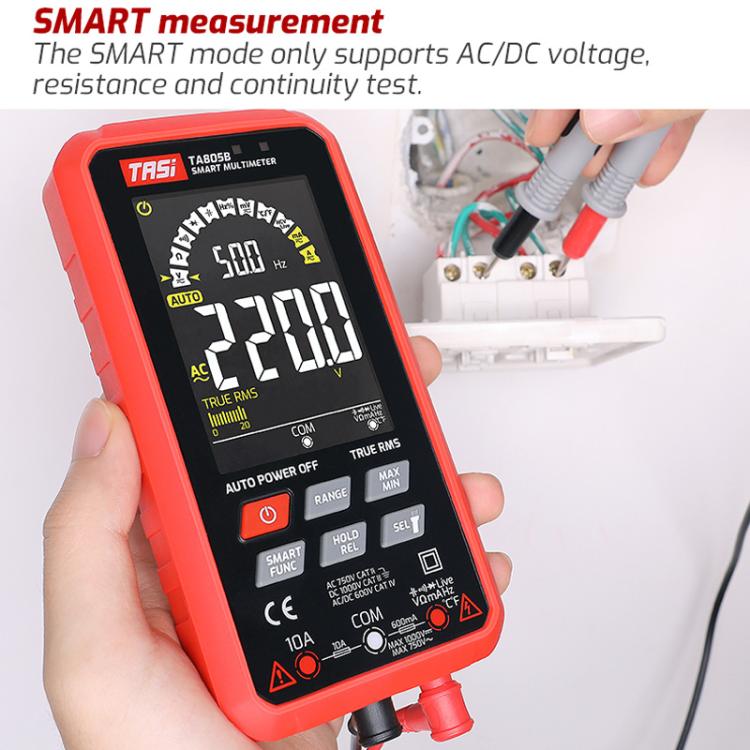

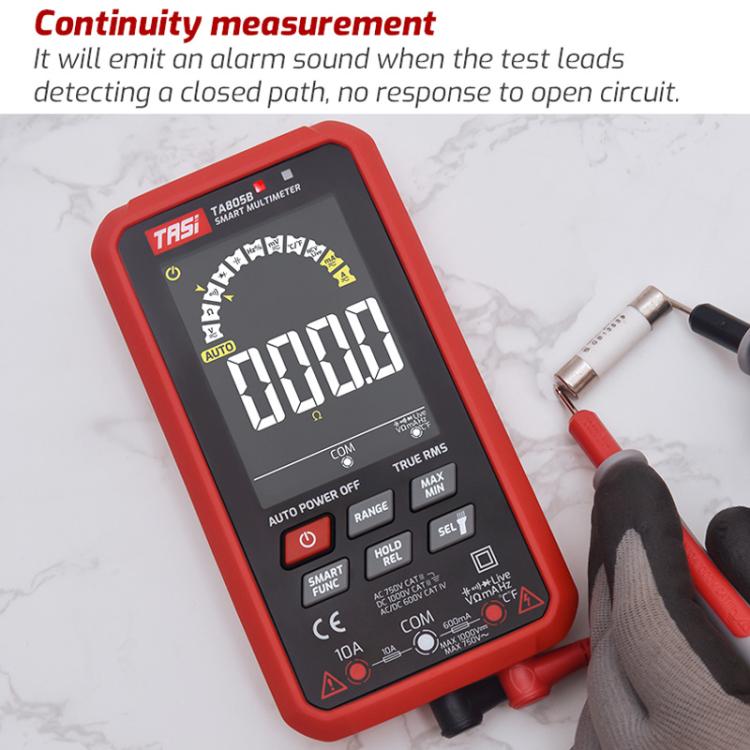

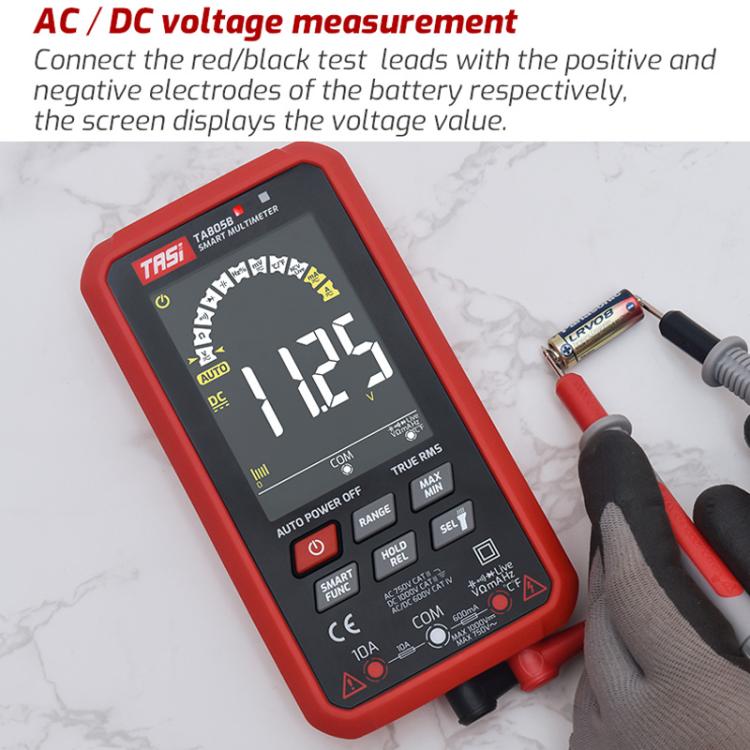

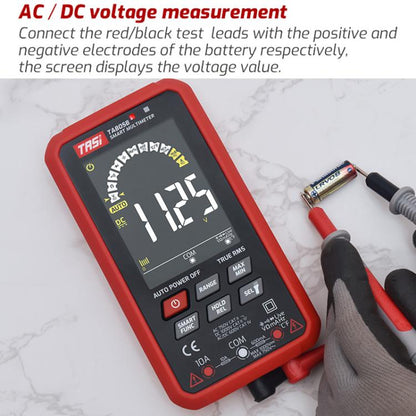

1. After power-on, measures AC/DC voltage, resistance, and continuity; automatically detects and switches ranges

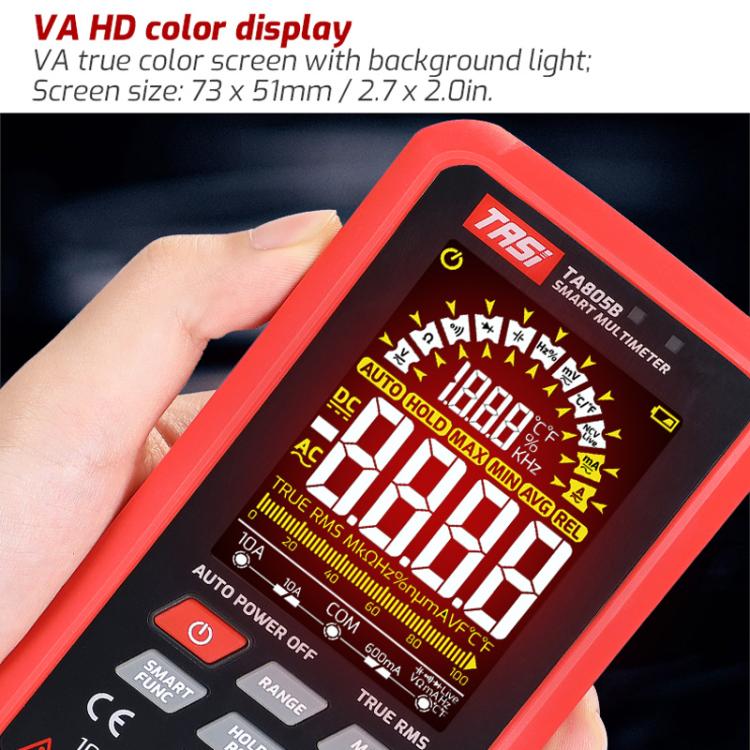

2. VA true-color display with backlight

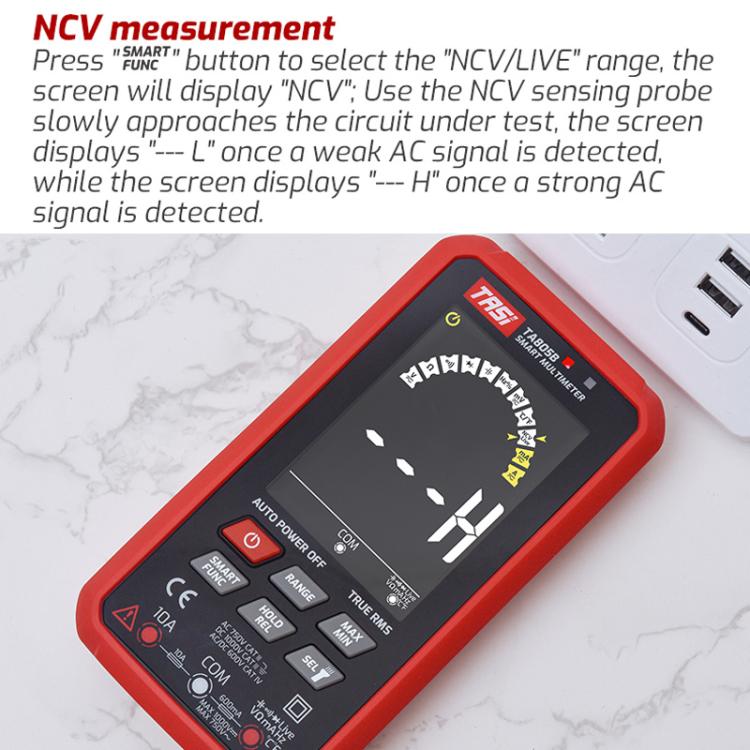

3. NCV non-contact voltage detection: when the front of the meter is brought near a live circuit, it emits a continuous audible alarm

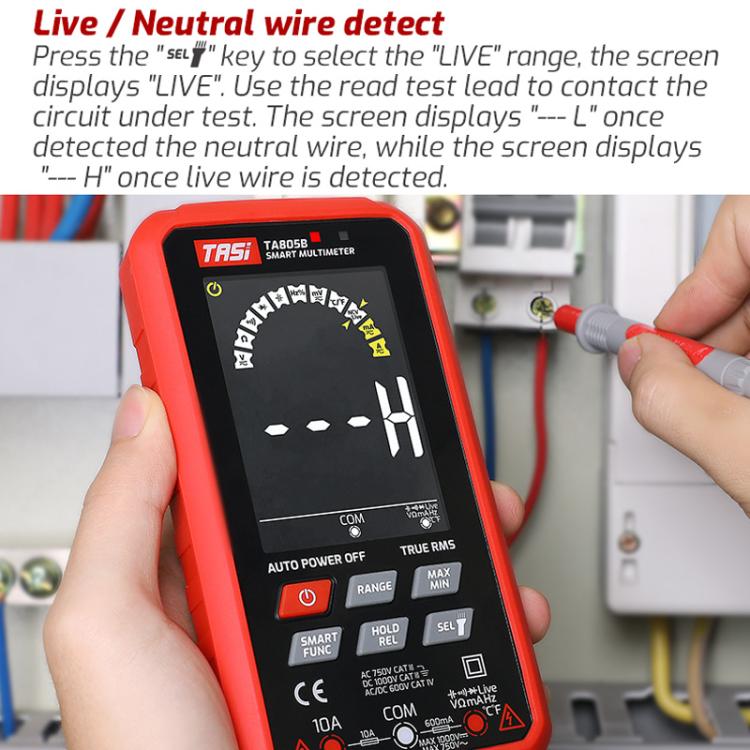

4. Live/neutral wire identification: touch the live wire and neutral wire separately with the red probe; the live wire will trigger a red indicator light alarm, while the neutral wire will not

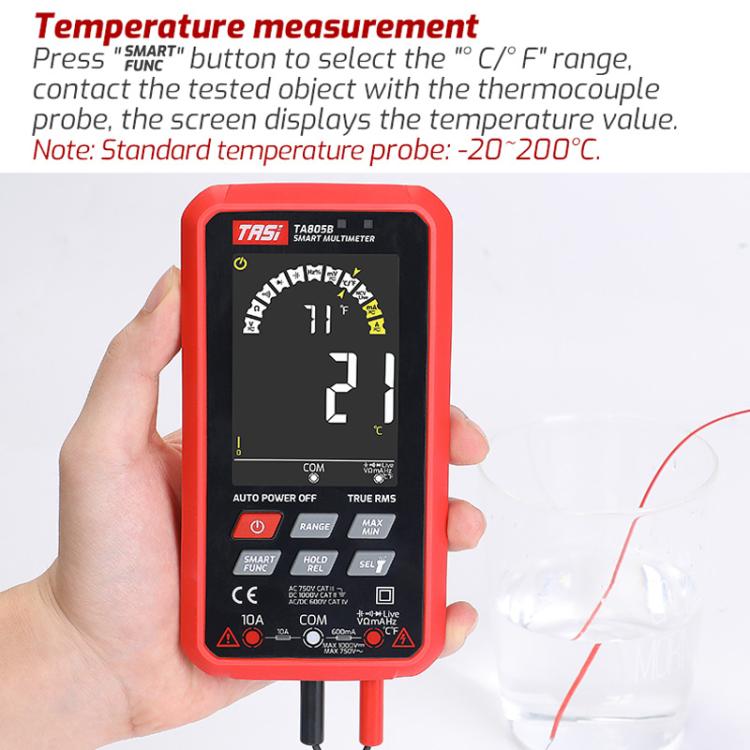

5. Temperature measurement: place the temperature probe into the liquid being tested; the display shows both Celsius and Fahrenheit simultaneously

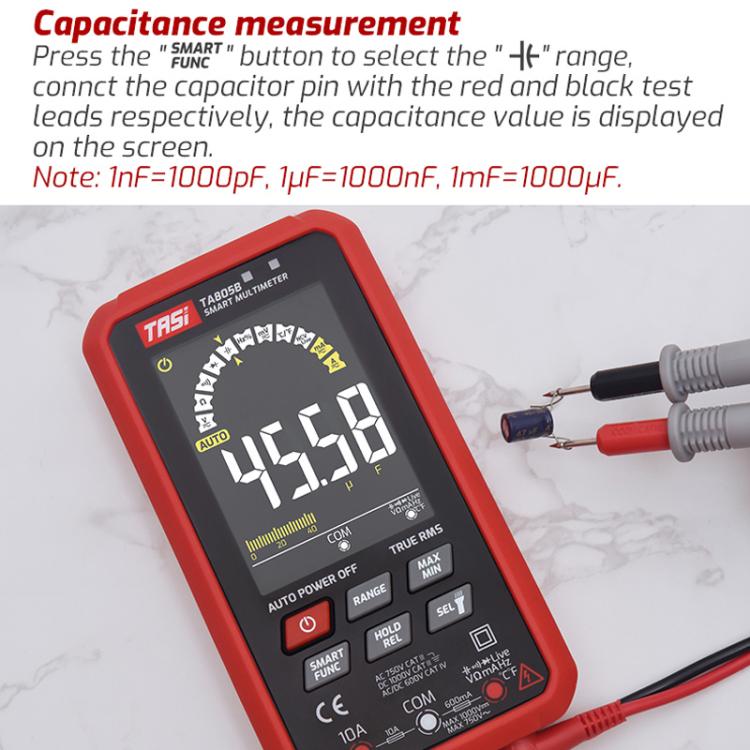

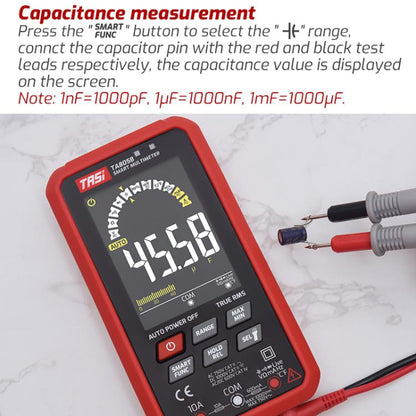

6. Capacitance measurement: touch the red and black probes to the two terminals of the capacitor; read the value once it stabilizes
7. Protective case: made of soft PVC material, effectively protects against dust, shocks, and drops

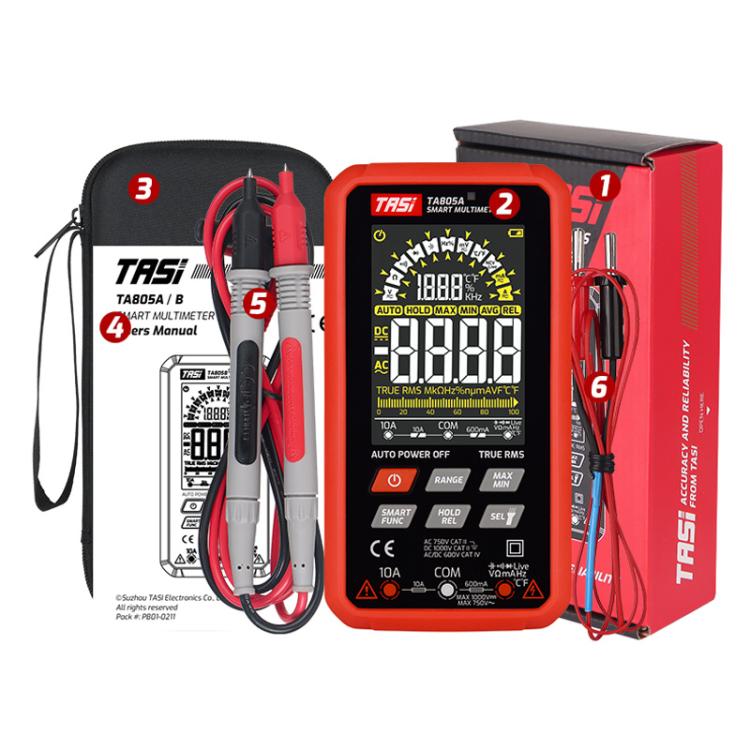

Package list:
1. Multimeter x 1
2. Test leads x 2
3. Thermocouples x 2
4. Carrying case x 1
5. User manual x 1
