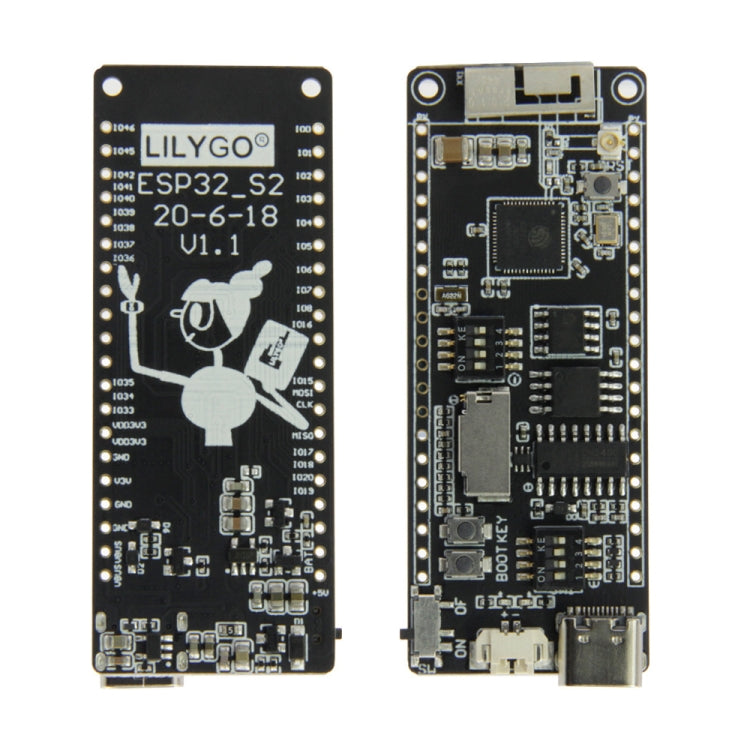

TTGO ESP32-S WiFi Wireless Module Type-C Connector TF Card Slot Development Board
TTGO ESP32-S WiFi Wireless Module Type-C Connector TF Card Slot Development Board
SKU: DIY5123
Regular price
£18.89
Regular price
Sale price
£18.89
Duties & Import Tax Information
Duties are only included if shown at checkout. Otherwise, your local government may apply customs fees, which your courier will collect directly from you before delivery.
In Stock
CHN
This item is shipped from China.
Processed in 0–3 days
Quantity
Couldn't load pickup availability
Shipping info
To find all available shipping methods and exact delivery times, add the product to your cart and check using our shipping calculator.
30-day returns
Fast refunds: Once we receive and check your item, we aim to process your refund within 48 hours.
Return postage: Just changed your mind? You'll need to cover the return postage. If the item arrived faulty, we'll cover the cost to get it back to us.
Your details are safe
We treat your data the way we'd want ours treated. Your payment details are locked down with bank-level encryption. We never actually see your credit card numbers, and we will absolutely never sell your personal information.
Hardware specifications
1. Chipset: ESPRESSIF-ESP32-S2
2. Flash: 4MB
3. Static SRAM: 8MB
4. SRAM: 520 kB SRAM
5. Buttons: power switch, base, start, custom
6. External device: TF card
7. USB to TTL: CH340C
8. Modular interface: SD card, UART, SPI, I2C, PWM, I2S, ADC
9. Vehicle clock: 32.768KHz crystal oscillator
10. Working voltage: 2.7V to 3.6V
11. Operating temperature range: -40 degrees Celsius ~ + 85 degrees Celsius
12. Dimensions: 63 x 30 x 6.6mm
13. Weight: 7g
Power Specifications
1. Power input: USB 5V / 1A
2. Charging current: 500 mA
3. Battery input: 3.7-4.2V
4. JST connector: 2-pin 1.25mm
5. USB: Type C USB
WiFi
1. Standard: FCC / CE-RED / IC / TELEC / KCC / SRRC / NCC (esp32 chip)
2. Protocol: 802.11 b / g / n (802.11n, speed up to 150Mbps, A-MPDU and A-MSDU aggregation, support 0.4uS guard interval
3. Frequency range: 2.4GHz~2.5GHz (2400M`2483.5M)
4. Transmit power: 22dBm
5. Communication distance: 300m
1. Chipset: ESPRESSIF-ESP32-S2
2. Flash: 4MB
3. Static SRAM: 8MB
4. SRAM: 520 kB SRAM
5. Buttons: power switch, base, start, custom
6. External device: TF card
7. USB to TTL: CH340C
8. Modular interface: SD card, UART, SPI, I2C, PWM, I2S, ADC
9. Vehicle clock: 32.768KHz crystal oscillator
10. Working voltage: 2.7V to 3.6V
11. Operating temperature range: -40 degrees Celsius ~ + 85 degrees Celsius
12. Dimensions: 63 x 30 x 6.6mm
13. Weight: 7g
Power Specifications
1. Power input: USB 5V / 1A
2. Charging current: 500 mA
3. Battery input: 3.7-4.2V
4. JST connector: 2-pin 1.25mm
5. USB: Type C USB
WiFi
1. Standard: FCC / CE-RED / IC / TELEC / KCC / SRRC / NCC (esp32 chip)
2. Protocol: 802.11 b / g / n (802.11n, speed up to 150Mbps, A-MPDU and A-MSDU aggregation, support 0.4uS guard interval
3. Frequency range: 2.4GHz~2.5GHz (2400M`2483.5M)
4. Transmit power: 22dBm
5. Communication distance: 300m
Verified Compatible
Guaranteed fit for device in the title. Wrong part? Full refund including shipping.
