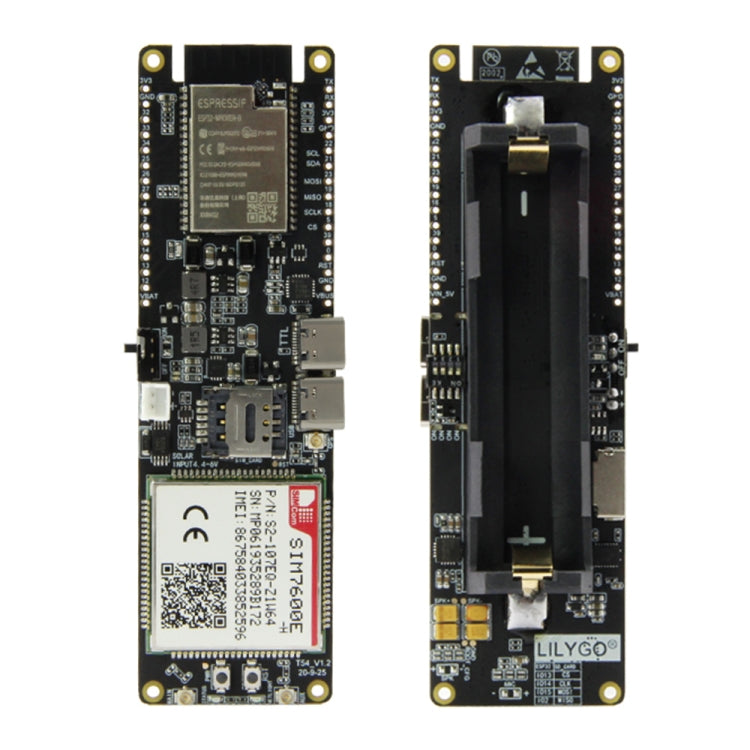

TTGO T-SIM7600E-H ESP32 WiFi Bluetooth 18560 Battery Holder Solar Charge Module Development Board
TTGO T-SIM7600E-H ESP32 WiFi Bluetooth 18560 Battery Holder Solar Charge Module Development Board
SKU: DIY6152
Regular price
£95.29
Regular price
Sale price
£95.29
Duties & Import Tax Information
Duties are only included if shown at checkout. Otherwise, your local government may apply customs fees, which your courier will collect directly from you before delivery.
In Stock
CHN
This item is shipped from China.
Processed in 0–3 days
Quantity
Couldn't load pickup availability
Shipping info
To find all available shipping methods and exact delivery times, add the product to your cart and check using our shipping calculator.
30-day returns
Fast refunds: Once we receive and check your item, we aim to process your refund within 48 hours.
Return postage: Just changed your mind? You'll need to cover the return postage. If the item arrived faulty, we'll cover the cost to get it back to us.
Your details are safe
We treat your data the way we'd want ours treated. Your payment details are locked down with bank-level encryption. We never actually see your credit card numbers, and we will absolutely never sell your personal information.
Product Description Hardware Specifications:
1. Main chip: ESP32
2. Module: ESP32-WROVER-B,SIM7600E-H
3. Interface:USB,SD Card,Solar Input interface
4. Flash Memory: 4M Flash / 8M PSRAM
5. Button: Reset,Power switch
6. USB to TTL: CP2104
7. Car Clock: 40MHz
8. SIM Card Size: Nano SIM Card
9. SIM Antenna
10. GPS Antenna
11. Operating Temperature Range: -40-85 degrees
12. Product Size: 111mm x 37mm x 20mm
13. Product Weight: 50g
Power Specifications:
1. Working Voltage: 5V input
2. Solar input voltage range???4.4-6V
3. Working Curent: About 200mA
4. Charging Current: 780mA
5. Battery Model: 18650
6. Battery Holder Model: 18650 battery holder
7. JST Connector: 2pin 2mm
8. USB: TYPE-C 3.0
Wi-Fi:
1. Standard: FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC
2. Protocol: 802.11 b/g/n(802.11n???speed up to150Mbps)A-MPDU and A-MSDU polymerization???support 0.4??S Protection interval
3. Frequency: range 2.4GHz~2.5GHz(2400M~2483.5M)
4. Transmit Power: 22dBm
5. Communication distance: 300m
Bluetooth:
1. Protocol meet Bluetooth : v4.2BR/EDR and BLE standard
2. Radio Frequency : with -97dBm sensitivity NZIF receiver Class-1, Class-2&Class-3 emitter AFH
3. Audio Frequency : CVSD&SBC audio frequency
Software Specification:
1. Wi-Fi Mode : Station/SoftAP/SoftAP+Station/P2P
2. Security Mechanism : WPA/WPA2/WPA2-Enterprise/WPS
3. Encryption Type : AES/RSA/ECC/SHA
4. Firmware Upgrade :UART download/OTA???Through network/host to download and write firmware???
5. Software Development : Support cloud server development /SDK for user firmware development
6. Networking Protocol : IPV4, IPV6, SSL, TCP/UDP/HTTP/FTP/MQTT
7. User Configuration : AT + Instruction set, cloud server, Android/iOS APP
8. OS : FreeRTOS
Version update function:
1. The batterys positive and negative poles are connected to the wrong protection, overcharge and over discharge protection
2. GPS power control, reduce power consumption, the lowest reaches 300uA when sleeping
3. Replacement of ordinary charging IC with solar charging IC
1. Main chip: ESP32
2. Module: ESP32-WROVER-B,SIM7600E-H
3. Interface:USB,SD Card,Solar Input interface
4. Flash Memory: 4M Flash / 8M PSRAM
5. Button: Reset,Power switch
6. USB to TTL: CP2104
7. Car Clock: 40MHz
8. SIM Card Size: Nano SIM Card
9. SIM Antenna
10. GPS Antenna
11. Operating Temperature Range: -40-85 degrees
12. Product Size: 111mm x 37mm x 20mm
13. Product Weight: 50g
Power Specifications:
1. Working Voltage: 5V input
2. Solar input voltage range???4.4-6V
3. Working Curent: About 200mA
4. Charging Current: 780mA
5. Battery Model: 18650
6. Battery Holder Model: 18650 battery holder
7. JST Connector: 2pin 2mm
8. USB: TYPE-C 3.0
Wi-Fi:
1. Standard: FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC
2. Protocol: 802.11 b/g/n(802.11n???speed up to150Mbps)A-MPDU and A-MSDU polymerization???support 0.4??S Protection interval
3. Frequency: range 2.4GHz~2.5GHz(2400M~2483.5M)
4. Transmit Power: 22dBm
5. Communication distance: 300m
Bluetooth:
1. Protocol meet Bluetooth : v4.2BR/EDR and BLE standard
2. Radio Frequency : with -97dBm sensitivity NZIF receiver Class-1, Class-2&Class-3 emitter AFH
3. Audio Frequency : CVSD&SBC audio frequency
Software Specification:
1. Wi-Fi Mode : Station/SoftAP/SoftAP+Station/P2P
2. Security Mechanism : WPA/WPA2/WPA2-Enterprise/WPS
3. Encryption Type : AES/RSA/ECC/SHA
4. Firmware Upgrade :UART download/OTA???Through network/host to download and write firmware???
5. Software Development : Support cloud server development /SDK for user firmware development
6. Networking Protocol : IPV4, IPV6, SSL, TCP/UDP/HTTP/FTP/MQTT
7. User Configuration : AT + Instruction set, cloud server, Android/iOS APP
8. OS : FreeRTOS
Version update function:
1. The batterys positive and negative poles are connected to the wrong protection, overcharge and over discharge protection
2. GPS power control, reduce power consumption, the lowest reaches 300uA when sleeping
3. Replacement of ordinary charging IC with solar charging IC
