Waveshare 2.13 inch 212 x 104 Pixel Black / White Flexible E-Paper E-Ink Display Module for Raspberry Pi Pico, SPI Interface
Waveshare 2.13 inch 212 x 104 Pixel Black / White Flexible E-Paper E-Ink Display Module for Raspberry Pi Pico, SPI Interface
🔥 Buy 1 item, get 25% off another 🔥 Ends today!
Couldn't load pickup availability
Shipping Guarantee
Shipping Guarantee
FREE SHIPPING on all UK orders. Fully Insured.
Handling time 1 - 3 working days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)
Transit time 5 - 10 working days.
Return Guarantee
Return Guarantee
For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.
DOA Guarantee
DOA Guarantee
If your item arrives damaged, please contact us within 7 days and provide clear and valid proof. Buy2fix will make compensation based on the damage situation.
Missing/Wrong Items Guarantee
Missing/Wrong Items Guarantee
If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. Buy2fix will make compensation based on the damage situation.
1. Flexible e-Paper panel, the display section is bendable (DONOT bend the FPC section)
2. No backlight, keeps displaying last content for a long time even when power down
3. Ultra low power consumption, basically power is only required for refreshing
4. SPI interface, requires minimal IO pins
5. 2x user buttons and 1x reset button for easy interacting
6. Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Specification
1. Operating voltage: 3.3V
2. Display color: Black, white
3. Resolution: 212 x 104 pixels
4. Grey scale: 2
5. Interface: 3-wire SPI, 4-wire SPI
6. Viewing angle: Greater than 170 degree
7. Partial refresh time: N/A
8. Full refresh time: 5s
9. Dimensions: 59.2 x 29.2mm
10. Display size: 48.55 x 23.71mm
11. Refresh power: 26.4mW (typ.)
12. Standby current: Less than 0.01uA (almost none)
13. Dot pitch: 0.229 x 0.228mm
Advantages Of EINK
1. E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
2. E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180 degree viewing angle. It is usually used as e-reader due to its paper-like effect.

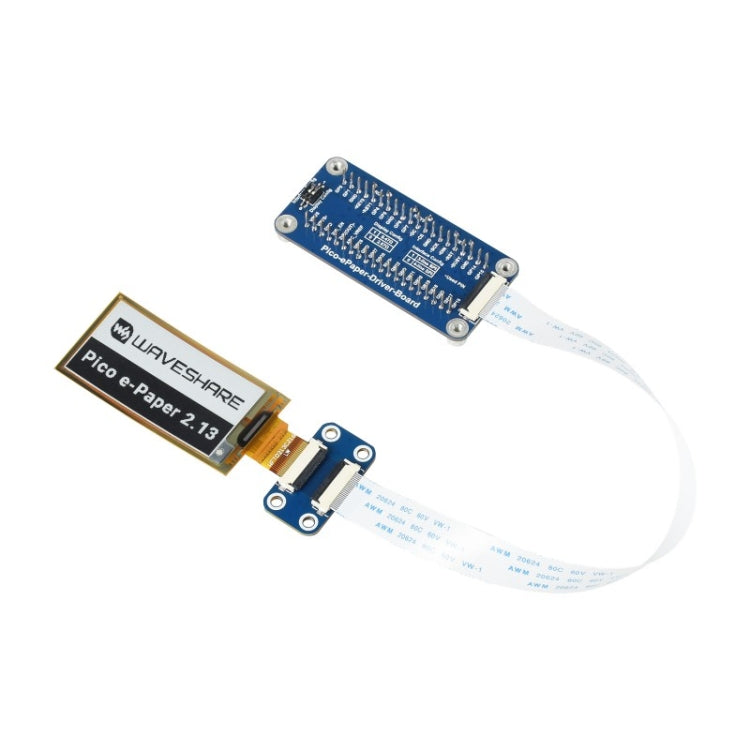

Package List
1. 2.13 inch e-Paper (D) x1
2. Pico-ePaper-Driver-Board x1
3. Standoff pack x1
