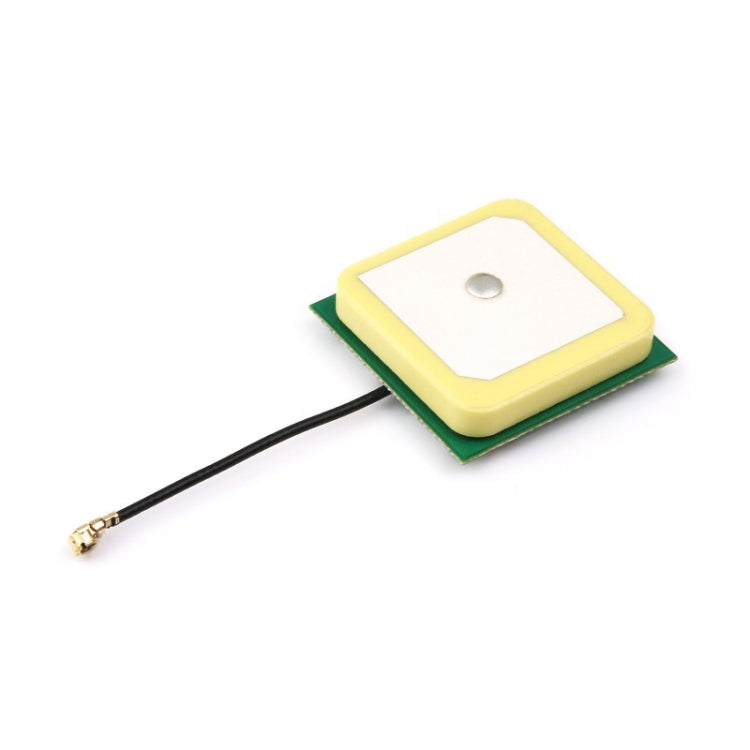

Waveshare 24095 GNSS Active Ceramic Positioning Antenna, IPEX 1 Connector
Waveshare 24095 GNSS Active Ceramic Positioning Antenna, IPEX 1 Connector
🔥 Buy 1 item, get 25% off another 🔥 Ends today!
Couldn't load pickup availability
Shipping Guarantee
Shipping Guarantee
FREE SHIPPING on all UK orders. Fully Insured.
Handling time 1 - 3 working days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)
Transit time 5 - 10 working days.
Return Guarantee
Return Guarantee
For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.
DOA Guarantee
DOA Guarantee
If your item arrives damaged, please contact us within 7 days and provide clear and valid proof. Buy2fix will make compensation based on the damage situation.
Missing/Wrong Items Guarantee
Missing/Wrong Items Guarantee
If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. Buy2fix will make compensation based on the damage situation.
1. GNSS active ceramic positioning antenna supports BD, GPS, GLONASS and other satellite positioning systems
2. Center frequency: 1575.42MHz, 1561MHz, 1602.56MHz
3. Output impedance: 50 ohms
4. Noise: less than or equal to 1.5 decibels
5. Plug: IPEX 1

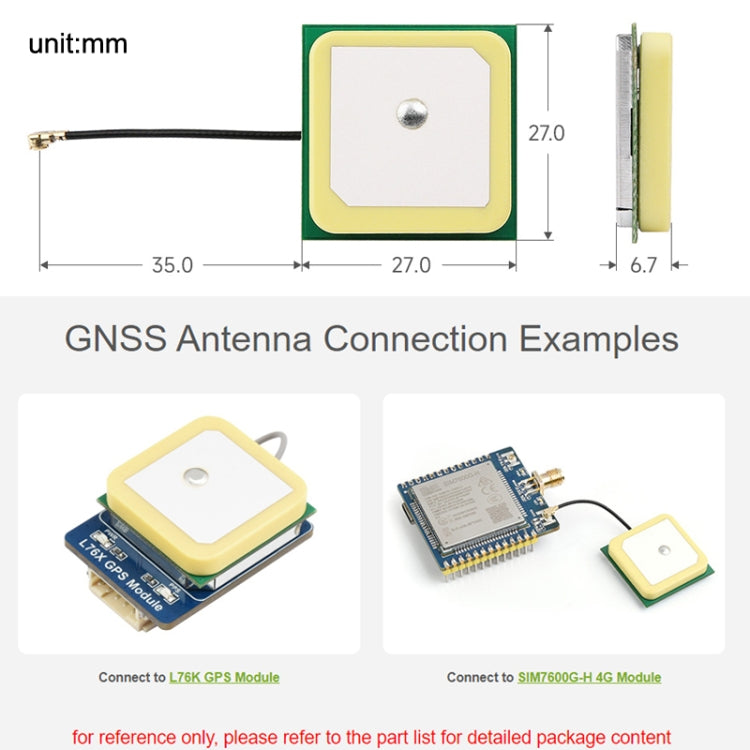

6. Cable length: 35mm
7. Ceramic size: 25 x 25mm
8. Current consumption: less than 10mA
9. Power supply: DC 3.3-5v
10. Operating temperature: -20 to 65 degrees Celsius
11. Input power: 50w
12. Axial ratio: 3dB
13. Radiation direction: omnidirectional
