Waveshare 34201 ESP32-C6 2.16 Inch AMOLED Display Touch Screen Development Board Supports Dual Microphones, Wi-Fi 6 And BLE 5 No Battery
Waveshare 34201 ESP32-C6 2.16 Inch AMOLED Display Touch Screen Development Board Supports Dual Microphones, Wi-Fi 6 And BLE 5 No Battery
SKU: TBD0606809101
Regular price
£42.39
Regular price
Sale price
£42.39
Duties & Import Tax Information
Duties are only included if shown at checkout. Otherwise, your local government may apply customs fees, which your courier will collect directly from you before delivery.
In Stock
CHN
This item is shipped from China.
Processed in 0–3 days
Quantity
Couldn't load pickup availability
Shipping info
To find all available shipping methods and exact delivery times, add the product to your cart and check using our shipping calculator.
30-day returns
Fast refunds: Once we receive and check your item, we aim to process your refund within 48 hours.
Return postage: Just changed your mind? You'll need to cover the return postage. If the item arrived faulty, we'll cover the cost to get it back to us.
Your details are safe
We treat your data the way we'd want ours treated. Your payment details are locked down with bank-level encryption. We never actually see your credit card numbers, and we will absolutely never sell your personal information.

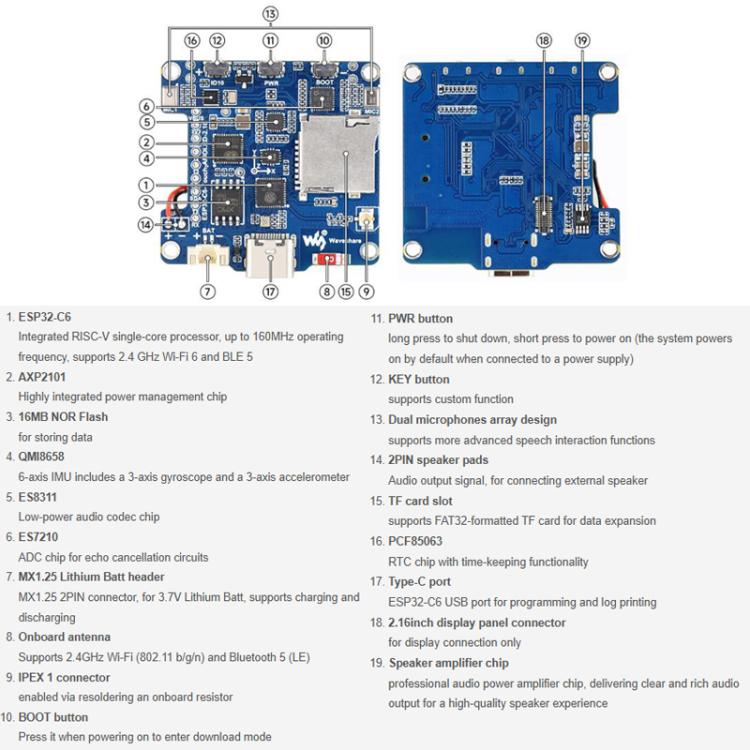

1. Equipped with the ESP32-C6 high-performance 32-bit RISC-V processor, with a main frequency of up to 160 MHz

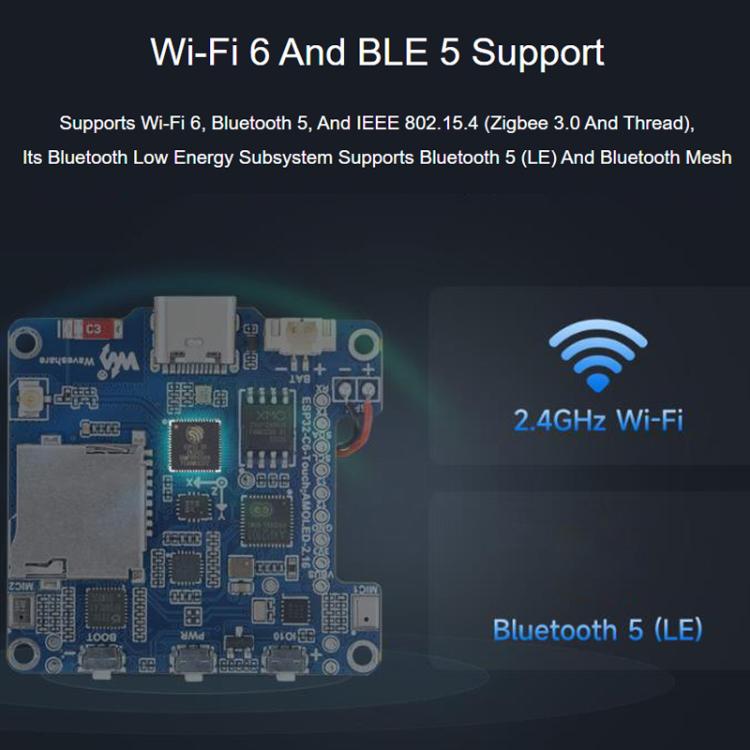

2. Supports Wi-Fi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, featuring excellent radio performance and an onboard antenna
3. Built-in 512KB HP SRAM, 16KB LP SRAM and 320KB ROM, with an external 16MB Flash
4. Utilizes the Type-C interface, enhancing user convenience and device compatibility

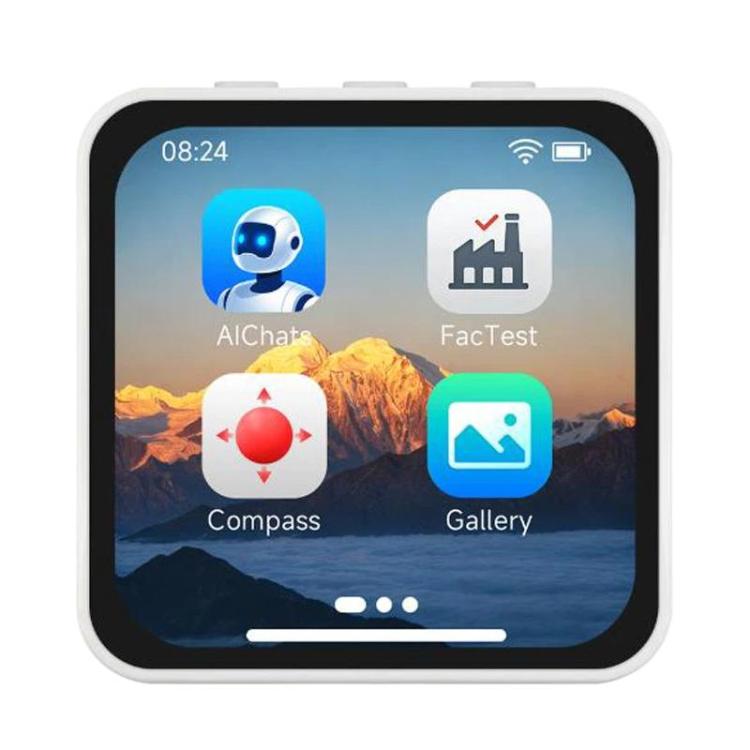

5. Equipped with a 2.16-inch capacitive touch high-definition AMOLED screen, with a resolution of 480 x 480, 16.7M colors, capable of clearly displaying color images

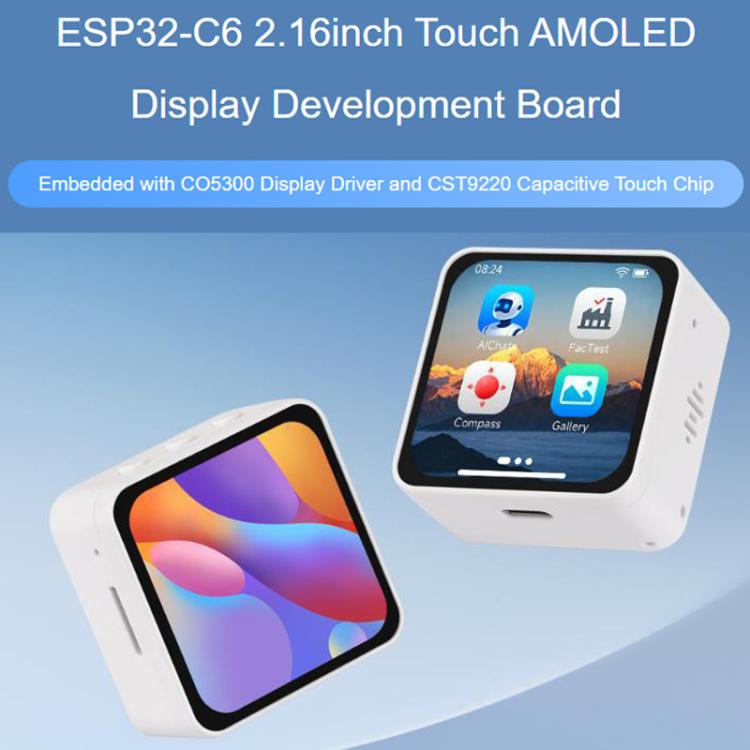

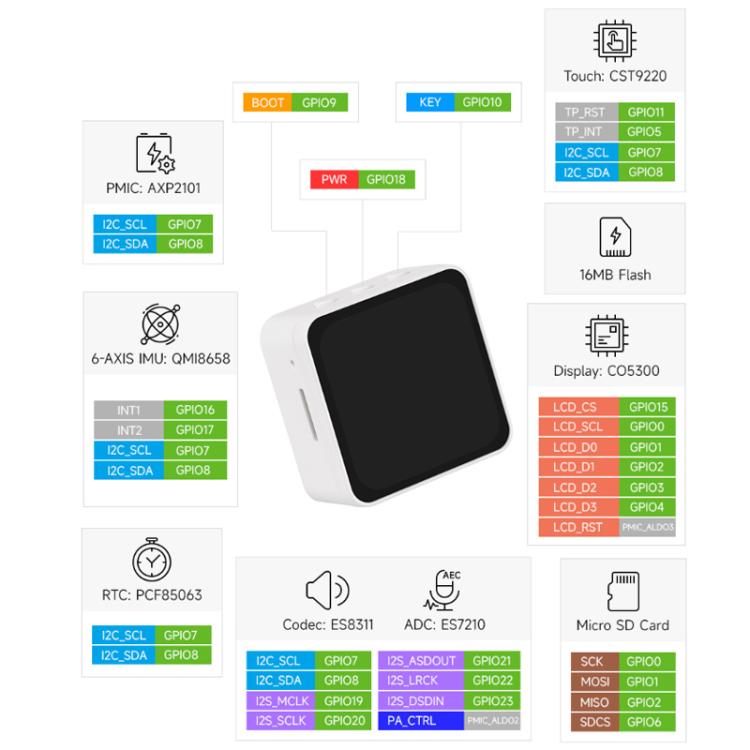

6. Built-in CO5300 driver chip and CST9220 capacitive touch chip, communicating via QSPI and I2C interfaces respectively, without occupying excessive interface pin resources
7. Built-in QMI8658 six-axis inertial measurement unit (3-axis acceleration, 3-axis gyroscope), capable of detecting motion posture, step counting and other functions
8. Built-in PCF85063 RTC chip, connected to the battery through AXP2101, achieving uninterrupted power supply
9. Built-in two customizable side buttons, KEY and BOOT, facilitating the development of custom functions using the buttons
10. Built-in 3.7V MX1.25 lithium battery charging and discharging interface
11. Exports 1 I2C, 1 UART and 1 USB pad, available for external devices and debugging use
12. The benefits of using AMOLED screen include efficient power management, support for multiple output voltages, charging and battery management functions, and optimization of battery life

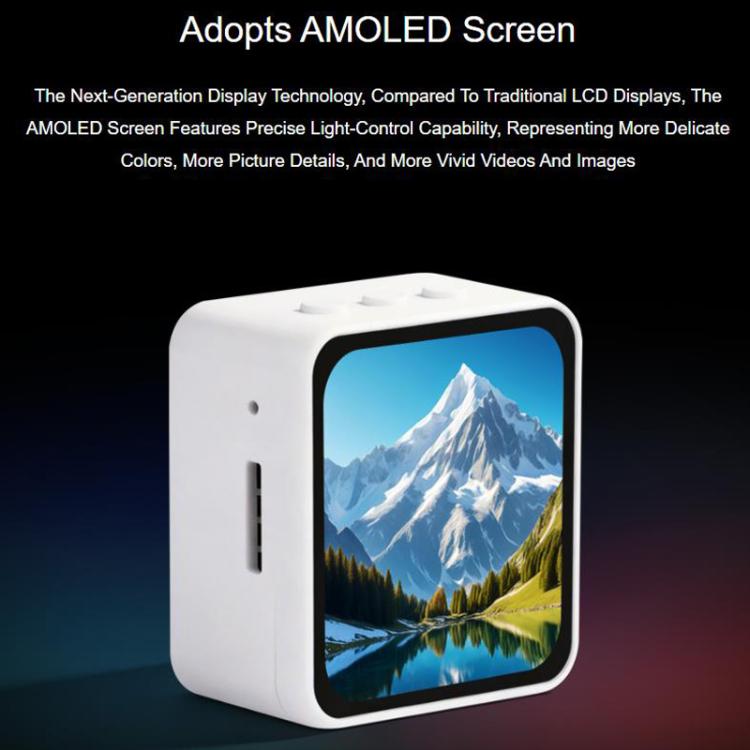

13. Using AMOLED screen, one can achieve higher contrast, wider viewing angle, richer colors and faster response, and the body is thin, with low power consumption and flexibility advantages
Parameters
1. Display panel: AMOLED
2. Display resolution: 480 x 480 pixels
3. Display brightness: 600cd/square meter
4. Communication interface: QSPI
5. Touch control: upported
6. Display size: 2.16 inches
7. Display color: 16.7M
8. Contrast ratio: 100000:1
9. Driving IC: CO5300
10. Touch IC: CST9220
