Waveshare AW9523B IO Expansion Board, I2C Interface, Expands 16 I/O Pins
Waveshare AW9523B IO Expansion Board, I2C Interface, Expands 16 I/O Pins
SKU: DIY0290
Regular price
£13.09
Regular price
Sale price
£13.09
Duties & Import Tax Information
Duties are only included if shown at checkout. Otherwise, your local government may apply customs fees, which your courier will collect directly from you before delivery.
In Stock
CHN
This item is shipped from China.
Processed in 0–3 days
Quantity
Couldn't load pickup availability
Shipping info
To find all available shipping methods and exact delivery times, add the product to your cart and check using our shipping calculator.
30-day returns
Fast refunds: Once we receive and check your item, we aim to process your refund within 48 hours.
Return postage: Just changed your mind? You'll need to cover the return postage. If the item arrived faulty, we'll cover the cost to get it back to us.
Your details are safe
We treat your data the way we'd want ours treated. Your payment details are locked down with bank-level encryption. We never actually see your credit card numbers, and we will absolutely never sell your personal information.
Features

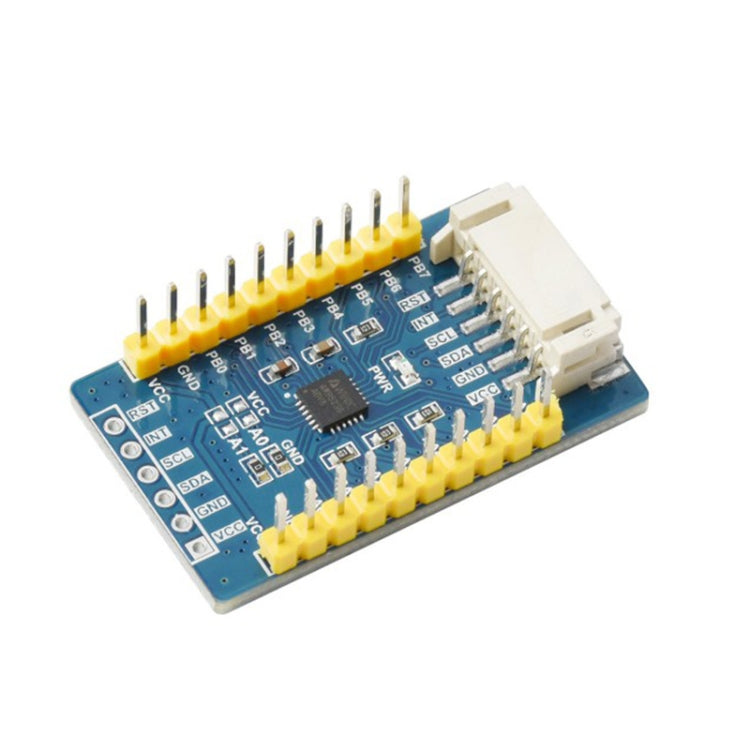

1. I2C bus, allows expanding 16 I/O ports by just using two wires
2. Support driving 16-ch common anode constant current LED, 256-step linear dimming, current controllable
3. Output interrupt (INT) signal when changing the state of an input port
4. I2C address configurable by shorting the A0/A1 jumpers
5. Provide two connector options: PH2.0 header and/or solder pads, allows multi I2C modules to be stacked
6. Onboard voltage translator, compatible with 3.3V/5V level
7. Come with development resources and manual (examples for Raspberry Pi / micro:bit / Arduino / STM32)
Specifications
1. Working voltage: 2.4-5.5V
2. Working temperature: -40-85 degree c
3. Low Standby Current: Less than 0.1uA
4. Control interface: I2C
5. Expansion I/O pins: 16
6. Size: 38x23mm
Package List
1. AW9523B IO Expansion Board x 1
2. PH2.0 6PIN wire x 1
1. I2C bus, allows expanding 16 I/O ports by just using two wires
2. Support driving 16-ch common anode constant current LED, 256-step linear dimming, current controllable
3. Output interrupt (INT) signal when changing the state of an input port
4. I2C address configurable by shorting the A0/A1 jumpers
5. Provide two connector options: PH2.0 header and/or solder pads, allows multi I2C modules to be stacked
6. Onboard voltage translator, compatible with 3.3V/5V level
7. Come with development resources and manual (examples for Raspberry Pi / micro:bit / Arduino / STM32)
Specifications
1. Working voltage: 2.4-5.5V
2. Working temperature: -40-85 degree c
3. Low Standby Current: Less than 0.1uA
4. Control interface: I2C
5. Expansion I/O pins: 16
6. Size: 38x23mm
Package List
1. AW9523B IO Expansion Board x 1
2. PH2.0 6PIN wire x 1
