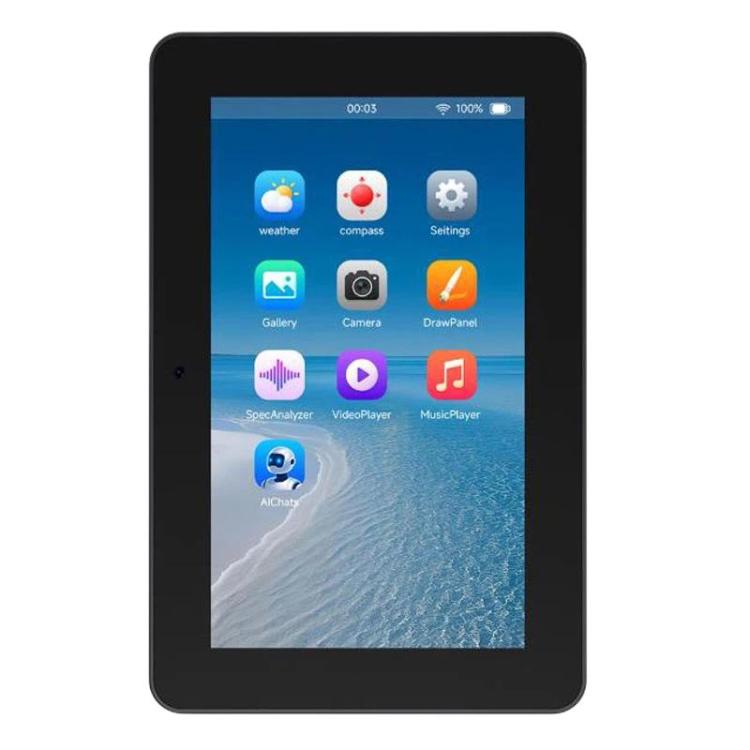

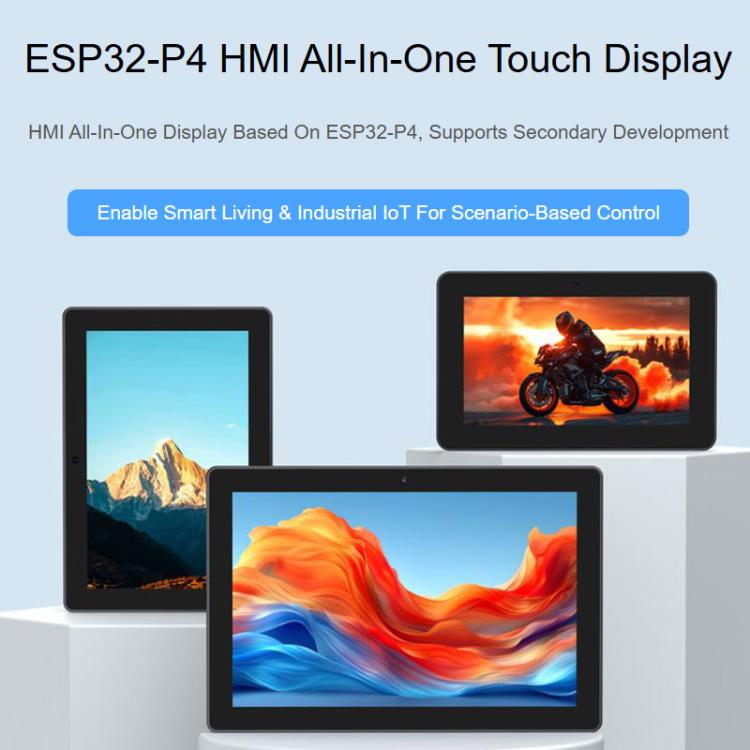

Waveshare ESP32-P4-WIFI6 HMI All-In-One Touch Display Development Board 10-Point Touch, Spec: 7 inch

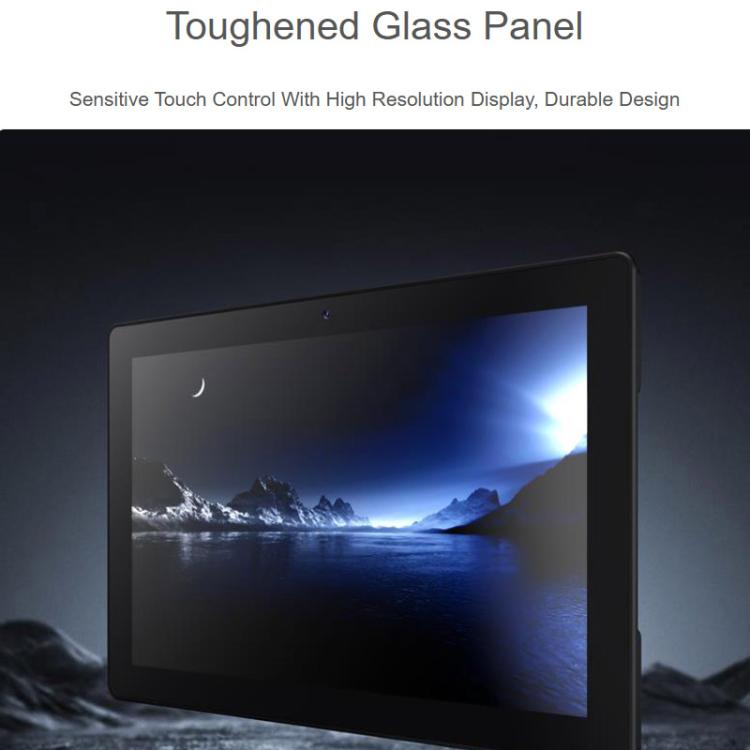

1. Tempered glass panel screen with responsive touch, high-definition display, and durable design

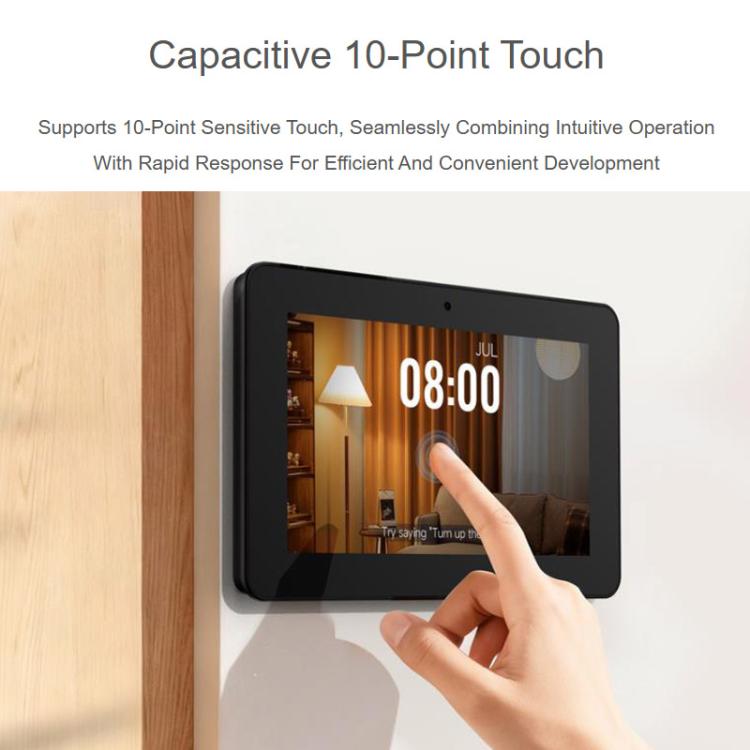

2. Capacitive 10-point touchscreen featuring sensitive touch, intuitive operation, and rapid response for efficient and convenient development

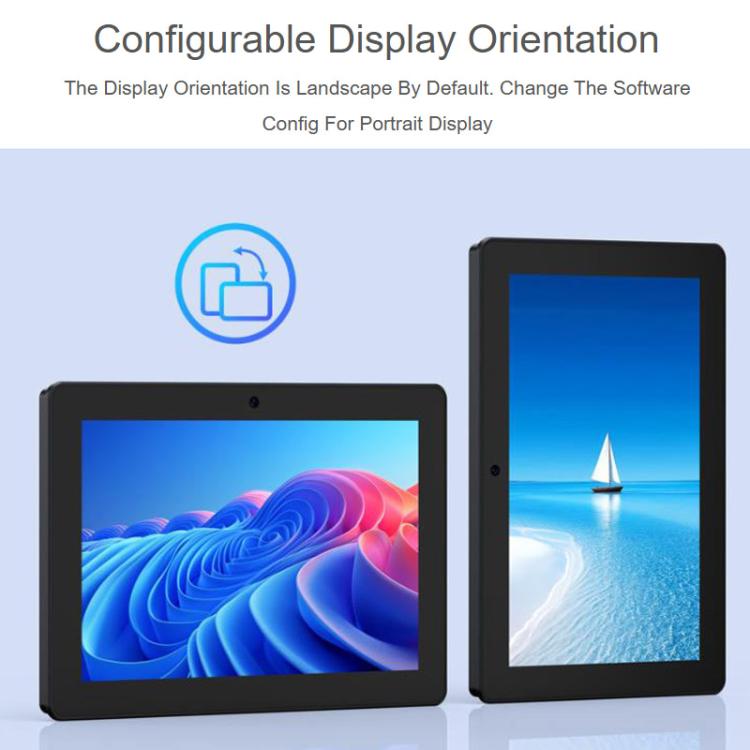

3. Supports landscape and portrait display modes. Default setting is landscape; portrait mode can be enabled via software configuration

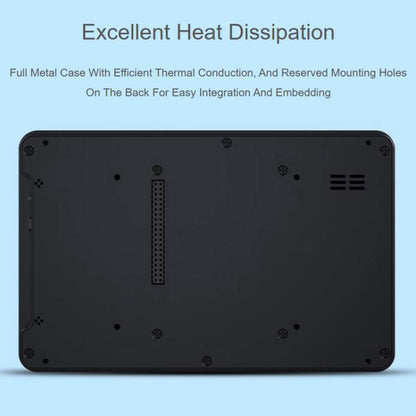

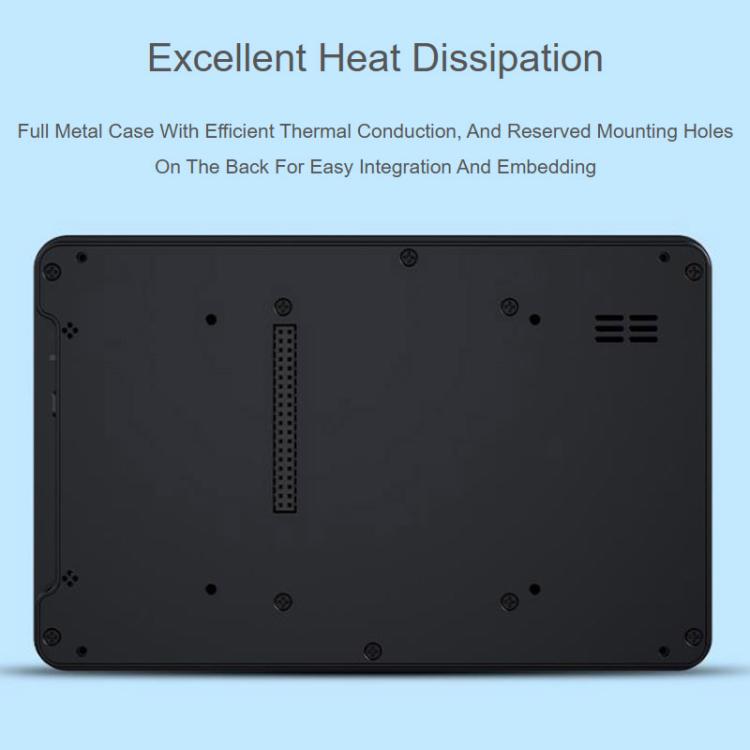

4. Excellent heat dissipation with all-metal housing and efficient thermal design. Pre-drilled mounting holes on the back facilitate integration and embedding.

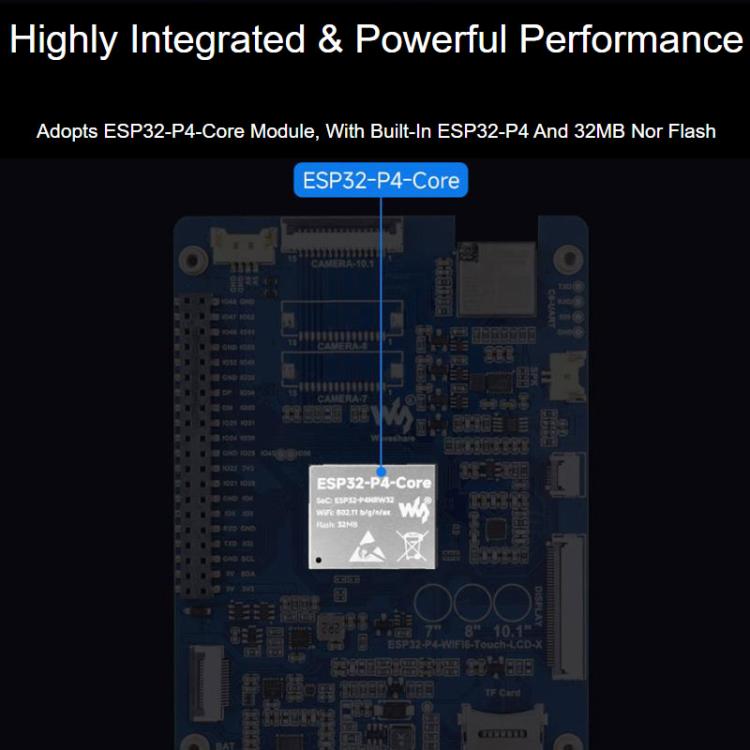

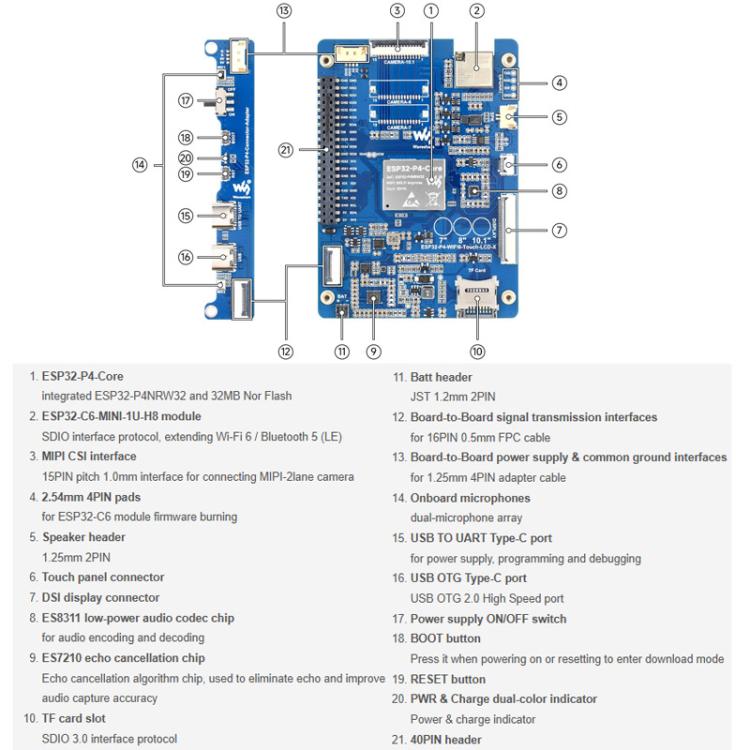

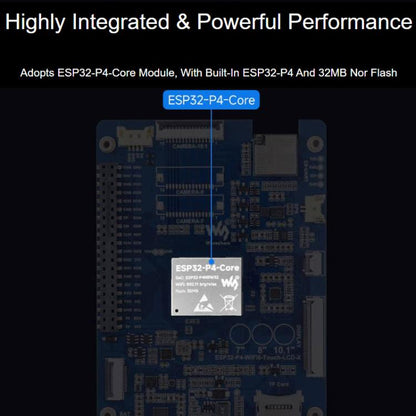

5. Highly integrated with powerful performance, featuring an ESP32-P4-Core module design. Includes built-in ESP32-P4 and 32MB NOR Flash.

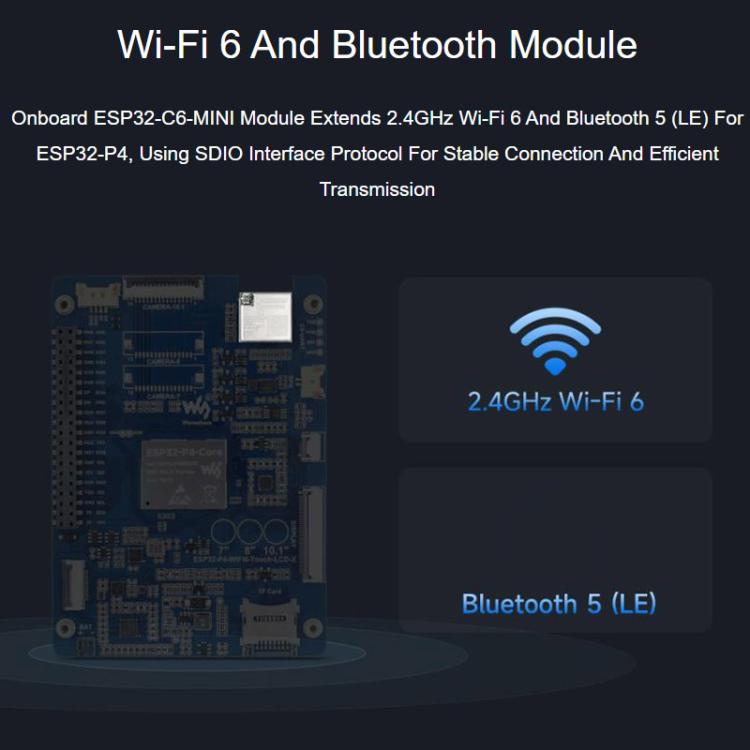

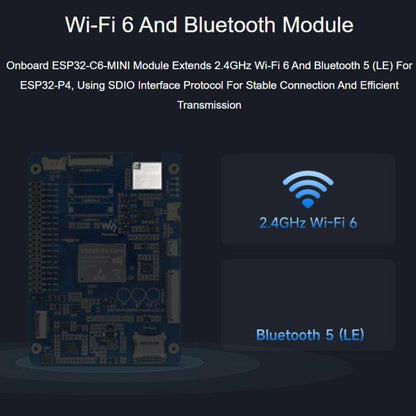

6. Onboard ESP32-C6-MINI module extends ESP32-P4 with 2.4GHz Wi-Fi 6 and Bluetooth 5 (LE), communicating via SDIO protocol for stable connections and efficient data transfer

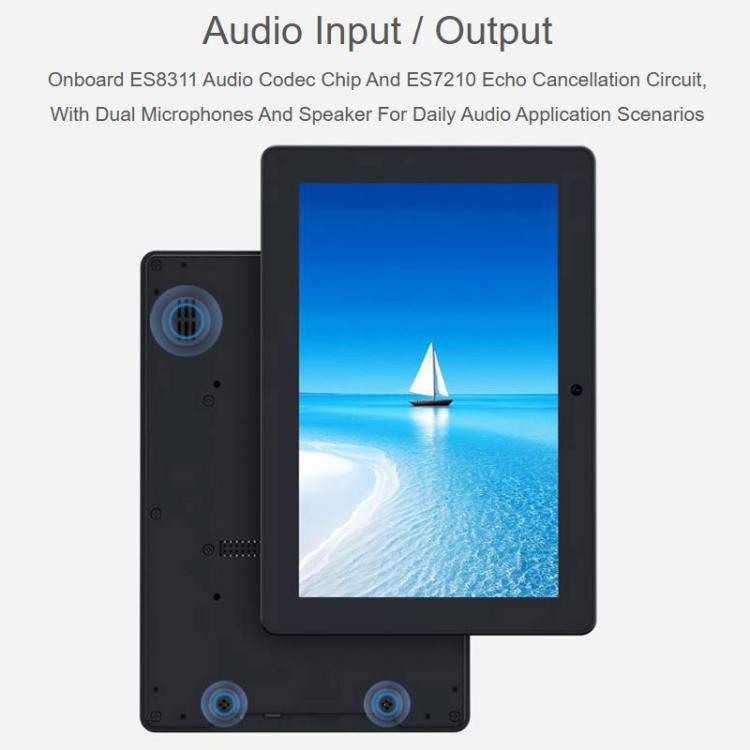

7. Onboard ES8311 audio codec and ES7210 echo cancellation circuit, paired with dual microphones and speaker to meet daily audio application needs

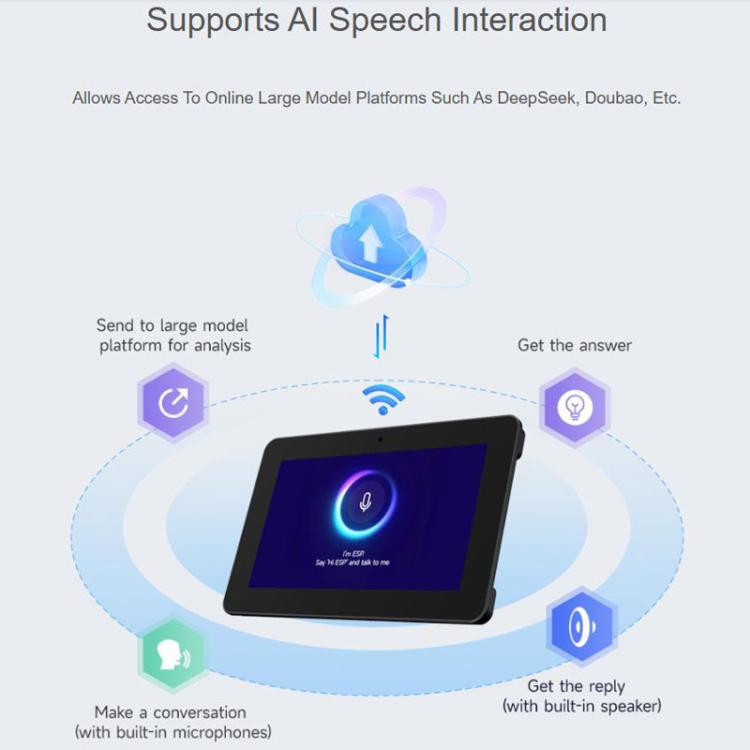

8. Supports AI voice interaction with mainstream AI platforms, enabling integration with online large model platforms, such as Doubao, DeepSeek, and other AI models

Screen specifications
1. Resolution: 7 inch: 120 x 1280; 8 inch/10.1 inch: 800 x 1280
2. Communication interface: MIPI 2-lane
3. Brightness: 7 inch: 450 cd/square meter; 8 inch/10.1 inch: 400 cd/square meter
4. Driver chip: 7 inch: ILI9881C; 8 inch/10.1 inch: JD9365
5. Touch chip: GT9271

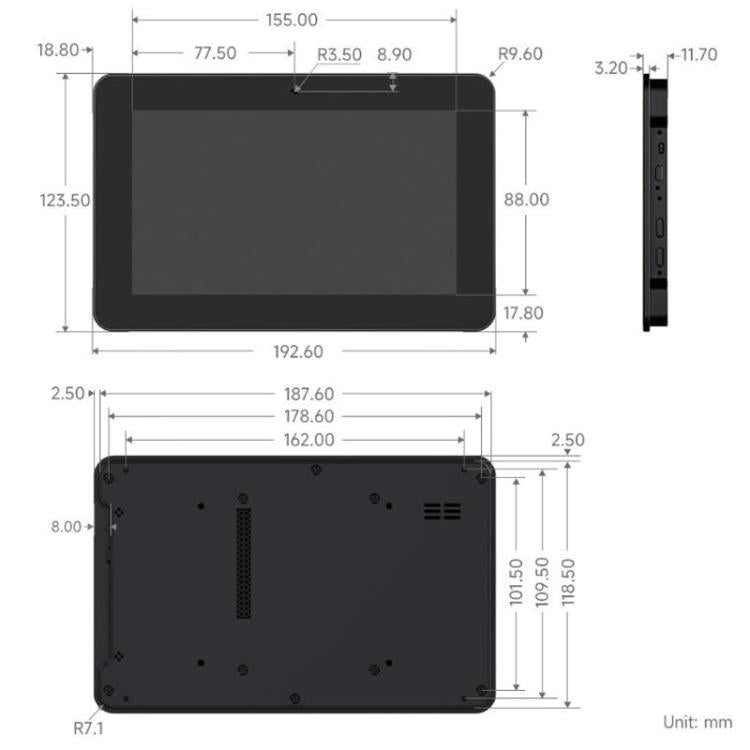

6. Display size: 7 inch: 8.8 x 15.5cm; 8 inch: 10.824 x 172.82cm; 10.1 inch: 13.596 x 21.718 cm
7. Contrast ratio: 7 inch: 800:1; 8 inch: 1200:1; 10.1 inch: 800:1
8. Viewing angle: 7 inch: 170°; 8 inch/10.1 inch: 178°
9. Operating temperature: 0-60°C
10. Pixel size: 7 inch: 0.12075 x 0.12075mm; 8 inch: 0.13455 x 0.13455mm; 10.1 inch: 0.1692 x 0.1692mm

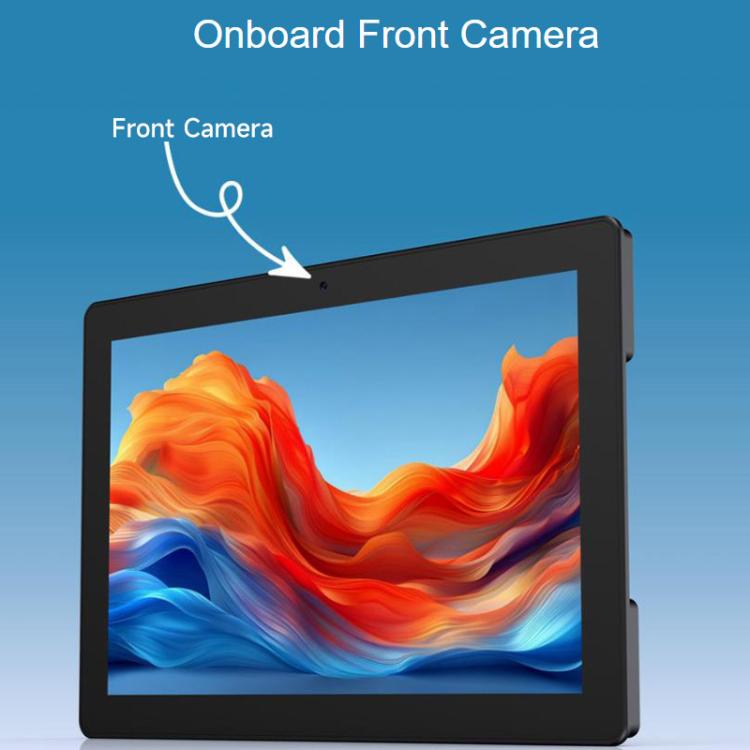

Front camera specifications
1. Image sensor: OV5647
2. CMOS size: 1/4 inch
3. Pixels: 5 megapixels
4. Aperture: F2.4
5. Focal length: 3.89mm
6. Diagonal field of view: 72.9°
7. Distortion: less than 1.5%
8. Depth of field: 20cm to infinity
9. Image: static image resolution 2592 x 1944 pixels
10. Video: 1920 x 1080p at 30fps, 1280 x 720p at 60fps, 640 x 480p at 60fps, 640 x 480p at 90fps

Packaging list:
- Host x 1
- RPI-HMI press plate x 4
- Screw pack x 1
- 2PIN battery terminal about 80mm x 1
