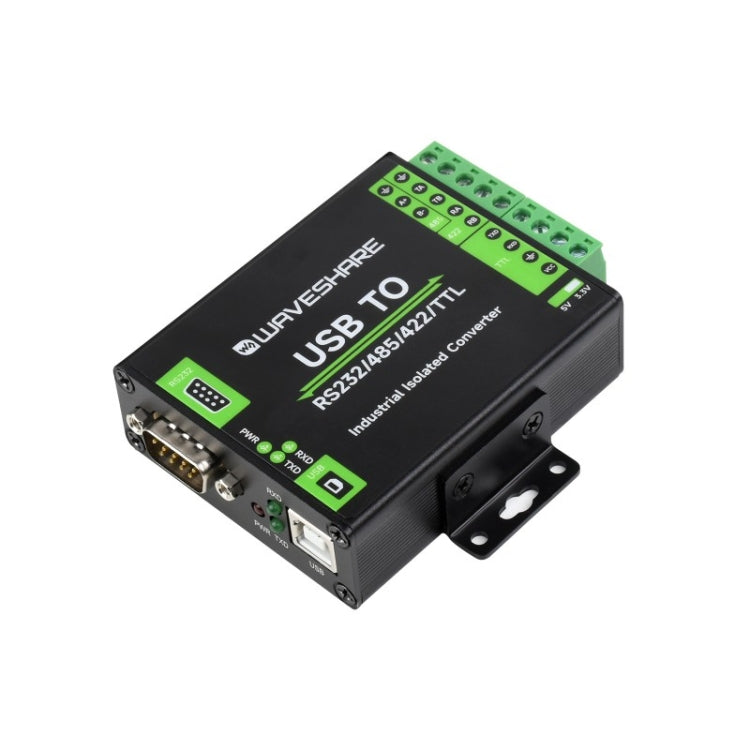

Waveshare FT232RNL USB To RS232/485/422/TTL Interface Industrial Isolation Converter, 23996

The Waveshare FT232RNL USB to RS232/485/422/TTL Interface Industrial Isolation Converter is designed for communication interface conversion. It is suitable for applications requiring stable isolated voltage and signal isolation in industrial environments.

• Product Type: Industrial grade digital isolated converter
• Operating System Compatibility: Mac, Linux, Android, Windows 11/10/8.1/8/7
• Operating Temperature: -15℃ to 70℃
• Device Ports: RS232, RS485, RS422, TTL
• Host Port: USB
• USB Specifications:
• Operating Voltage: 5V
• Connector Type: USB-B
• Protection: 200mA self-recovery fuse, isolated output
• RS232 Specifications:
• Connector Type: DB9 male
• Protection: TVS diode, surge protection, ESD protection
• Transmission Mode: Point-to-point
• Baud Rate: 300bps to 3Mbps
• RS485/422 Specifications:
• Connector Type: Screw terminal
• Direction Control: Hardware automatic control
• Protection: 600W lightningproof, surge suppression, 15KV ESD protection (includes two 120R balancing resistors, enabled/disabled via jumper)
• Transmission Mode: Point-to-multipoint (RS485 mode: up to 32 nodes; RS422 mode: up to 256 nodes, repeaters recommended for 16 nodes or more)
• Baud Rate: 300bps to 3Mbps
• TTL (UART) Specifications:
• Connector Type: Screw terminal
• Pins: TXD, RXD, GND, 5V/3.3V
• Protection: Clamp protection diode, over-voltage/negative-voltage proof, shock resistance
• Transmission Mode: Point-to-point
• Baud Rate: 300bps to 3Mbps
• Indicators:
• PWR: Red power indicator, lights up when USB connection and voltage is detected
• TXD: TX indicator, lights up when USB port sends data
• RXD: RX indicator, lights up when device ports send data back
• Package Contents:
• USB TO RS232/485/TTL x1
• USB cable x1
• Installation: Industrial grade metal case, supports wall-mount and rail-mount installations
