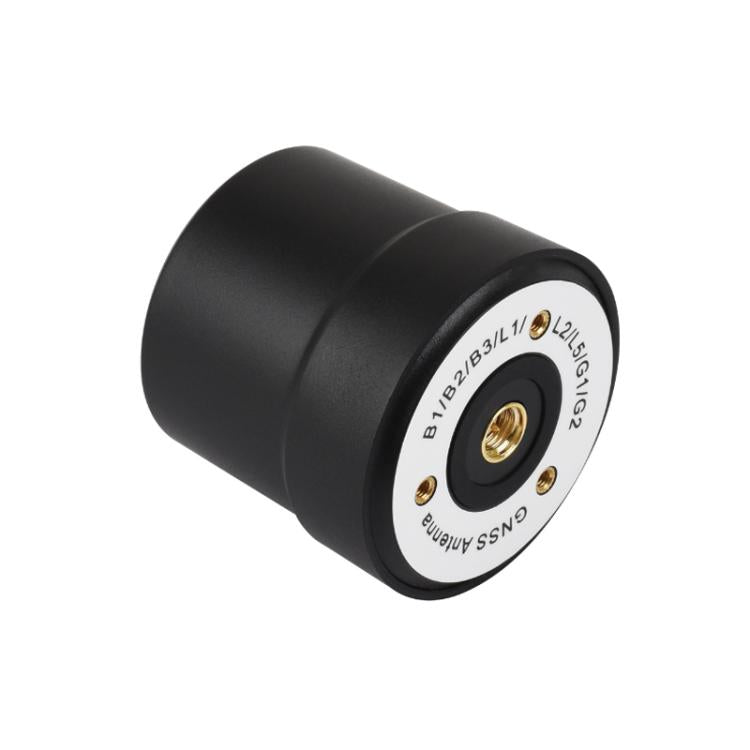

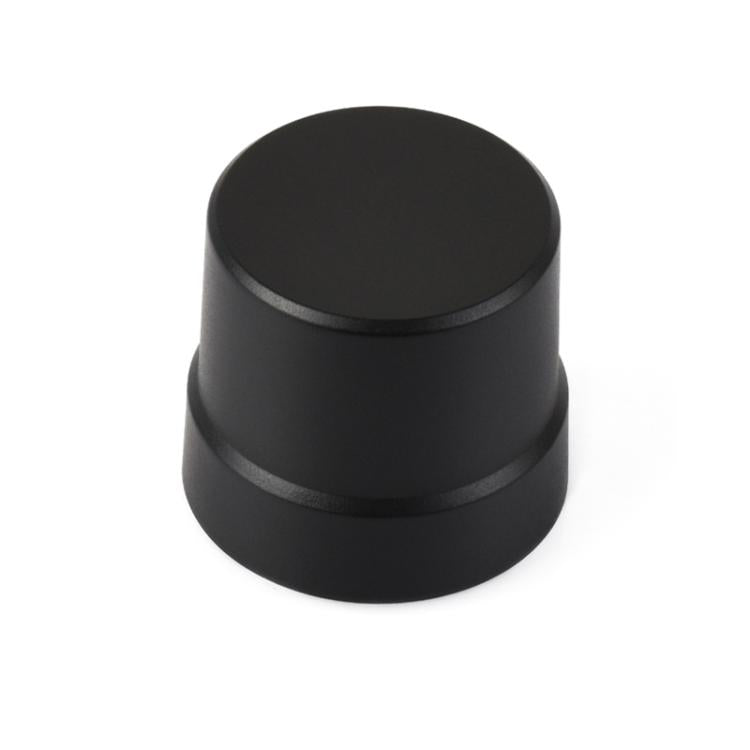

WAVESHARE GNSS L1+L2+L5 Multi-Satellite Multi-Frequency Four-Wire Helical Active Precision Positioning Antenna, Version: Q39
WAVESHARE GNSS L1+L2+L5 Multi-Satellite Multi-Frequency Four-Wire Helical Active Precision Positioning Antenna, Version: Q39
SKU: TBD0606732302
Regular price
£27.79
Regular price
Sale price
£27.79
Duties & Import Tax Information
Duties are only included if shown at checkout. Otherwise, your local government may apply customs fees, which your courier will collect directly from you before delivery.
In Stock
CHN
This item is shipped from China.
Processed in 0–3 days
Quantity
Couldn't load pickup availability
Shipping info
To find all available shipping methods and exact delivery times, add the product to your cart and check using our shipping calculator.
30-day returns
Fast refunds: Once we receive and check your item, we aim to process your refund within 48 hours.
Return postage: Just changed your mind? You'll need to cover the return postage. If the item arrived faulty, we'll cover the cost to get it back to us.
Your details are safe
We treat your data the way we'd want ours treated. Your payment details are locked down with bank-level encryption. We never actually see your credit card numbers, and we will absolutely never sell your personal information.

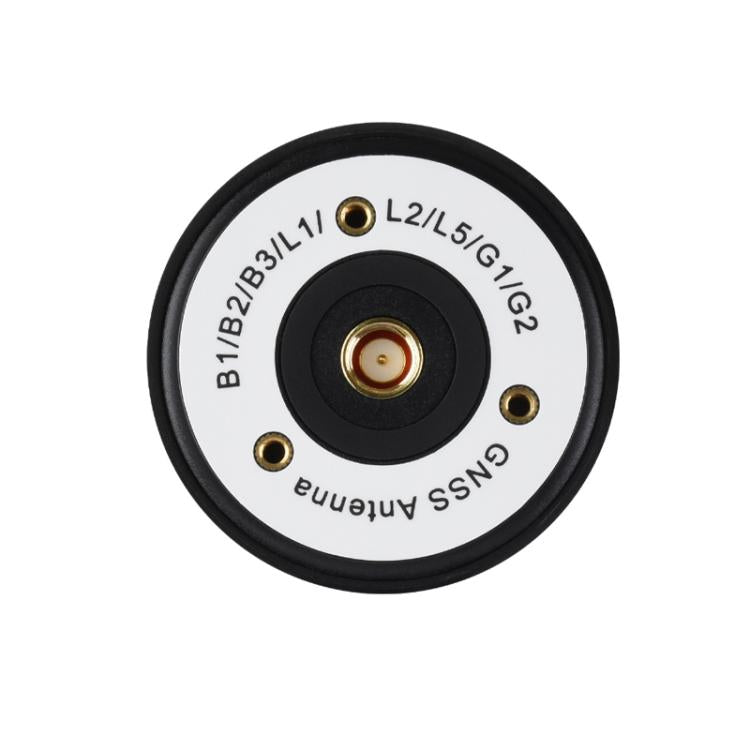

1. Connector type: SMA Inner Pin
2. Protection rating: IP67
3. Four-wire helical antenna for GNSS, featuring high gain and wide circular polarization coverage angle
4. Receives more low-elevation satellite signals, improving positioning performance; suitable for smart home, smart agriculture, and high-precision map applications
5. Four-wire helical structure with wide circular polarization coverage angle, enhancing low-elevation satellite signal reception capability
6. High gain, low noise figure design, supports multi-frequency, multi-system GNSS signal reception
7. Small size, lightweight, flexible installation, suitable for various devices and applications
8. Uses SMA interface, supports RF transmission and coaxial DC bias feeding function
9. Meets IP67 protection requirements, suitable for long-term stable operation in outdoor environments
Antenna characteristics
1. Frequency range:
- GPS: L1/L2/L5
- BDS: B1/B2a/B2b/B3i
- GLONASS: G1/G2
- Galileo: E1/E5a/E5b
2. Antenna gain: Q25 2dB; Q39 2.5dBi
3. Characteristic impedance: 50Ω
4. Polarization: RHCP (Right-hand circular polarization)
5. Coverage angle: 360 degrees

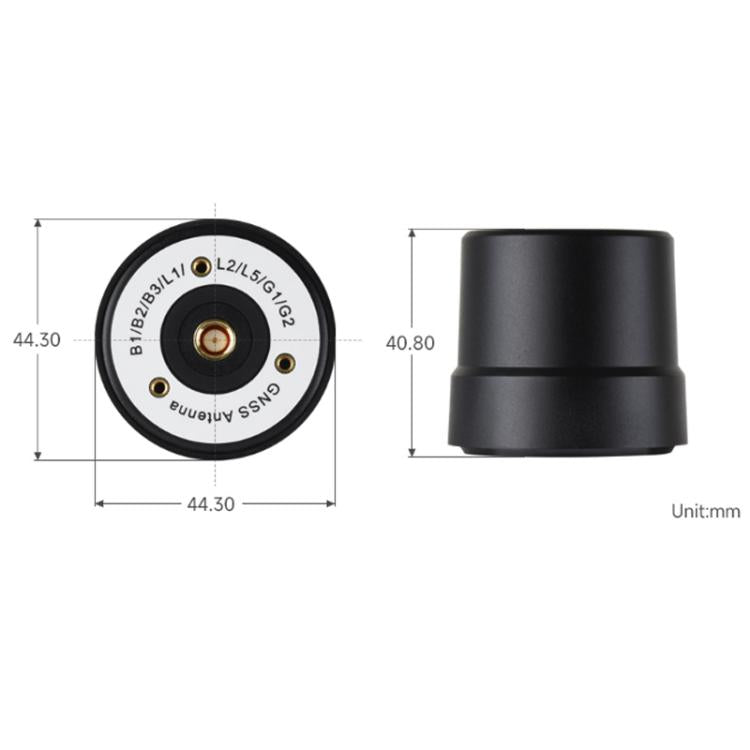

6. Dimensions: Q25 58.70 x 27.70 mm; Q39 40.80 x 44.30 mm
Amplifier characteristics
1. Gain: Q25 37dB; Q39 28dB
2. Noise figure: 1.5dB
3. Operating voltage: Q25 3.3V ~ 16V DC; Q39 3.0V ~ 16V DC
4. Operating current: Q25 13mA; Q39 15mA
