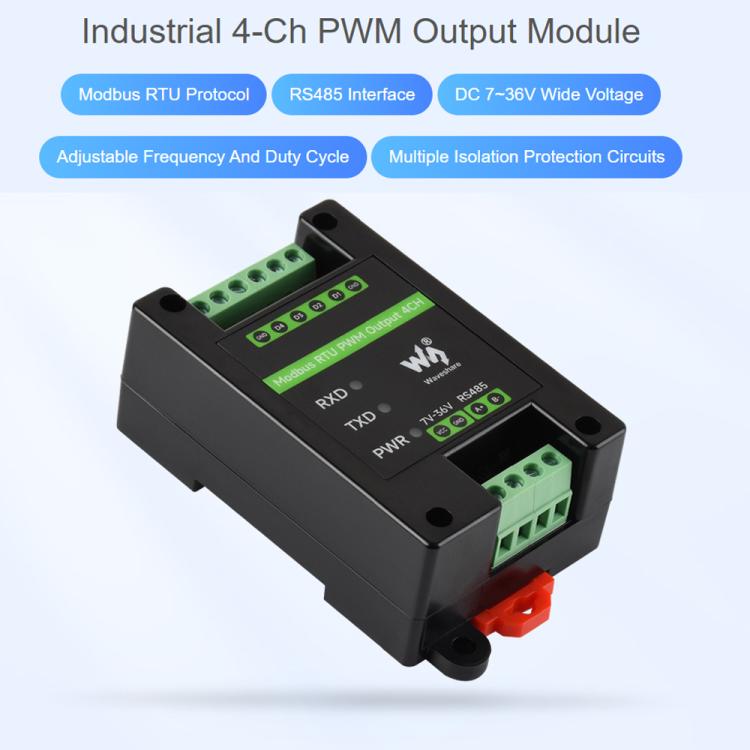

Waveshare Industrial 4-Ch PWM Output Module Modbus RTU RS485, Adjustable Frequency & Duty Cycle
Waveshare Industrial 4-Ch PWM Output Module Modbus RTU RS485, Adjustable Frequency & Duty Cycle
SKU: TBD06030512
Regular price
£31.79
Regular price
Sale price
£31.79
Duties & Import Tax Information
Duties are only included if shown at checkout. Otherwise, your local government may apply customs fees, which your courier will collect directly from you before delivery.
In Stock
CHN
This item is shipped from China.
Processed in 0–3 days
Quantity
Couldn't load pickup availability
Shipping info
To find all available shipping methods and exact delivery times, add the product to your cart and check using our shipping calculator.
30-day returns
Fast refunds: Once we receive and check your item, we aim to process your refund within 48 hours.
Return postage: Just changed your mind? You'll need to cover the return postage. If the item arrived faulty, we'll cover the cost to get it back to us.
Your details are safe
We treat your data the way we'd want ours treated. Your payment details are locked down with bank-level encryption. We never actually see your credit card numbers, and we will absolutely never sell your personal information.

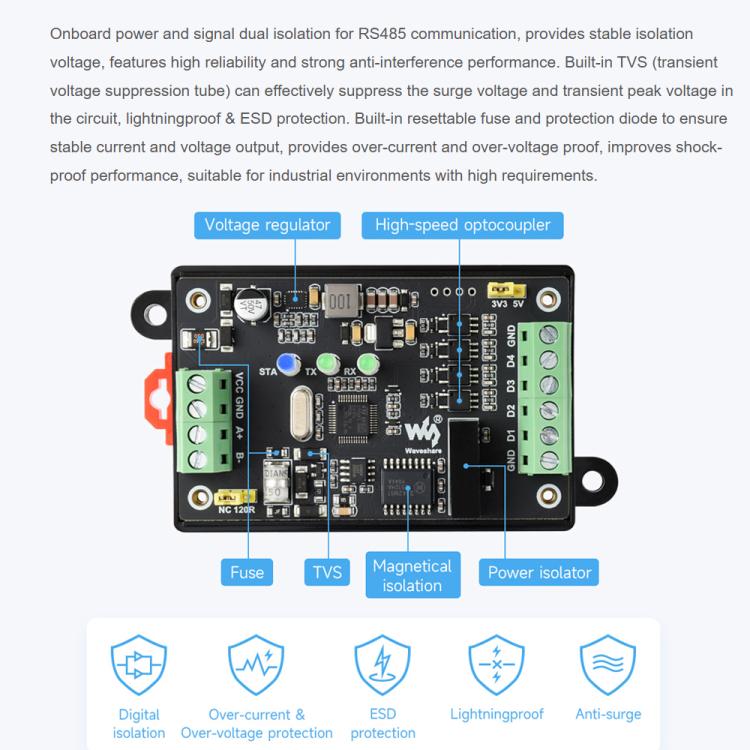

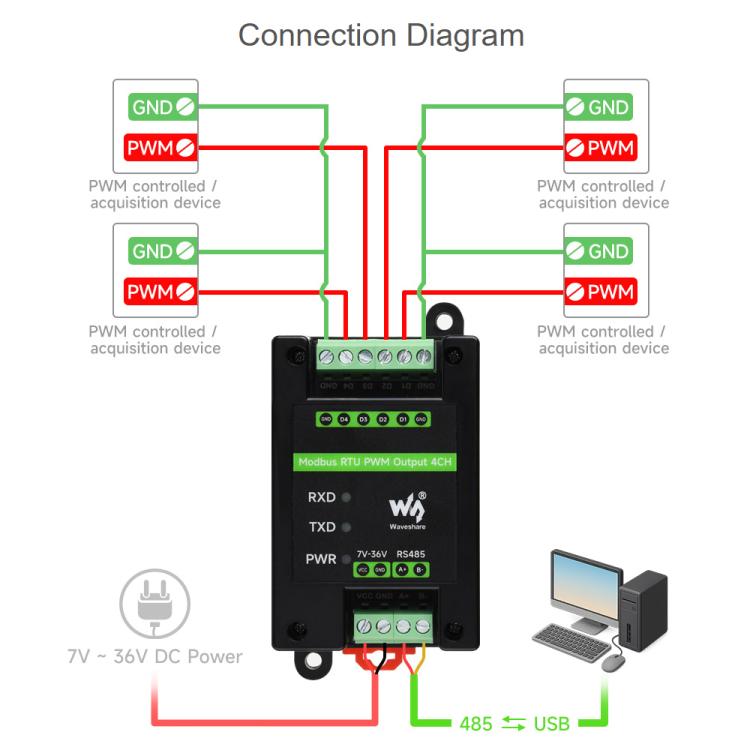

1. This product is an industrial standard isolated RS485 to PWM pulse output module. Four channels of frequency and duty cycle are independently adjustable. It adopts Modbus RTU protocol and includes built-in protection circuits such as power isolation, magnetic coupling isolation, self-recovery fuse, and TVS.
2. The output uses high-speed optocoupler isolation, and the output high-level voltage can be selected via internal jumpers.
3. Four channels of PWM pulse output with frequency and duty cycle independently adjustable.
4. Supports setting device address (1 to 255) to cascade multiple devices via the RS485 bus.

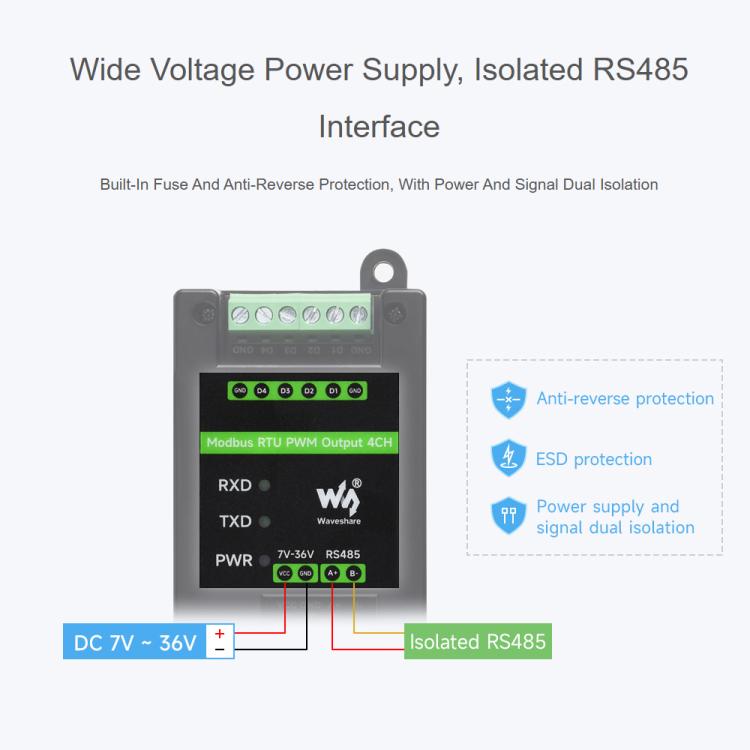

5. On-board voltage regulator chip supports wide voltage supply from 7V to 36V.

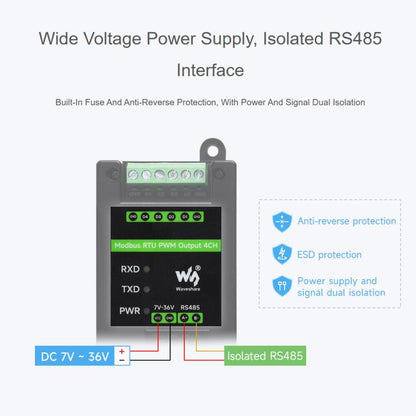

6. On-board integrated power isolation provides stable isolation voltage; the isolated end requires no additional power supply.
7. On-board integrated magnetic coupling isolation enables signal isolation, with high reliability and strong anti-interference capability.
8. On-board self-recovery fuse and TVS (Transient Voltage Suppressor) effectively suppress surge voltage and transient spike voltage in the circuit, protecting against overcurrent, overvoltage, lightning, and static electricity.
9. Built-in watchdog ensures stable output without crashing.

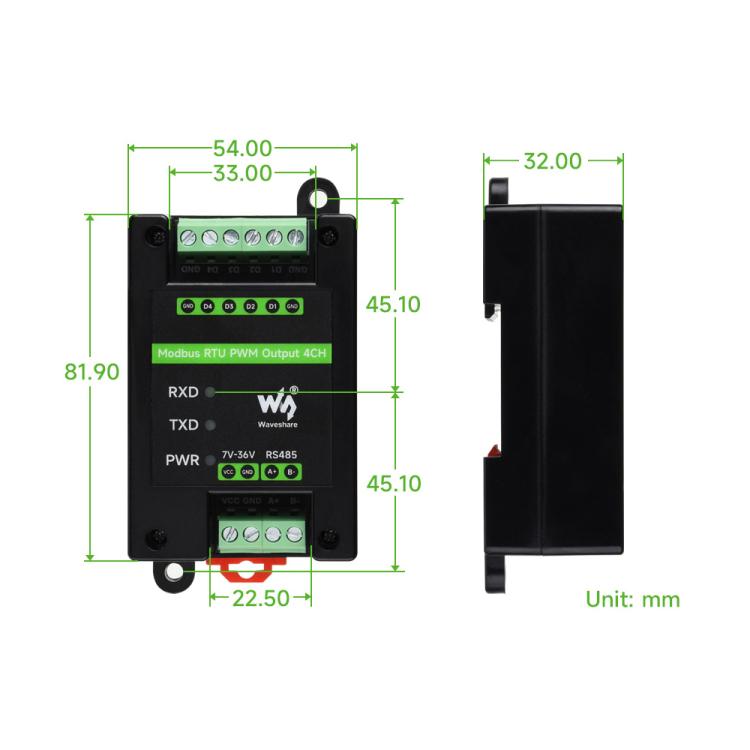

10. Rail-mounted enclosure design, compact size, easy installation.

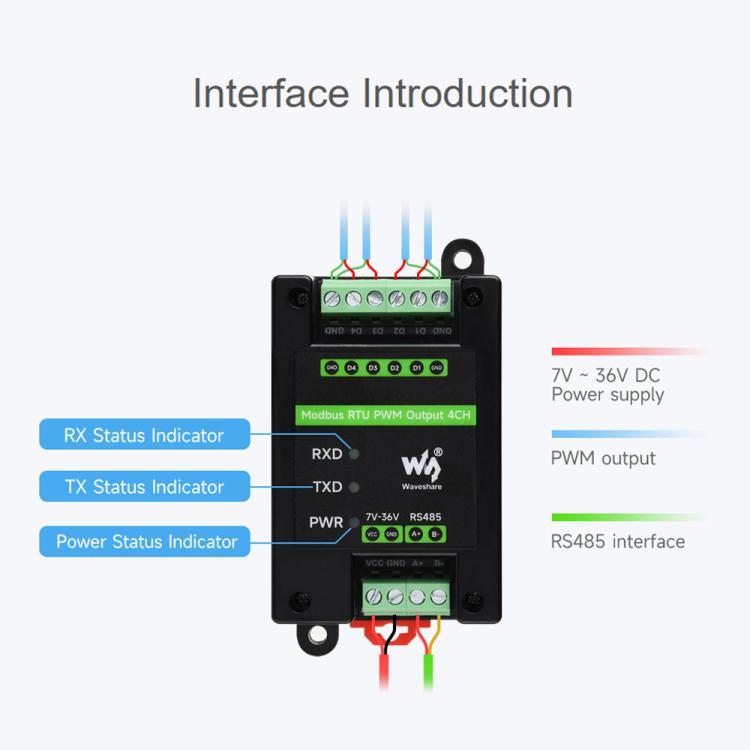

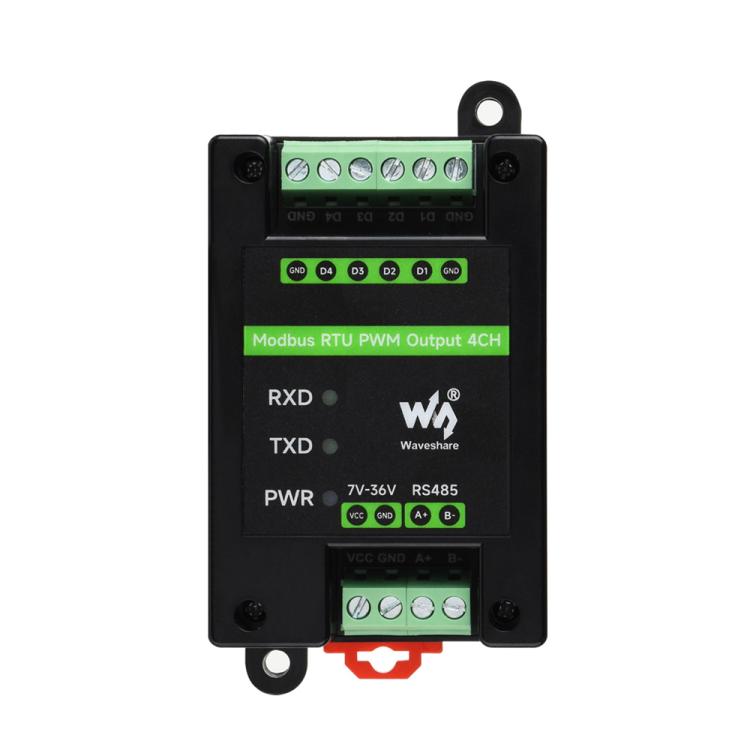

11. External 3 LED indicators for convenient viewing of power status and signal transmission/reception status.
Parameters:
1. Communication Interface: RS485
2. Communication Baud Rate: 4800, 9600, 19200, 38400, 57600, 115200, 128000, 256000
3. Default Communication Format: 9600, N, 8, 1
4. Modbus Protocol: Standard Modbus RTU Protocol
5. Supply Voltage: DC 7V to 36V
6. Output Voltage: Default 3.3V, can be set to 5V via internal jumper
7. Output Current: Signal type, less than 30mA
8. Pulse Frequency: 1Hz to 200KHz
9. Frequency Resolution: 0.01Hz
10. Frequency Accuracy: 0.5 percent (equivalent to 5 per mille)
11. Duty Cycle: 0 to 100 percent
12. Duty Cycle Resolution: 0.01 percent
13. Duty Cycle Accuracy: 0.5 percent (1Hz to 50KHz), 1 percent (50KHz to 200KHz)
Verified Compatible
Guaranteed fit for device in the title. Wrong part? Full refund including shipping.
Share
£31.79
