Waveshare ST-LINK/V2 (EN), STM Programmers & Debuggers
Waveshare ST-LINK/V2 (EN), STM Programmers & Debuggers
SKU: ZY14344747
Regular price
£52.39
Regular price
Sale price
£52.39
Duties & Import Tax Information
Duties are only included if shown at checkout. Otherwise, your local government may apply customs fees, which your courier will collect directly from you before delivery.
In Stock
CHN
This item is shipped from China.
Processed in 0–3 days
Quantity
Couldn't load pickup availability
Shipping info
To find all available shipping methods and exact delivery times, add the product to your cart and check using our shipping calculator.
30-day returns
Fast refunds: Once we receive and check your item, we aim to process your refund within 48 hours.
Return postage: Just changed your mind? You'll need to cover the return postage. If the item arrived faulty, we'll cover the cost to get it back to us.
Your details are safe
We treat your data the way we'd want ours treated. Your payment details are locked down with bank-level encryption. We never actually see your credit card numbers, and we will absolutely never sell your personal information.
Product Details
Type:
MCU Tools
Description
1. The ST-LINK/V2 is an in-circuit debugger and programmer for the STM8 and STM32 microcontroller families. The single wire interface module (SWIM) and JTAG/serial wire debugging (SWD) interfaces are used to communicate with any STM8 or STM32 microcontroller located on an application board.
2. STM8 applications use the USB full speed interface to communicate with STMicroelectronics ST Visual Develop (STVD) or ST Visual Program (STVP) software.
3. STM32 applications use the USB full speed interface to communicate with Atollic, IAR, Keil or TASKING integrated development environments.
Key Features
1. 5V power supplied by a USB connector
2. USB 2.0 full speed compatible interface
3. USB standard A to mini B cable
4. SWIM specific features
5. 1.65 V to 5.5 V application voltage supported on SWIM interface
6. SWIM low-speed and high-speed modes supported
7. SWIM programming speed rate: 9.7 Kbytes/s in low speed and 12.8 Kbytes/s in high speed
8. SWIM cable for connection to the application via an ERNI standard vertical (ref: 284697 or 214017) or horizontal (ref: 214012) connector
9. SWIM cable for connection to the application via a pin header or a 2.54 mm pitch connector
10. JTAG specific features
11. 1.65 V to 3.6 V application voltage supported on the JTAG interface and 5 V tolerant inputs
12. JTAG cable for connection to a standard JTAG 20-pin pitch 2.54 mm connector
13. Direct firmware update feature supported (DFU)
14. Status LED which blinks during communication with the PC
15. Operating temperature 0 to 50 °C
Application Example

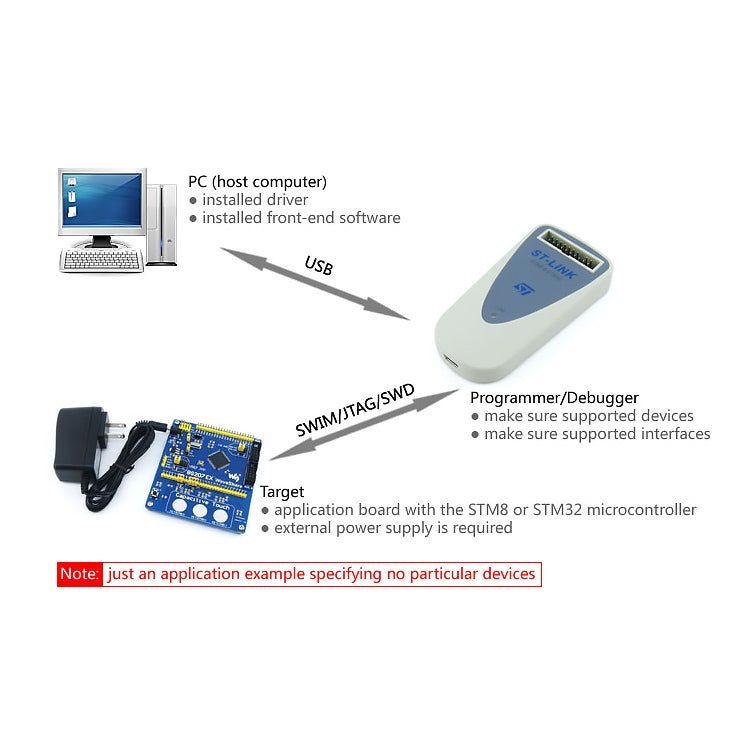

Connecting the PC and STM8/STM32 application board through ST-LINK/V2 to establish hardware connection
Connection with STM8 applications
The ST-LINK/V2 should be connected to the STM8 application via the SWIM cable. Two SWIM cables are delivered with the product:
- SWIM flat ribbon with a standard ERNI connector at one end and a 4-pin connector at the other end
- SWIM flat ribbon ended with a 4-pin, 2.54 mm, low-cost connector on two sides
Connection with STM32 applications
For STM32 developments the ST-LINK/V2 must be connected to the application using the standard 20-pin female-female JTAG flat ribbon provided.
ST-LINK/V2 Status
The LED labeled COM on top of the ST-LINK/V2 shows the ST-LINK/V2 status (whatever the connection type). When the:
1. LED is blinking RED: the first USB enumeration with the PC is taking place. If it keeps blinking RED, maybe the USB driver is NOT found.
2. LED is RED: communication between ST-LINK/V2 and the PC is established (end of enumeration).
3. LED is blinking GREEN/RED: data are being exchanged between the target and the PC.
4. LED is GREEN: the last communication has been successful.
5. LED is ORANGE: ST-LINK/V2 communication with the target has failed.
1. The ST-LINK/V2 is an in-circuit debugger and programmer for the STM8 and STM32 microcontroller families. The single wire interface module (SWIM) and JTAG/serial wire debugging (SWD) interfaces are used to communicate with any STM8 or STM32 microcontroller located on an application board.
2. STM8 applications use the USB full speed interface to communicate with STMicroelectronics ST Visual Develop (STVD) or ST Visual Program (STVP) software.
3. STM32 applications use the USB full speed interface to communicate with Atollic, IAR, Keil or TASKING integrated development environments.
Key Features
1. 5V power supplied by a USB connector
2. USB 2.0 full speed compatible interface
3. USB standard A to mini B cable
4. SWIM specific features
5. 1.65 V to 5.5 V application voltage supported on SWIM interface
6. SWIM low-speed and high-speed modes supported
7. SWIM programming speed rate: 9.7 Kbytes/s in low speed and 12.8 Kbytes/s in high speed
8. SWIM cable for connection to the application via an ERNI standard vertical (ref: 284697 or 214017) or horizontal (ref: 214012) connector
9. SWIM cable for connection to the application via a pin header or a 2.54 mm pitch connector
10. JTAG specific features
11. 1.65 V to 3.6 V application voltage supported on the JTAG interface and 5 V tolerant inputs
12. JTAG cable for connection to a standard JTAG 20-pin pitch 2.54 mm connector
13. Direct firmware update feature supported (DFU)
14. Status LED which blinks during communication with the PC
15. Operating temperature 0 to 50 °C
Application Example
Connecting the PC and STM8/STM32 application board through ST-LINK/V2 to establish hardware connection
Connection with STM8 applications
The ST-LINK/V2 should be connected to the STM8 application via the SWIM cable. Two SWIM cables are delivered with the product:
- SWIM flat ribbon with a standard ERNI connector at one end and a 4-pin connector at the other end
- SWIM flat ribbon ended with a 4-pin, 2.54 mm, low-cost connector on two sides
Connection with STM32 applications
For STM32 developments the ST-LINK/V2 must be connected to the application using the standard 20-pin female-female JTAG flat ribbon provided.
ST-LINK/V2 Status
The LED labeled COM on top of the ST-LINK/V2 shows the ST-LINK/V2 status (whatever the connection type). When the:
1. LED is blinking RED: the first USB enumeration with the PC is taking place. If it keeps blinking RED, maybe the USB driver is NOT found.
2. LED is RED: communication between ST-LINK/V2 and the PC is established (end of enumeration).
3. LED is blinking GREEN/RED: data are being exchanged between the target and the PC.
4. LED is GREEN: the last communication has been successful.
5. LED is ORANGE: ST-LINK/V2 communication with the target has failed.
