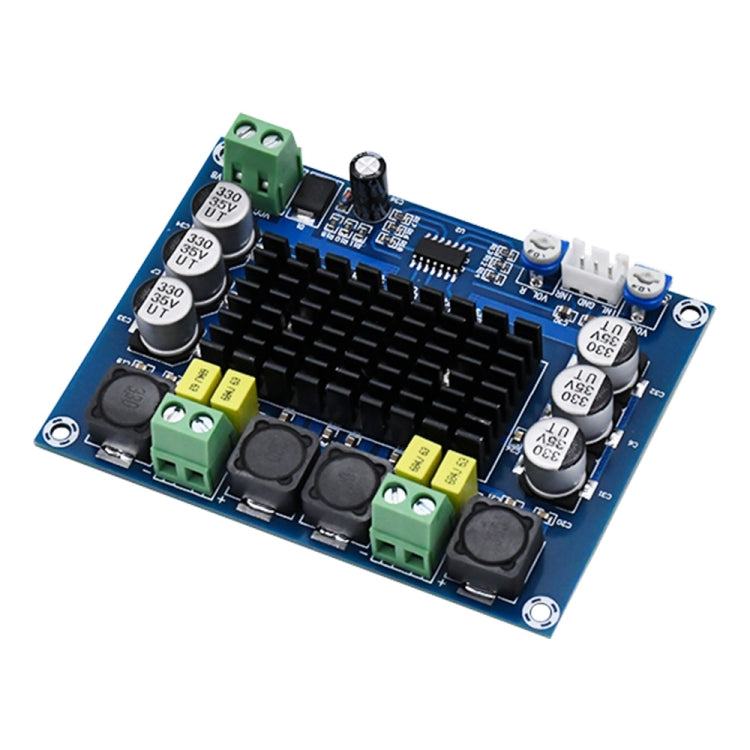

XH-M543 120W+120W Dual-channel Stereo High Power Digital TPA3116D2 Audio Power Amplifier Board
XH-M543 120W+120W Dual-channel Stereo High Power Digital TPA3116D2 Audio Power Amplifier Board
No reviews
Regular price
£12.99
Regular price
Sale price
£12.99
Unit price
/
per
Shipping Guarantee
Shipping Guarantee
FREE SHIPPING on all UK orders. Fully Insured.
Handling time 1 - 3 working days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)
Transit time 5 - 10 working days.
Return Guarantee
Return Guarantee
For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.
DOA Guarantee
DOA Guarantee
If your item arrives damaged, please contact us within 7 days and provide clear and valid proof. Buy2fix will make compensation based on the damage situation.
Missing/Wrong Items Guarantee
Missing/Wrong Items Guarantee
If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. Buy2fix will make compensation based on the damage situation.
- Channels:2 (2.0)
- Type:Home Amplifier
1. Product Name: TPA3116D2 digital amplifier
2. Product Type: XH-M543
3. Amplifier chip: TPA3116D2*1
4. Power supply: DC12-26V (24V recommended)
5. Current: more than 3A
6. Max output power: 120W *2
7. Channel: Two channel
8. Signal to noise ratio: 100db
9. Size: 92*69*18MM
10. Power supply DC12V 50W * 2
11. Power supply DC24V 120W * 2
12. Note: Red is positive, and Black is negative!
13. TPA3116D2 digital power amplifier board, with dual channel, high power, shock volume; power supply voltage is DC12-26V, 24V is recommended, it also has an op amp function, after the sound source is input, enter the boards op amp chip TL074C to zoom in, so that The volume is even more shocking.
Operation instructions:
1. Connect the power input terminal to the DC12V—26V power supply (24V is recommended);
2. Connect the audio input to a sound source, such as an MP3, mobile phone, computer, etc.
3. Connect the audio output to the speaker, pay attention to the positive and negative, it is recommended to connect more than 120W professional stage speakers, in order to play its effect.
Package included:
1 x TPA3116D2 2*120W Dual-channel High Power Digital Power Amplifier Board
