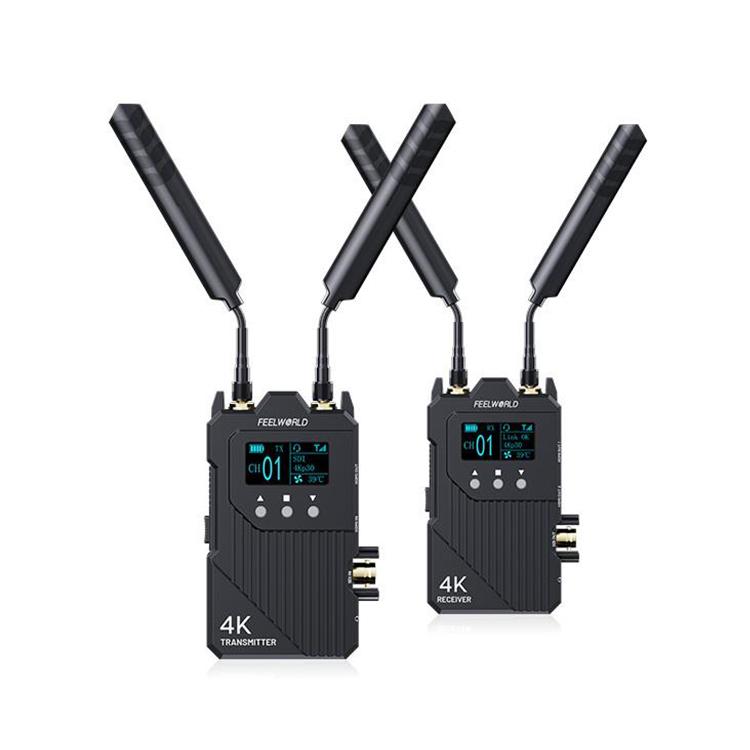

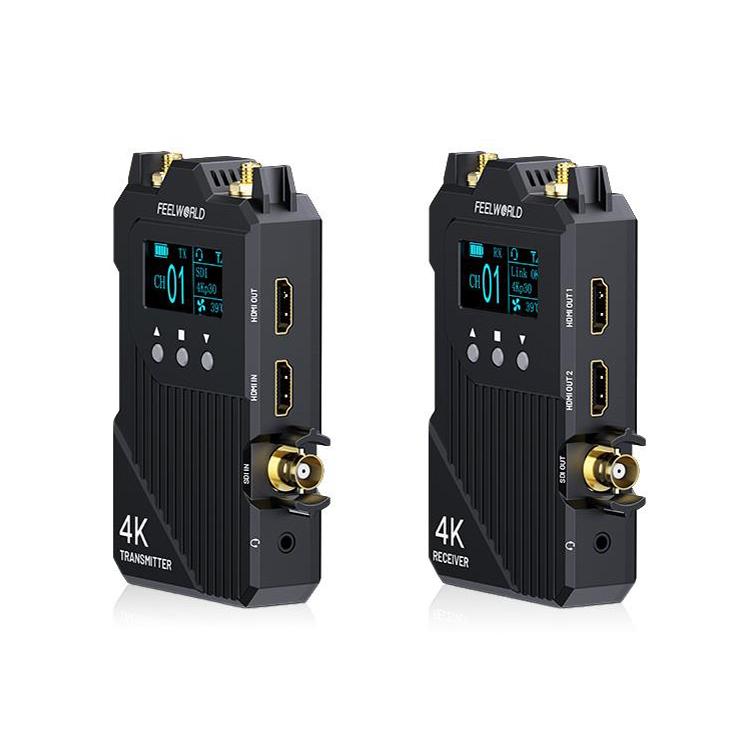

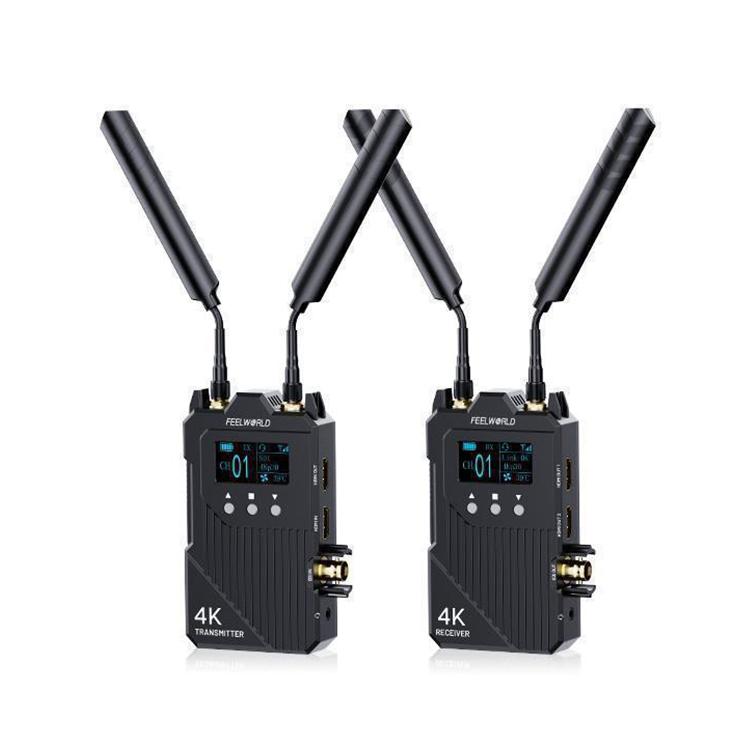

FEELWORLD WT1S 4K Wireless Video Transmission System SDI + Dual HDMI-compatible Full Duplex Intercom Live Streaming(Black)

The FEELWORLD WT1S 4K Wireless Video Transmission System is designed for live video streaming and intercom communication. It supports dual HDMI and SDI signal interfaces, making it suitable for various video production environments.

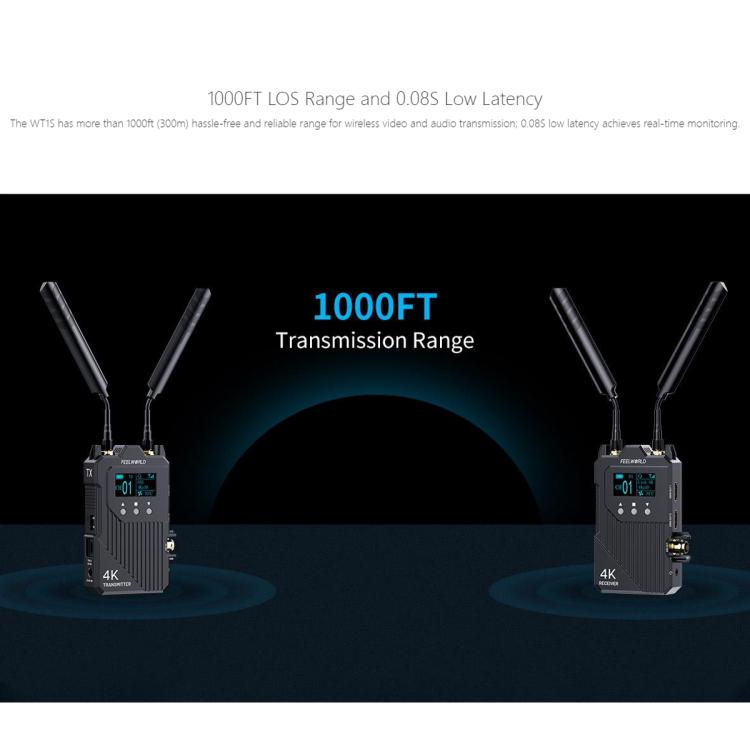

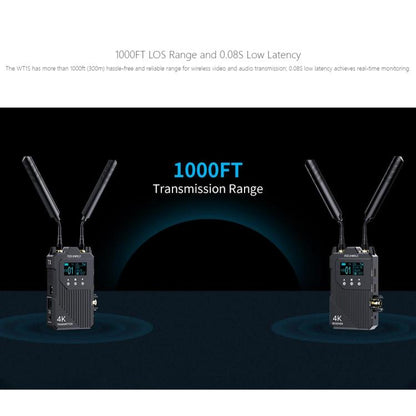

• Transmission range: over 1000 feet
• Latency: 0.08 seconds
• Resolution: up to 4K at 30Hz

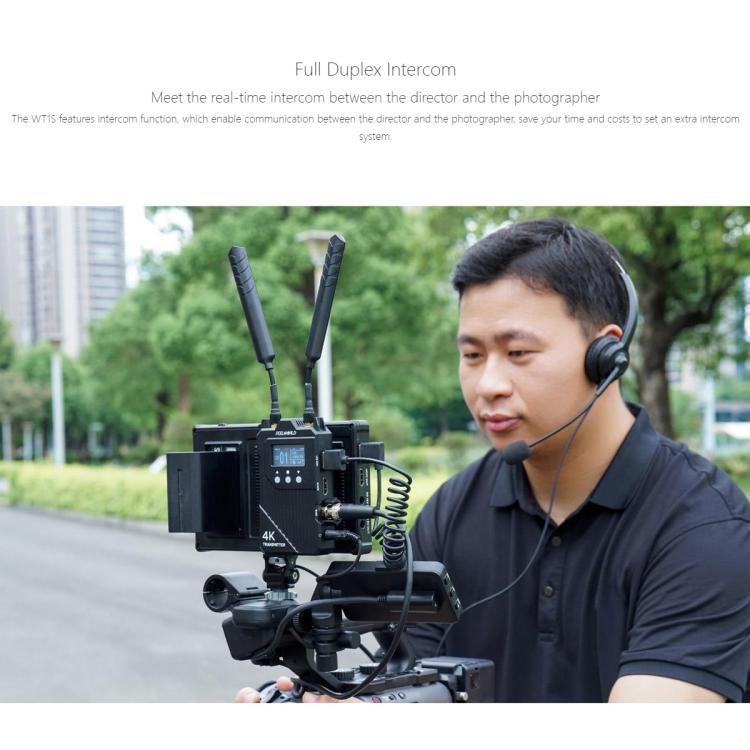

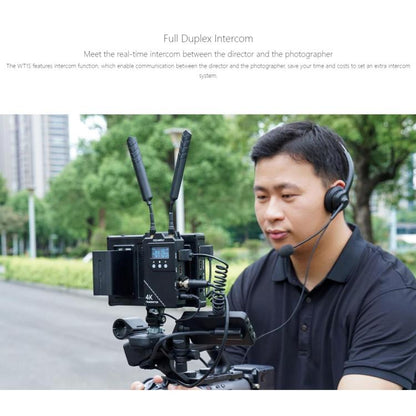

• Wireless full-duplex talkback capability

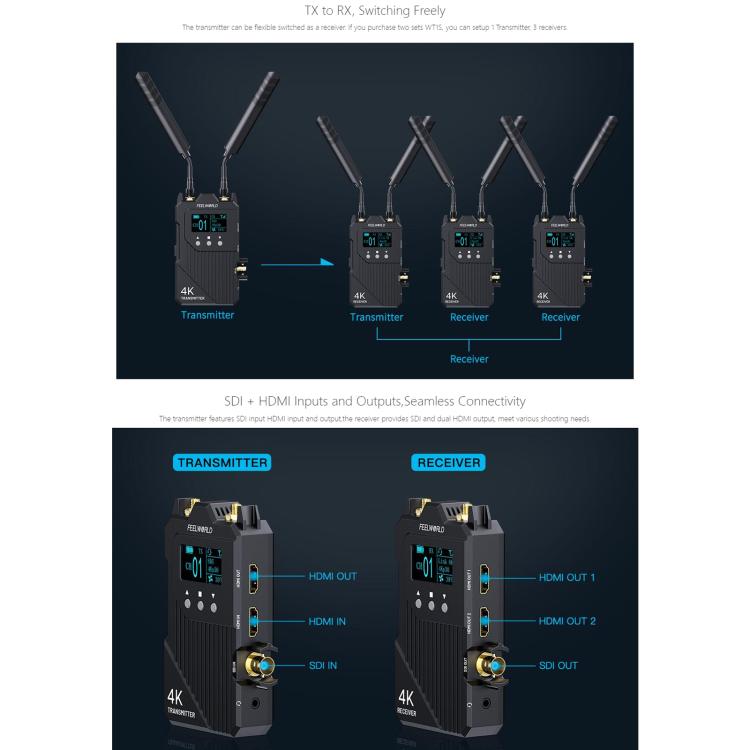

• Transmitter can function as a receiver

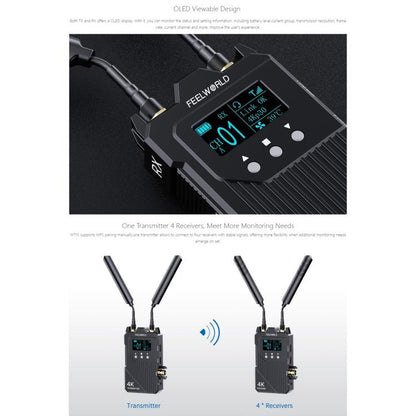

• One transmitter can connect to four receivers

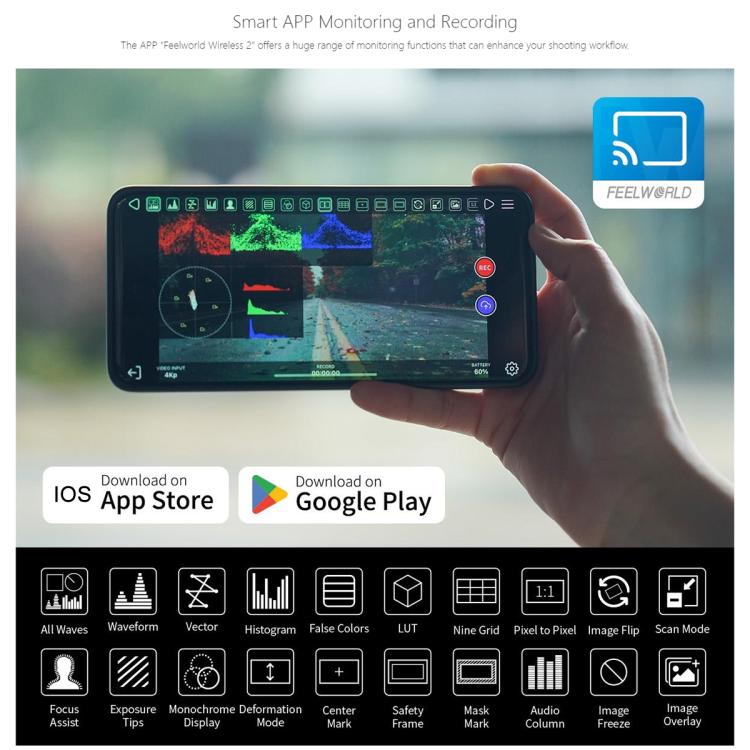

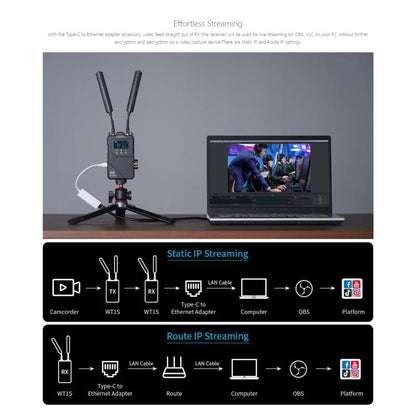

• Real-time monitoring and recording via app for Android/iOS

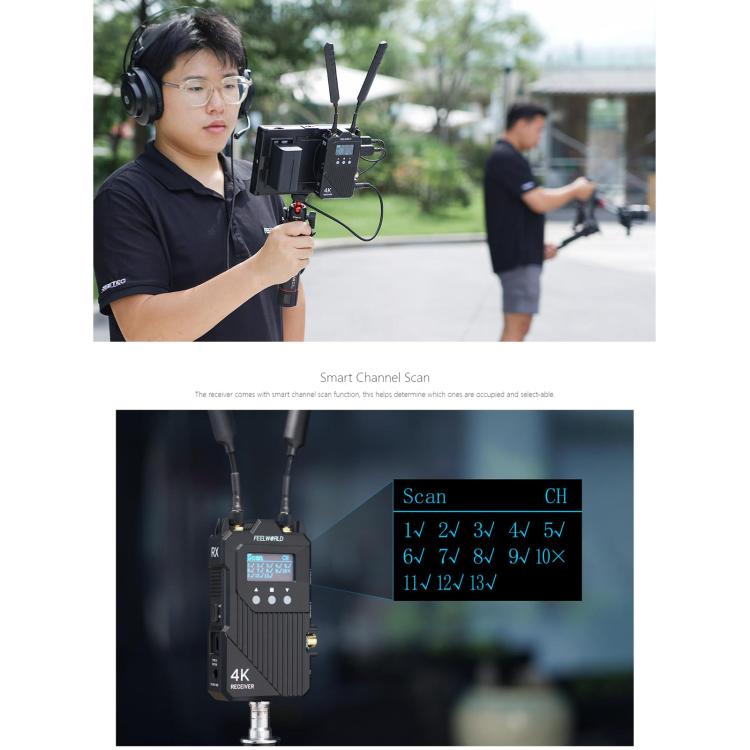

• Frequency channels: 13 with auto channel scan

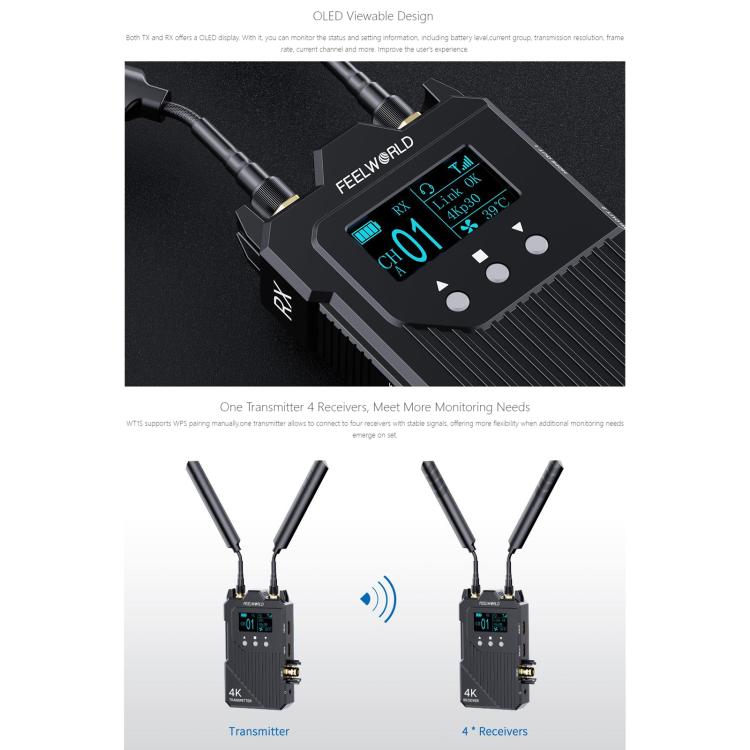

• Transmitter screen: OLED
• Transmitter interfaces: 1 x SDI input, 1 x HDMI-compatible input, 1 x HDMI-compatible output, 2 x antenna ports (RP-SMA Male), DC power input, 3.5mm headphone jack, Type-C

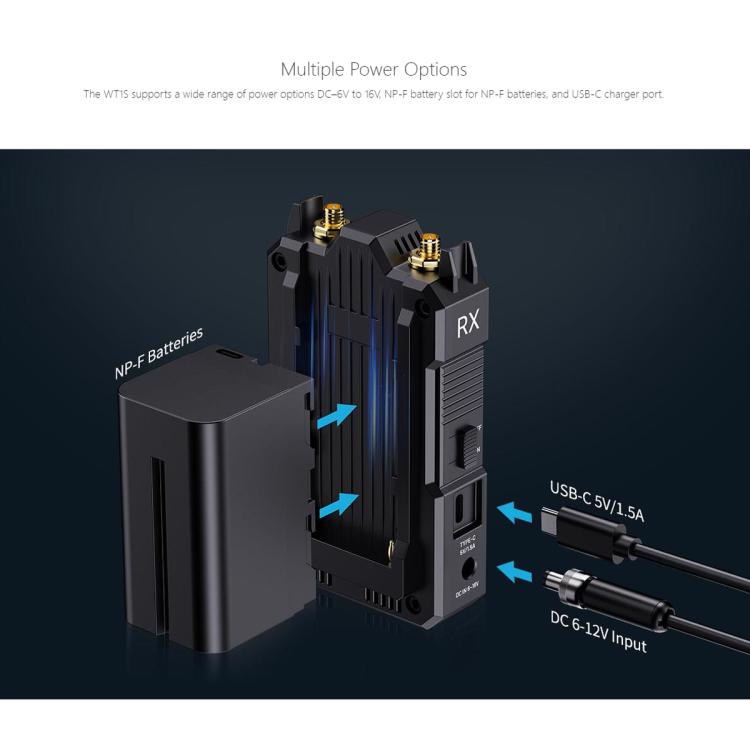

• Transmitter power supply: NP-F battery slot, Type-C (5V/1.5A), DC adapter (6-16V)
• Transmitter power consumption: less than 5.5W
• HDMI-compatible formats supported: 480P60, 576P60, 720P60/59.94/50, 1080P60/59.94/50/30/29.97/25/24/23.98, 1080I60/59.94/50, 2160P30/25/24
• SDI formats supported: 480P60, 576P60, 720P60/59.94/50, 1080P60/59.94/50/30/29.97/25/24/23.98, 1080I60/59.94/50
• Frequency range: 5.1-5.9GHz
• Modulation mode: OFDM
• Transmission power: 22dBm
• Bandwidth: 20/40MHz
• Intercom frequency response range: 20Hz-20KHz
• Operating temperature: 0°C to 40°C
• Storage temperature: -20°C to 60°C
• Unit dimensions (mm): 77.1L x 30W x 118.6H (excluding antenna)
• Unit weight: 138.8g
• Receiver screen: OLED

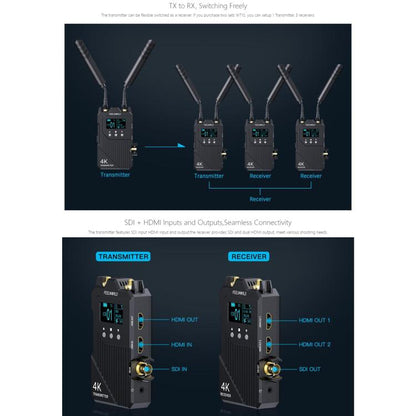

• Receiver interfaces: 1 x SDI input, 2 x HDMI-compatible outputs, 2 x antenna ports (RP-SMA Male), DC power input, 3.5mm headphone jack, Type-C
• Receiver power supply: NP-F battery slot, Type-C (5V/1.5A), DC adapter (6-16V)
• Receiver power consumption: less than 6W
• Receiver HDMI-compatible formats supported: 480P60, 576P60, 720P60/59.94/50, 1080P60/59.94/50/30/29.97/25/24/23.98, 1080I60/59.94/50, 2160P30/25/24
• Receiver SDI formats supported: 480P60, 576P60, 720P60/59.94/50, 1080P60/59.94/50/30/29.97/25/24/23.98, 1080I60/59.94/50
• Receiver frequency range: 5.1-5.9GHz
• Receiver modulation mode: OFDM
• Receiver sensitivity: -87dBm
• Receiver bandwidth: 20/40MHz
• Receiver intercom frequency response range: 20Hz-20KHz
• Receiver operating temperature: 0°C to 40°C
• Receiver storage temperature: -20°C to 60°C
• Receiver dimensions (mm): 77.1L x 30W x 118.6H (excluding antenna)
• Receiver weight: 138.8g
• Packaging includes: 1 Transmitter, 1 Receiver, 5 Antennas, 1 Cold Shoe, 1 USB-A to USB-C Adapter, 1 USB-C to
