UPA V1.3 Car USB Programmer ECU Chip Tuning Eeprom Small Board Full Set
UPA V1.3 Car USB Programmer ECU Chip Tuning Eeprom Small Board Full Set
SKU: CRP3138
Regular price
179.00 NIS
Regular price
Sale price
179.00 NIS
Duties & Import Tax Information
Duties are only included if shown at checkout. Otherwise, your local government may apply customs fees, which your courier will collect directly from you before delivery.
Out of Stock
Quantity
Couldn't load pickup availability
Shipping info
To find all available shipping methods and exact delivery times, add the product to your cart and check using our shipping calculator.
30-day returns
Fast refunds: Once we receive and check your item, we aim to process your refund within 48 hours.
Return postage: Just changed your mind? You'll need to cover the return postage. If the item arrived faulty, we'll cover the cost to get it back to us.
Your details are safe
We treat your data the way we'd want ours treated. Your payment details are locked down with bank-level encryption. We never actually see your credit card numbers, and we will absolutely never sell your personal information.
Product Details
1. New Upa-usb is the full set with all adapters, The main Device can be directly connected to the Elrasoft.com UUSP (UPA-USB Serial Programmer) or by an optional DB9 male / female 1:1 extension cable. It is equipped with an 40pin ZIF Socket for all narrow and wide DIP / DIL devices as well as with a 16 pin SOIC ZIF (150mil, narrow) socket to cover most commonly used devices.
2. Device configuration is done over special config keys which make the work convenient and safe compared to wiring up all manually.
3. Additional packages can be covered by commonly available Adapters plugged into the 40 pin ZIF socket.
4. The main Device further includes a 10 pin ISP connector where the included ISP Adapters can be connected using a standard 1:1 flatribbon cable (included). The included PLCC ISP Adapters are to be put directly over the soldered chip of the target device making the work convenient and safe compared to soldering or using clips connecting up all manually. (Power from the UUSP to the ISP target can be enabled or disabled by a jumper next to the 10 pin ISP connector).
5. Language: English.
6. Version:
HW:V2014
SW:V1.3

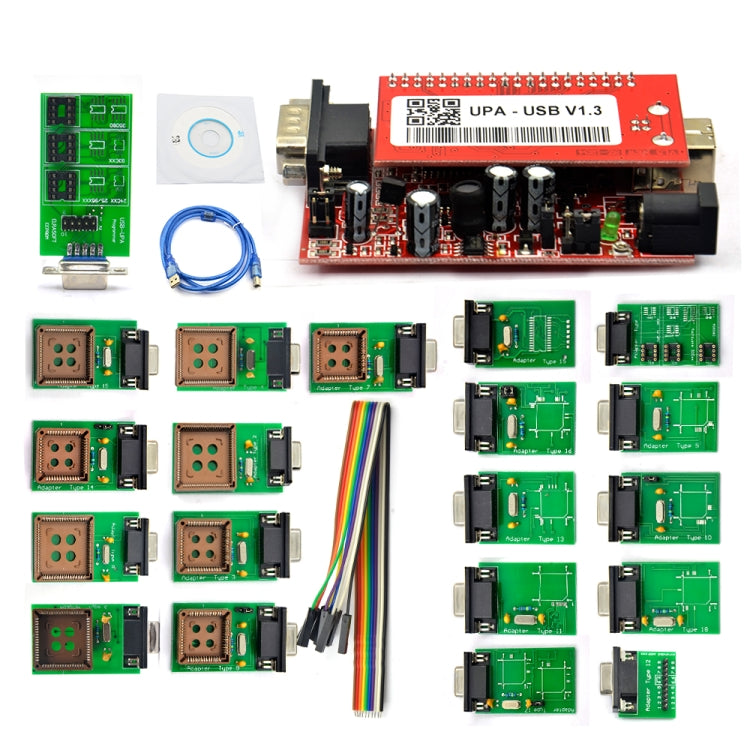

Package list
Main unit x 1
USB??cable x 1
CD x 1
5pin cable x 1
Adapter Type1 Per eprom I2C,SPI, Microware e M35080 x 1
Adapter Type2 Motorola MC68HC11P2+MC68HC11PH8-PLCC84 x 1
Adapter Type3 Motorola MC68HC08AS-PLCC52 x 1
Adapter Type4 Motorola MC68HC11KA2/4+MC68HC11KS-PLCC68 x 1
Adapter Type5 Motorola MC68HC(9)08-QFP64 x 1
Adapter Type6 Motorola MC68HC11F1-PLCC68 x 1
Adapter Type7 Motorola MC68HC05H12-PLCC52 x 1
Adapter Type8 Motorola MC68HC11K-PLCC84 x 1
Adapter Type9 Motorola MC68HC11A8/E1/E9/E20+MC68HC11EA9-PLCC52 x 1
Adapter Type10 Motorola MC68HC11KA2/4+MC68HC11PA8-QFP64
Adapter Type11 Motorola MC68HC11K-QFP80 x 1 x 1
Adapter Type12 Extended address x 1
Adapter Type13 Motorola MC68HC11A8/E1/E9/E20-QFP64 x 1
Adapter Type14 Motorola x 1MC68HC05B4/B6/B8/B16/B32+MC68HC705B16/B32-PLCC52
Adapter Type15 Motorola MC68HC(7)05E6-SOIC28 x 1
Adapter Type16 Motorola x 1MC68HC05B4/B6/B8/B16/B32+MC68HC(7)05X16/X32-QFP64
Adapter Type17 Motorola MC68HC(9)12B32-MC68HC(9)12D60(A)-QFP80 x 1
Adapter Type18 Motorola MC68HC11F1-QFP80 x 1
Adapter Type19 Motorola MC68HC11L6-PLCC68 x 1
2. Device configuration is done over special config keys which make the work convenient and safe compared to wiring up all manually.
3. Additional packages can be covered by commonly available Adapters plugged into the 40 pin ZIF socket.
4. The main Device further includes a 10 pin ISP connector where the included ISP Adapters can be connected using a standard 1:1 flatribbon cable (included). The included PLCC ISP Adapters are to be put directly over the soldered chip of the target device making the work convenient and safe compared to soldering or using clips connecting up all manually. (Power from the UUSP to the ISP target can be enabled or disabled by a jumper next to the 10 pin ISP connector).
5. Language: English.
6. Version:
HW:V2014
SW:V1.3
Package list
Main unit x 1
USB??cable x 1
CD x 1
5pin cable x 1
Adapter Type1 Per eprom I2C,SPI, Microware e M35080 x 1
Adapter Type2 Motorola MC68HC11P2+MC68HC11PH8-PLCC84 x 1
Adapter Type3 Motorola MC68HC08AS-PLCC52 x 1
Adapter Type4 Motorola MC68HC11KA2/4+MC68HC11KS-PLCC68 x 1
Adapter Type5 Motorola MC68HC(9)08-QFP64 x 1
Adapter Type6 Motorola MC68HC11F1-PLCC68 x 1
Adapter Type7 Motorola MC68HC05H12-PLCC52 x 1
Adapter Type8 Motorola MC68HC11K-PLCC84 x 1
Adapter Type9 Motorola MC68HC11A8/E1/E9/E20+MC68HC11EA9-PLCC52 x 1
Adapter Type10 Motorola MC68HC11KA2/4+MC68HC11PA8-QFP64
Adapter Type11 Motorola MC68HC11K-QFP80 x 1 x 1
Adapter Type12 Extended address x 1
Adapter Type13 Motorola MC68HC11A8/E1/E9/E20-QFP64 x 1
Adapter Type14 Motorola x 1MC68HC05B4/B6/B8/B16/B32+MC68HC705B16/B32-PLCC52
Adapter Type15 Motorola MC68HC(7)05E6-SOIC28 x 1
Adapter Type16 Motorola x 1MC68HC05B4/B6/B8/B16/B32+MC68HC(7)05X16/X32-QFP64
Adapter Type17 Motorola MC68HC(9)12B32-MC68HC(9)12D60(A)-QFP80 x 1
Adapter Type18 Motorola MC68HC11F1-QFP80 x 1
Adapter Type19 Motorola MC68HC11L6-PLCC68 x 1
Verified Compatible
Guaranteed fit for device in the title. Wrong part? Full refund including shipping.
