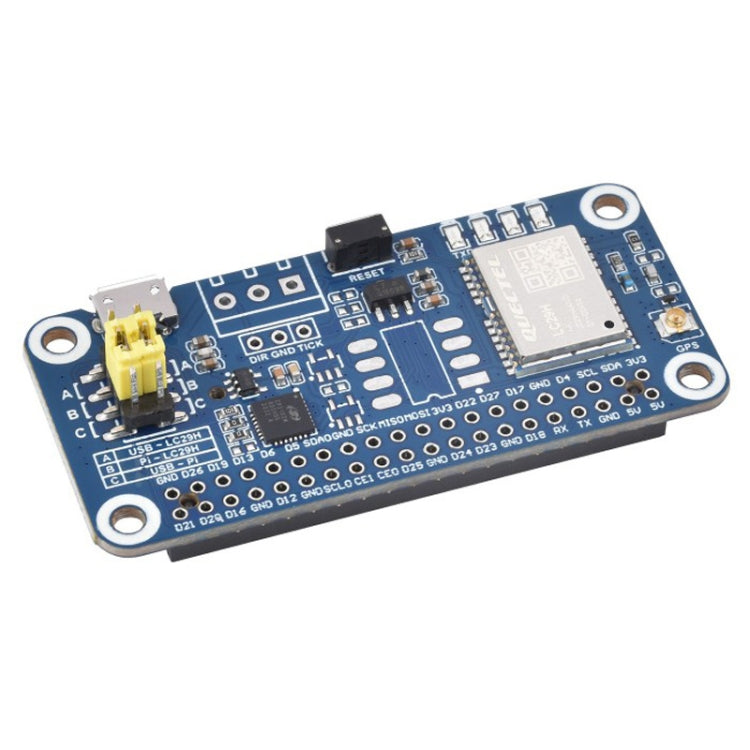

Waveshare For Raspberry Pi LC29H Series Dual-Band L1+L5 Positioning GPS Module, Spec: (AA) GPS HAT

The LC29H Series Dual-Band L1+L5 Positioning GPS Module is designed for high-precision positioning applications. It is suitable for real-time tracking systems and applications such as drones and smart agricultural machinery.

• Frequency Bands: GPS/QZSS (L1C/A, L5), Beidou (B1I, B2a), Galileo (E1, E5a), GLONASS (L1)
• Concurrent GNSS Support: GPS/QZSS, Beidou, Galileo, GLONASS
• Sensitivity: Tracking Navigation -165dBm, Reacquisition -159dBm, Cold Start -147dBm
• Dynamic Performance: Maximum Acceleration 4g, Maximum Altitude 10,000m, Maximum Speed 500m/s
• Communication Interface: UART (9600~3000000bps, default 115200bps), I2C (maximum 400KHz)
• Protocol: NMEA 0183 V4.10, RTCM 3.x
• Power Supply: 5V
• Total Current: Less than 40mA@5V (continuous mode)
• Operating Temperature: -40 to 85 degrees Celsius
• Product Dimensions: 65 x 30.5mm
• Weight: 126g
• Included Accessories: LC29H GPS HAT, 2x20PIN female socket, GPS external antenna (D), IPEX 1 to SMA cable (17cm), screw pack
• Features: Built-in LNA and SAW filters, dual-frequency positioning, RTK technology, A-GNSS support, onboard battery holder for ML1220 rechargeable battery, LED indicators for working status
• Applications: Suitable for drones, smart agricultural machinery, and shared two-wheelers
