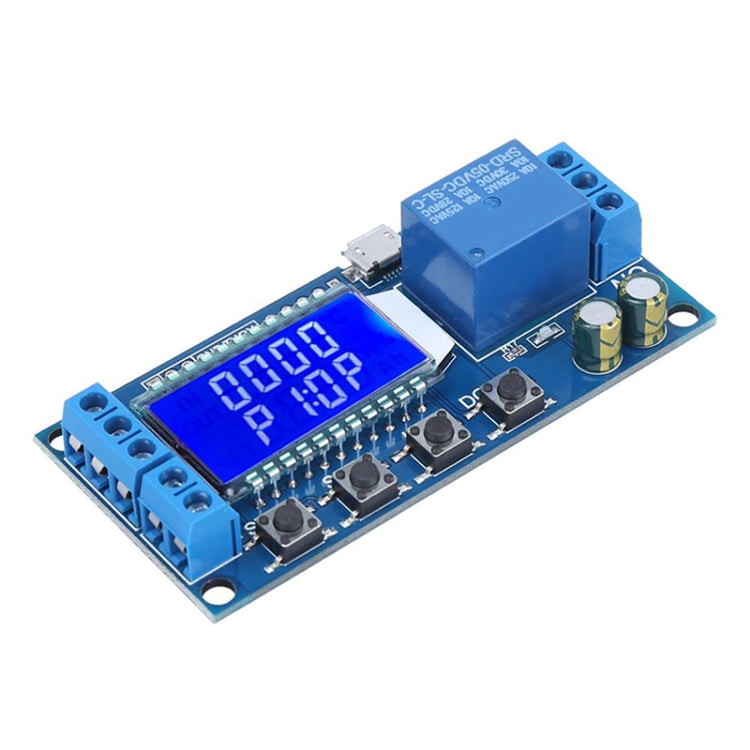

XY-LJ02 6-30V Micro USB Digital LCD Display Time Delay Relay Module Control Timer Switch
XY-LJ02 6-30V Micro USB Digital LCD Display Time Delay Relay Module Control Timer Switch
SKU: DIY0577
Regular price
48.00 NIS
Regular price
Sale price
48.00 NIS
Duties & Import Tax Information
Duties are only included if shown at checkout. Otherwise, your local government may apply customs fees, which your courier will collect directly from you before delivery.
Out of Stock
Quantity
Couldn't load pickup availability
Shipping info
To find all available shipping methods and exact delivery times, add the product to your cart and check using our shipping calculator.
30-day returns
Fast refunds: Once we receive and check your item, we aim to process your refund within 48 hours.
Return postage: Just changed your mind? You'll need to cover the return postage. If the item arrived faulty, we'll cover the cost to get it back to us.
Your details are safe
We treat your data the way we'd want ours treated. Your payment details are locked down with bank-level encryption. We never actually see your credit card numbers, and we will absolutely never sell your personal information.
Product Details
Type:
Relay Module
Features
1. With LCD display, the current mode and parameters are clear at a glance, very clear, simple and practical.
2. Support high and low level trigger, switch control, suitable for most occasions.
3. Wide voltage power supply (6~30V) supports micro USB 5.0V power supply, which is very convenient to use.
4. Support UART data upload and parameter setting.
5. There is a key emergency stop function (STOP key), with reverse connection protection, reverse connection will not burn.
6. Added sleep mode. After enabling, if there is no operation within 5 minutes, the LCD backlight will be automatically turned off; any key will wake up.
7. Different OP, CL, LOP parameters can be set, these parameters are independent of each other and saved separately.
8. All setting parameters are automatically saved after power off.
Specification
1. Working voltage: 6-30V, support micro USB 5.0V power supply
2. Trigger signal source: high level trigger (3.0V~24V), low level trigger (0.0V~0.2V), switch control (passive switch).
3. Output capability: can control equipment within DC 30v 5A or AC 220v 5A
4. Quiescent current: 15mA Working current: 50mA
5. Working temperature: -40a??85 degrees Celsius
6. With optocoupler isolation, enhance anti-interference ability, industrial-grade circuit board, set parameters will be remembered forever after power off
7. Size: 8.0x3.8x1.9cm
8. Weight: about 36g
1. With LCD display, the current mode and parameters are clear at a glance, very clear, simple and practical.
2. Support high and low level trigger, switch control, suitable for most occasions.
3. Wide voltage power supply (6~30V) supports micro USB 5.0V power supply, which is very convenient to use.
4. Support UART data upload and parameter setting.
5. There is a key emergency stop function (STOP key), with reverse connection protection, reverse connection will not burn.
6. Added sleep mode. After enabling, if there is no operation within 5 minutes, the LCD backlight will be automatically turned off; any key will wake up.
7. Different OP, CL, LOP parameters can be set, these parameters are independent of each other and saved separately.
8. All setting parameters are automatically saved after power off.
Specification
1. Working voltage: 6-30V, support micro USB 5.0V power supply
2. Trigger signal source: high level trigger (3.0V~24V), low level trigger (0.0V~0.2V), switch control (passive switch).
3. Output capability: can control equipment within DC 30v 5A or AC 220v 5A
4. Quiescent current: 15mA Working current: 50mA
5. Working temperature: -40a??85 degrees Celsius
6. With optocoupler isolation, enhance anti-interference ability, industrial-grade circuit board, set parameters will be remembered forever after power off
7. Size: 8.0x3.8x1.9cm
8. Weight: about 36g
