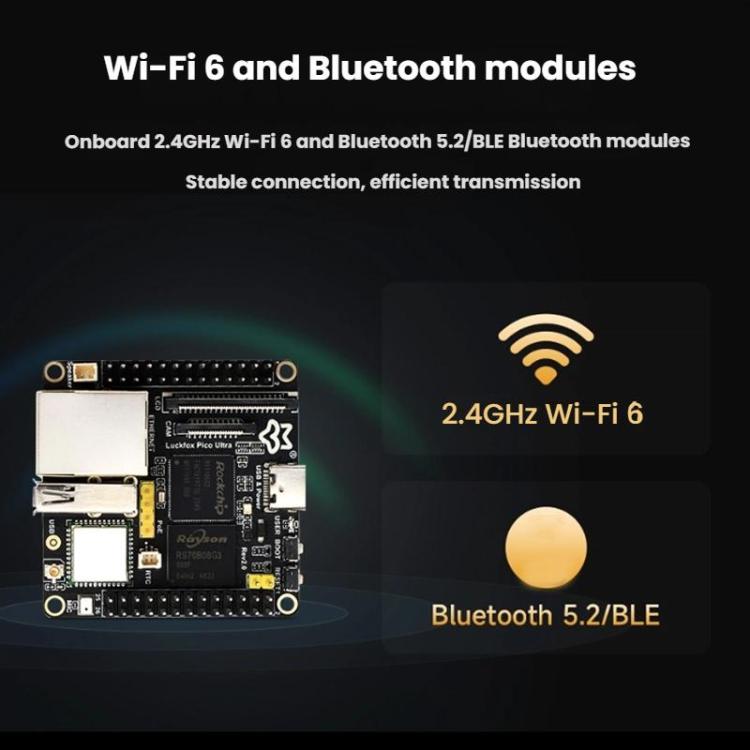

Luckfox Pico Ultra W RV1106G3 1TOPS Mini Linux Development Board Integrated Processor with Wi-Fi/No PoE, Specification: 720x720 Touch Screen

The Luckfox Pico Ultra W RV1106G3 is a mini Linux development board designed for embedded applications. It supports multiple interfaces and features a 720x720 resolution touch screen for intuitive operation.

• Processor: RV1106G3
• NPU: 1TOPS
• Memory: 256MB DDR3L
• Single-core ARM Cortex-A7 32-bit core with NEON and FPU
• Built-in Ruxin Micros self-developed 4th generation NPU
• Int8 computing power: 1TOPS
• Built-in self-developed third-generation ISP3.2 supporting 5 million pixels
• Image enhancement features: HDR, WDR, multi-level noise reduction
• Encoding performance: intelligent encoding with over 50% code rate savings
• Built-in 16-bit DRAM DDR3L
• Screen size: 4 inches
• Screen resolution: 720x720
• Display panel: IPS
• Touch type: Capacitive
• Touch chip: GT911
• Brightness: 400cd/m2
• Working temperature: -20 to 70 degrees Celsius
• Contrast ratio: 1000:1
• Viewing angle: 170 degrees
• Appearance size: 84.0 x 84.0 mm
• Display size: 0.0999 x 0.0999 mm
• Point spacing: 0.1497 x 0.1462 mm
• Color gamut: 68% NTSC
• Communication interfaces: MIPI CSI, RGB LCD, GPIO, UART, SPI, I2C, USB
