ToolkitRC ST8 Multi-Channel Servo Tester Signal Test Current Collector(Black)
ToolkitRC ST8 Multi-Channel Servo Tester Signal Test Current Collector(Black)
Estimated delivery: 12 Nov - 17 Nov (exact time at checkout)
Couldn't load pickup availability
Shipping Information
Shipping Information
FREE SHIPPING to UK & 40+ countries. Fully insured.
Delivery: Estimated times shown at checkout based on your location (typically 6-13 days total including 1-3 days handling)
No hidden fees on orders under £135 (orders over £135 may have import duties)
Ships from China via tracked DDP service. Order by 12 AM London time for next-day dispatch.
30-Day Money-Back Guarantee
30-Day Money-Back Guarantee
Return unused items within 30 days (you pay return shipping). Faulty items covered at no cost to you.
Right Part Guarantee
Right Part Guarantee
Get exactly what you ordered or your money back, including shipping. 30 days, no questions asked.
Hassle-Free Returns
Hassle-Free Returns
Start your return online in seconds. No forms, no hassle.
Trusted by 10,000+ repair professionals
★★★★★ 4.8/5 rating
1. 4-channel high-speed independent acquisition, data is not easy to lose
2. 8-channel simultaneous output, higher efficiency
3. Graphical data, real-time display of the current curve, data analysis
4. Programmable multiple signal sources: knob, key, internal and external signals can be used as signal sources to fit different measurement modes

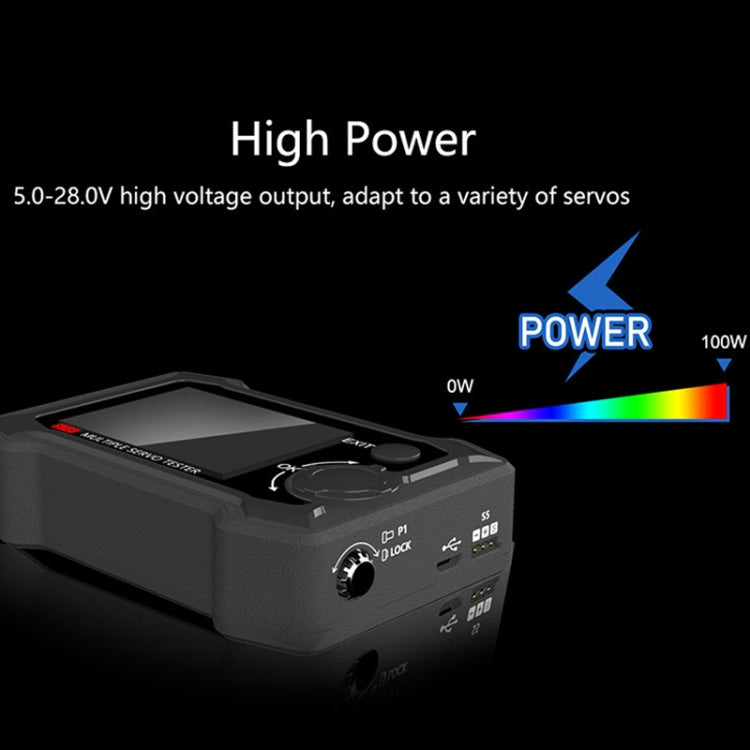

5. 5.0-28.0V high voltage output, suitable for a variety of servos
Parameters:
1. Input voltage: 7-28V MAX 10A
2. Main input port: 5.0V-28.0V MAX 10A
3. Signal port output voltage: 5.0-8.4V MAX 4A/S1-S4; 5.0-8.4V MAX 4A/S4 Ext
4. Output signal: 100us-2900us 33-1000Hz S1-S4; PWM 500us-2500us S5; PPM 8CH S5; SBUS 16CH S5
5. P1 knob range: 1000us-2000us P1
6. MicroUSB: firmware upgrade USB3.0
7. LCD display: 2.4-inch TFT RGB, 320 x 240 pixels
8. Size: 99 x 68 x 26mm
9. Weight: 140g
